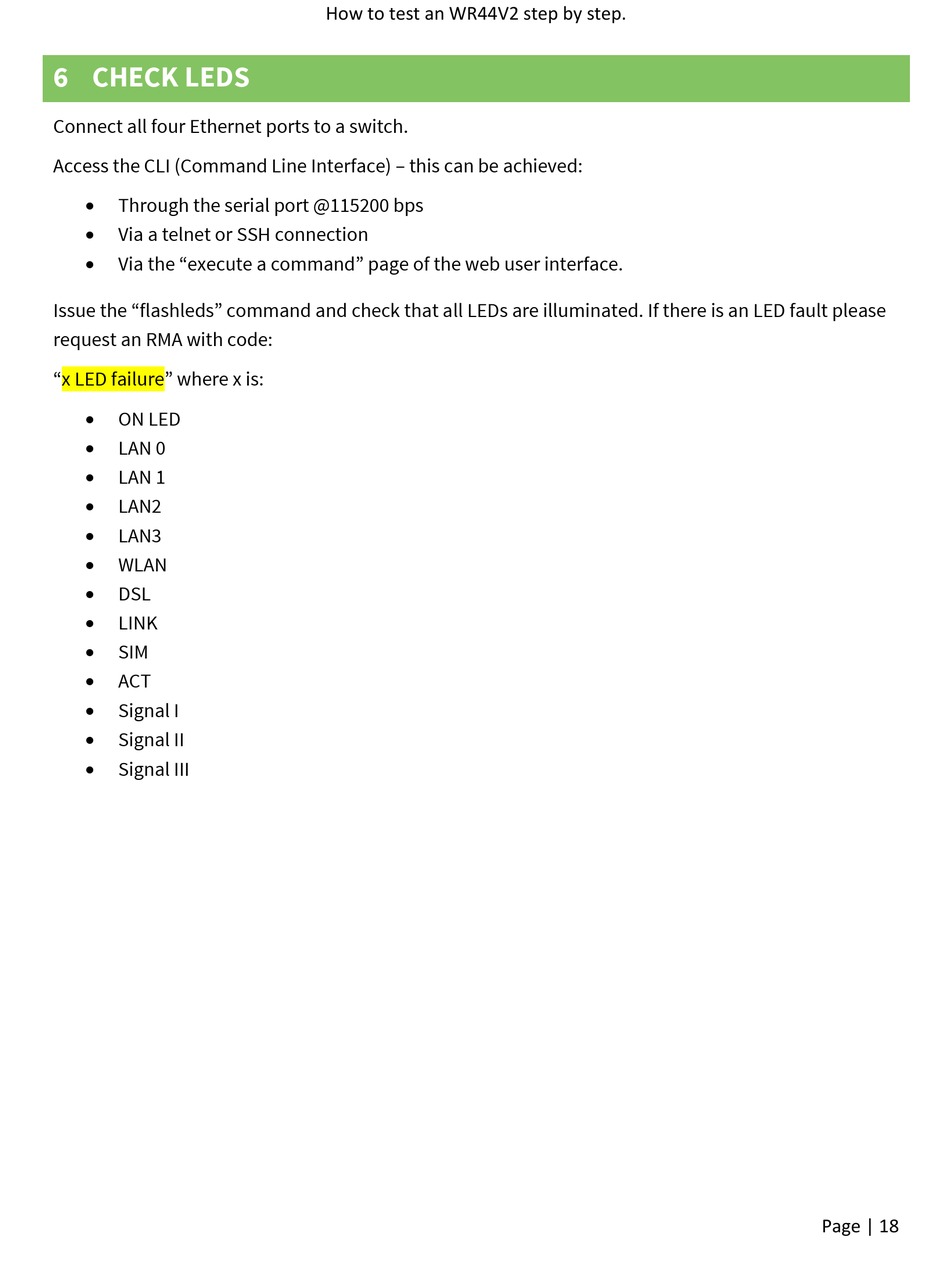

6 CHECK LEDS

Connect all four Ethernet ports to a switch.
Access the CLI (Command Line Interface) – this can be achieved:
 Through the serial port @115200 bps
 Via a telnet or SSH connection
 Via the "execute a command" page of the web user interface.
Issue the "flashleds" command and check that all LEDs are illuminated. If there is an LED fault please
request an RMA with code:
"x LED failure" where x is:
 ON LED
 LAN 0
 LAN 1
 LAN2

LAN3

WLAN

DSL
 LINK
 SIM
 ACT
 Signal I
 Signal II
 Signal III
