How to test a WR11 router step by step.
2.1.1 Diagram

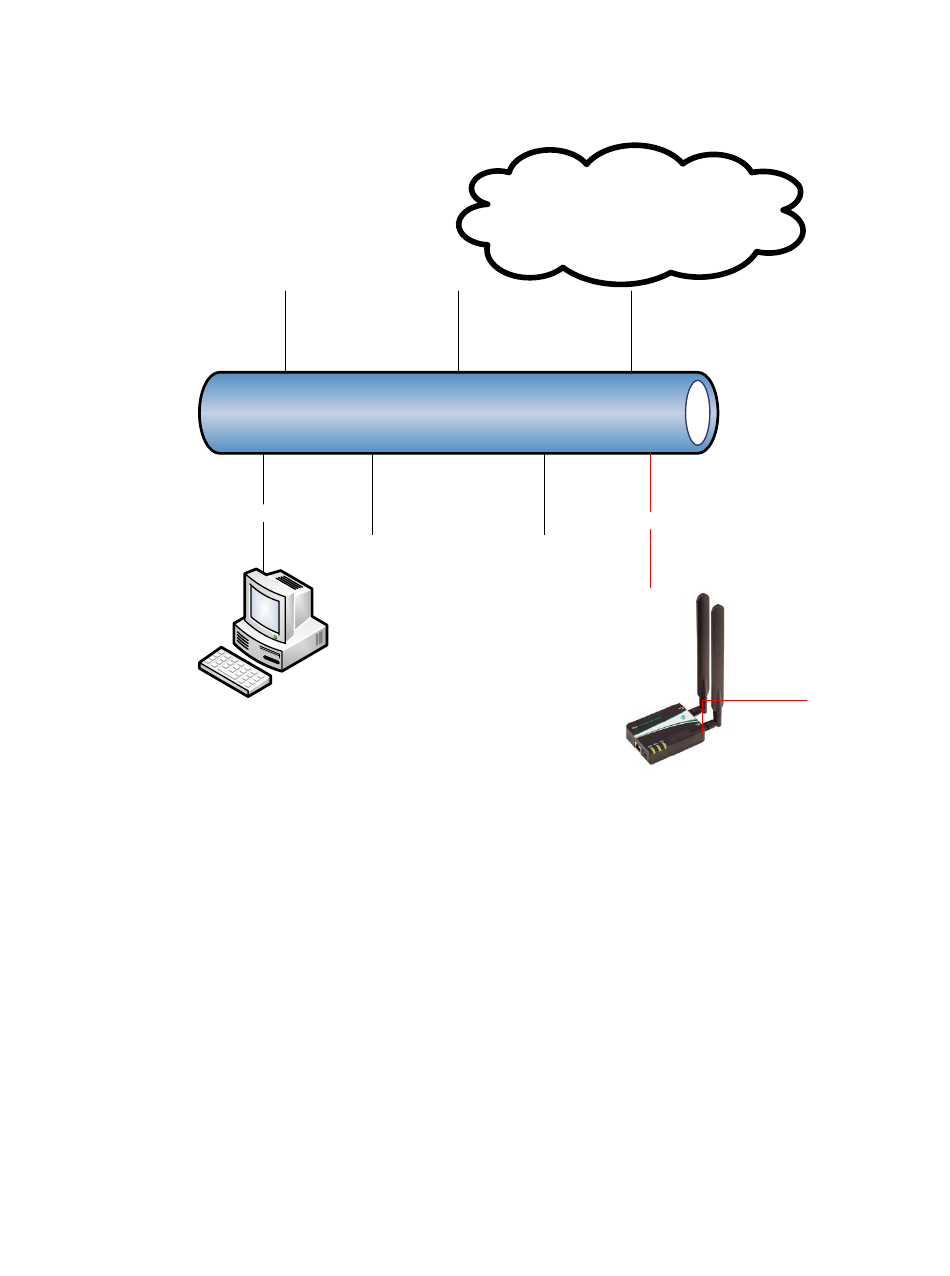

The following diagram represents how the equipment will be connected during the repair process:
Internet
Office Ethernet switch LAN
Ethernet
Ethernet
Reset
Button
PC running Microsoft Windows TM
WR11 with
broken boot
loader
The internet connection is not essential but may be useful during troubleshooting. It is essential that
the PC's Ethernet communication interface is configured correctly (e.g. it has an IP address)
Also note that the Ethernet switch/hub used must have spanning tree protocol disabled.
