Page 1: Installation Guide
T r a n s P o r t W R 4 1 ® Wireless Routers Installation Guide June 11, 2011... - Page 2 International assumes no liability for an end user’s failure to comply with these precautions. Digi International reserves the right to modify or revise all or part of this document, its contents, and any products described herein at any time without prior notification and shall not be responsible for any loss, cost or damage, including consequential damage, caused by reliance on these materials.
-
Page 3: Table Of Contents
TransPort ® WR41 Installation Guide Table of Contents 1 Package Contents 1 Package Contents ..................5 2 Introduction ....................6 TransPort WR41 2.1 Front Panel Features ..................7 Wireless Routers 2.2 Rear Panel Features ..................8 Installation Guide 2.3 Under Unit Features ..................9 TransPort WR41 2.4 Additional Hardware Features ................10... -
Page 4: Introduction

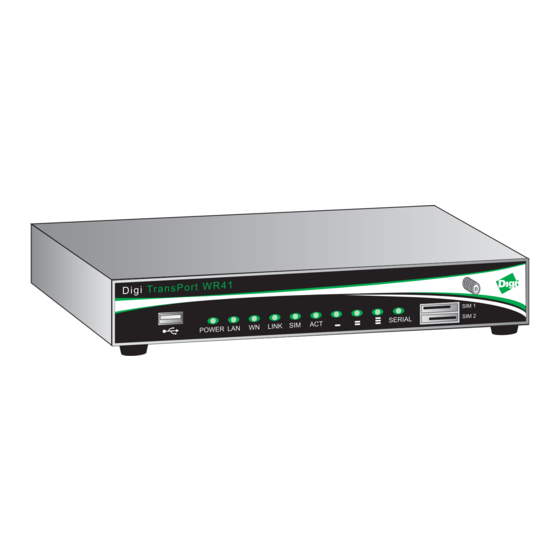

Digi TransPort WR routers are ideal for transportation and mobile applications. Flexible power options include AC, DC and 4-pin Molex connectors for direct integration into vehicle applications. Also available is the Digi a. Wi-Fi models: Illuminates steady if Wi-Fi activity is present. -
Page 5: Rear Panel Features
TransPort ® WR41 Installation Guide TransPort ® WR41 Installation Guide 2.3 Under Unit Features 16. SIM / R-UIM Sockets (SIM card models only) - SIM 1 and SIM 2 are for use with the Subscriber Identification Module(s) (SIMs) or Removable User Identification Module(s) (R-UIMs). 17. -
Page 6: Additional Hardware Features
2. ASY Serial Port (3x) - Provides three additional asynchronous RS232 serial ports using RJ45 connectors. The TransPort WR41 is available with various hardware options, as shown below: 3. SYN/ASYN Serial Port - Provides an X.21/RS422/RS232 synchronous / asynchronous serial port using a DB25 connector. -
Page 7: Installation
For added security, Digi offers a “SIM Slot Cover Plate” that can be installed on the unit to deter theft or The TransPort WR41 should be positioned on a flat, level surface or via a wall-mount, rackmount, or DIN rail tampering of the SIM cards, (see the Accessories section on page 21 for more information). -
Page 8: Configuration
TransPort ® WR41 Installation Guide TransPort ® WR41 Installation Guide 4 Configuration The Quick Start Wizard is located in the Getting Started section on the Home menu. Once the unit has been installed and powered up, it needs to be configured to communicate with the LAN and WAN. -
Page 9: Command Line Interface (Cli)
13 of the Installation section). Also, terminal emulation software (such as HyperTerminal) will be required. authenticates the modem and retrieves account information which is written to flash memory on the modem module itself, not the Digi’s configuration file. As the mobile account information is stored on the CDMA module, 4.3.1 CLI Notes performing a factory reset on the unit will not remove provisioning information from the CDMA module. -
Page 10: Troubleshooting
“straight through” RS232 serial cable. This will allow you to change the configuration via the Command Line Interface (CLI). Please refer to the Digi TransPort User Guide for information on how to use the CLI. The User Guide can be downloaded from the Digi Support site. If you have further questions about your product please contact Digi Technical Support (see page 2 for contact information). -
Page 11: Specifications
76000832 Mobile Certifications - CDMA/ CDG TIA/EIA-690, CDG TIA/EIA-98-E EV-DO SIM Slot Cover Plates Wireless Carrier Certifications Certified by most major carriers. See www.digi.com for current listing. Safety UL 60950, CSA 22.2 No. 60950, EN60950 10-pack 76000787 Emissions / Immunity... -
Page 12: Appendix A: Serial 0 Port Pin-Out Diagram
TransPort ® WR41 Installation Guide TransPort ® WR41 Installation Guide Appendix A: SERIAL 0 Port Pin-out Diagram Antennas - Cellular Direct Mount, Quad Band, 2dBi 76002050 Direct Mount, Penta Band, 2dBi 76002052 Direct Mount, Dual Band, 3dBi DC-ANT-DBDP3 Magnet Mount, Penta Band, 2.5dBi 76002051 WWAN WWAN... - Page 13 This product contains high quality materials and components which can be recycled. At the end of its life this Joel Young, VP, Engineering product MUST NOT be mixed with other commercial waste for disposal. Check with the terms and conditions of your supplier for disposal information. Digi International Ltd WEEE Registration number: WEE/HF1515VU Page 24 Page 25...
- Page 14 © 2011 Digi International Inc. All rights reserved. Digi, Digi International, the Digi logo, a Digi International Company, the Digi web site, Digi Remote Manager, Digi TransPort, Digi TransPort WR, and Digi TransPort WR41 are trademarks or registered trademarks of Digi International, Inc.
