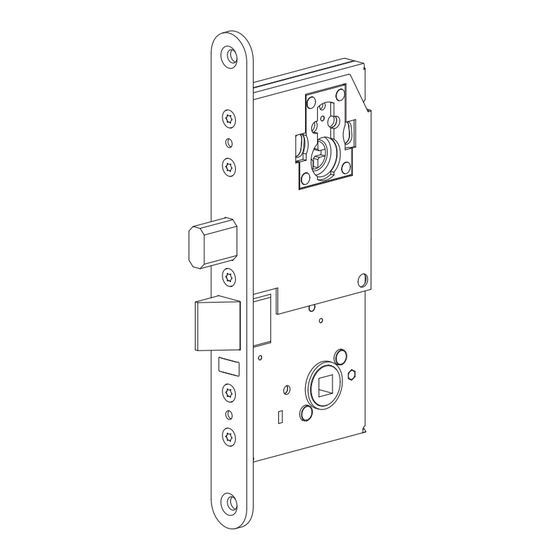

- Page 1 ABLOY EL574, EL575, EL577 ® – Motor lås, Motorlås, Motor lock, Ìîòîðíûé çàìîê ABLOY EL874, EL875 ® – Exit motor lås, Motorlås til Flugtvej, Exit motor lock, Ìîòîðíûé çàìîê äëÿ âûõîäà ASSA ABLOY An ASSA ABLOY Group brand...
- Page 2 SYLINDER- OG VRIDER MONTERING ÂÛÕÎÄÀ  ÑÎÎÒÂÅÒÑÒÂÈÈ Ñ EN 179 ........ 4 EL574, EL575 OG EL874 ............9 ÑÕÅÌÀ ÏÎÄÊËÞ×ÅÍÈß EL574, EL575, EL577 ....5 MONTERINGSANVISNING ..........9 – 11 ÑÕÅÌÀ ÏÎÄÊËÞ×ÅÍÈß EL874, EL875 ....... 6 ÑÕÅÌÀ ÑÂÅÐËÅÍÈß EL574, EL874 ........7...
- Page 3 Åpningstid Nødvridere: ASSA 179C (EL874) ASSA 179D (EL875) Justering af åbningstiden Adjustable delay Styreenheter: EA452 (EL574, EL575 OG EL577) EA453 (EL874, EL875, med mulighet Ðåãóëèðóåìàÿ çàäåðæêà for tilbakerømning **) Indikering utgångar Max. 0.8 A 30 VAC/VDC Tilleggsutstyr: Backupkort 952169 ***)
- Page 4 *) The monitoring output of manual use is used to give alarm, when Áëîê óïðàâëåíèÿ: EA452 (EL574, EL575, EL577) the lock is opened without electrical control (mechanical opening or EA453 (EL874, EL875, âêëþ÷àåò burglary). ôóíêöèþ ïîâòîðíîãî âõîäà **) **) When EA453 is delivered, re-entry is not in use. If re-entry is used, the connection between pins 17 and 18 is cut and re-entry Îòäåëüíûé...
- Page 9 EL574, EL575, EL874, EL875 Märkespunkter mot stolpe i CYLINDER / VRED MONTERING båda sidorna av låset. SYLINDER- OG VRIDERMONTERING CYLINDER/VRIDER Sylinderfallrør- merke skal stå INSTALLATION mot stolpen på begge sider av låsen. CYLINDER / THUMBTURN INSTALLATION Mærker skal vende mod ÓÑÒÀÍÎÂÊÀ...
- Page 10 EL574...
- Page 11 EL575...
- Page 12 Abloy Oy is one of the leading manufactures of locks, locking systems and architectural hardware and the word´s leading developer of products in the field of electromechanical locking technology. ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
