AC701 BIST

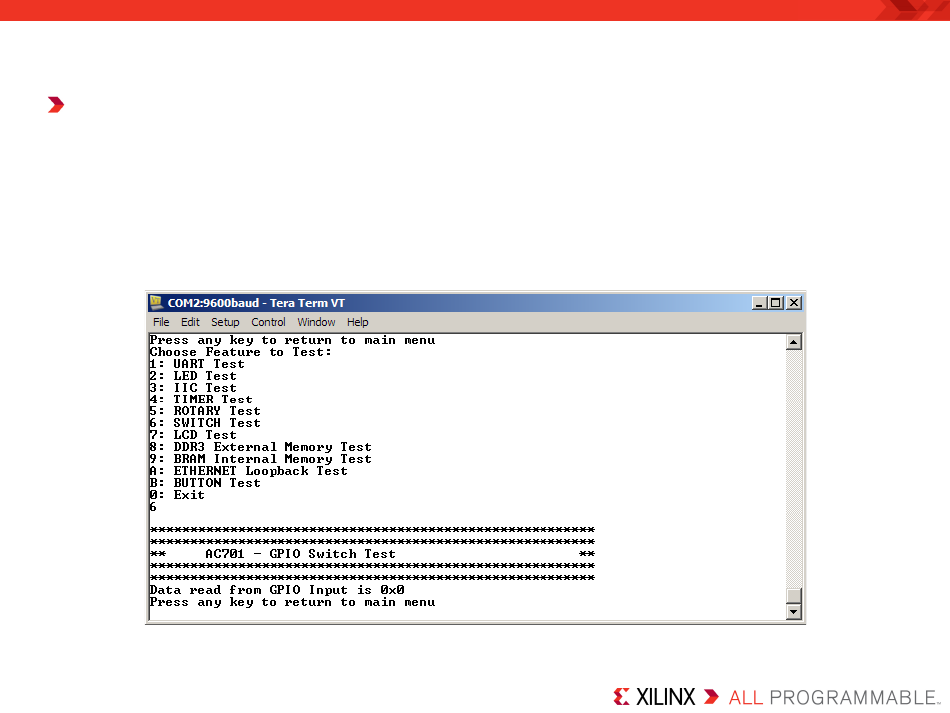

GPIO Switch Test
– Set 4-position GPIO DIP Switch (SW2)
– Type 6 to begin GPIO Switch Test
• Reads switch settings
Note: Presentation applies to the AC701
