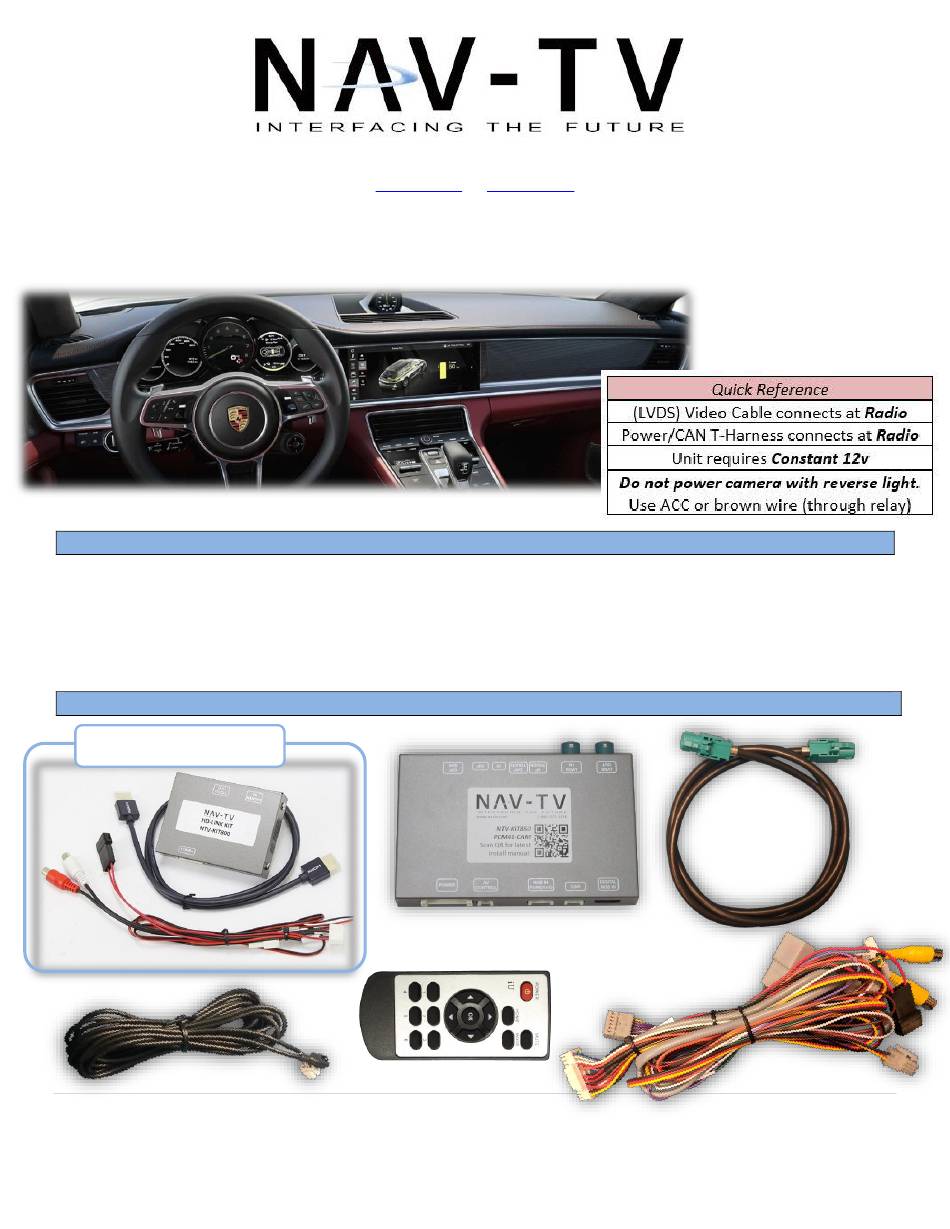

The PCM4.1-CAM Kit interfaces a backup camera input (with active parking lines) and 1 additional video input
(front cam, etc) to the factory media screen in the 2017 Porsche Panamera equipped with PCM4.1, 2017+
AUDI (new system with Virtual Cockpit, 8" screen) and 2017+ Golf (7.5 GEN, 9" screen only). Installation is
performed behind the radio (glove box). This interface will also enable Video in Motion, if desired.
HD-LINK Optional KIT800
Infrared Receiver
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger
entertainment only.
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
PCM41-CAM
NTV-KIT850
Overview
Kit Content

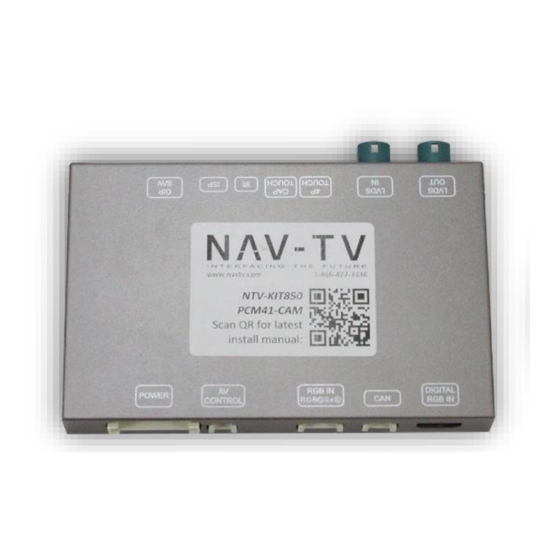

PCM4.1-CAM Interface
OSD Menu Remote
info@nav-tv.com
BHM
10/18/18
NTV-DOC307
A-Type
LVDS
Video
Cable
Power/CAN Harness
1 |
P a g e
Advertisement
Related Manuals for Nav TV PCM41-CAM
Summary of Contents for Nav TV PCM41-CAM
- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com PCM41-CAM NTV-KIT850 Overview The PCM4.1-CAM Kit interfaces a backup camera input (with active parking lines) and 1 additional video input (front cam, etc) to the factory media screen in the 2017 Porsche Panamera equipped with PCM4.1, 2017+ AUDI (new system with Virtual Cockpit, 8”...
- Page 2 10/18/18 NTV-DOC307 Interface Connectors Power/CAN Harness Expansion RGB Input CAN Conn HDMI Cable from Board HD-LINK (optional) Dip Switches IR Eye Video OUT Not Used Video IN (to screen) (from radio) Dip Switch Settings Dip SW: NORMAL KEEP UP OEM REAR KEEP UP KEEP DISABLE...
- Page 3 1. Remove the factory radio tuner, this requires dropping the glove-box. Disconnect any associated harnesses and set the radio aside. 2. Grab the provided Power/CAN Harness from the PCM41-CAM kit. Connect the following wires to the car radio’s main power plug:...
- Page 4 10/18/18 NTV-DOC307 5. Connect the provided 12-pin plug & play portion from the main power harness to the main factory quad-lock connector as shown below. Pay attention to the orientation, as this is vital to proper operation: Remove gray OEM 12-pin (use pick) Connect OEM 12-pin to provided 12-pin (female plug).
- Page 5 6. Connect the main power harness to the PCM41-CAM interface labeled POWER. 7. Conenct the 5-PIN (2 wires populated) connector from the main harness to the PCM41-CAM interface labeled CAN. NOTE: this MUST be connected, for reverse over CAN to function.
- Page 6 10/18/18 NTV-DOC307 PCM41-CAM Install Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 7 10/18/18 NTV-DOC307 PCM41-CAM Menu Adjustments Before you start: Select • The IR-Eye must be connected to the interface choice & • Make sure the car’s ignition is on and radio is on Return • You must be in Reverse Camera mode.
- Page 8 10/18/18 NTV-DOC307 Adding HD-LINK Adapter (HDMI Input) Follow the instructions below when adding the HDMI adapter (HD-LINK) to enable HDMI input to the OEM screen: 1. Put dip switch #1 in the DOWN position. 2. Activate the ‘NAV INPUT’ by holding the ‘NAV’ button (Porsche), Back Arrow steering wheel button (AUDI) or HOME button (VW) 3.
- Page 9 10/18/18 NTV-DOC307 PCM41-CAM Operation (Porsche) • Once all connections are made, placing the vehicle in reverse Press & hold will display the connected camera image on the screen. • If an AUX video source is connected to the secondary RCA (or...
- Page 10 10/18/18 NTV-DOC307 PCM41-CAM Operation (AUDI) • Once all connections are made, placing the vehicle in reverse will display the connected camera image on the screen. • If an AUX video source is connected to the secondary RCA (or HDMI was added), press and hold the back-arrow button on the steering wheel for 3 seconds to display this video source at any time.
- Page 11 10/18/18 NTV-DOC307 PCM41-CAM Operation (VW) • Once all connections are made, placing the vehicle in reverse Press & hold will display the connected camera image on the screen. • If an AUX video source is connected to the secondary RCA (or HDMI was added), press and hold the HOME button on the radio for 2 seconds to display this video source at any time.
