Nav TV BMW12-DYNAMIC KIT Install Manual

3950 NW 120
The BMW12 kit allows the user to add up to 3 video inputs and a backup camera input to the
factory media screen in select BMWs. This interface generates steering-based guidelines while
in reverse for added convenience. NOTE: 2017 year 'EVO' touch-screen monitors or 'CID'-
labeled monitors are NOT compatible with this interface.
AV Input Harness
Power/CAN Harness (non P&P)
Plug & Play T-Harness
:
Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
BMW12-DYNAMIC KIT
NTV-KIT462
Overview

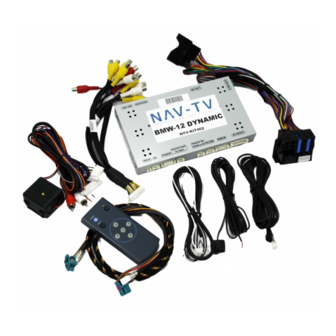

Kit Contents
BMW12 Interface
Plug & Play Kit ONLY
info@nav-tv.com
Remote
Power/CAN Harness
BHM
12/24/14
NTV-DOC143
rB6
LVDS Video cable
Input
IR Eye
Toggle
Harnes
Switch
s
1 | P a g e
