AMC UL1 Housing
Mounting the Housing
Open the housing cover lock with the provided key and remove
the hood from the wall mounted frame.
Mount the metal housing at the desired position with the screw
anchors provided with the enclosure.
Use the screws (position H of the accessories kit) at the points
to mount the housing against the wall.

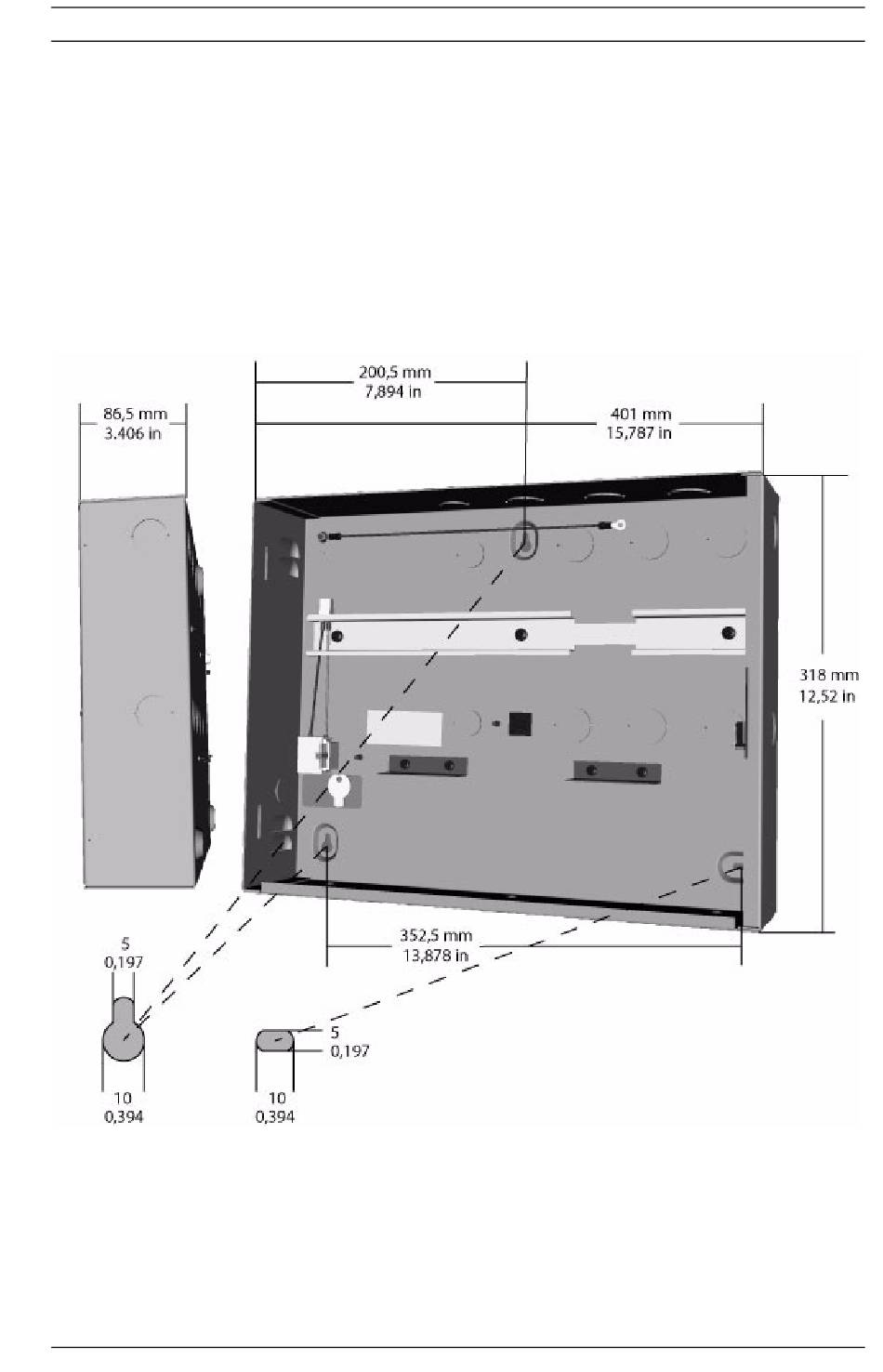

Figure 3 Demensions of the housing
Bosch Security Systems
Assembly Instruction
F.01U.024.980 | V.2 | 2006.08
| en 3
