AMC UL1 Housing
Included Parts
The metal housing inlcudes the following components:

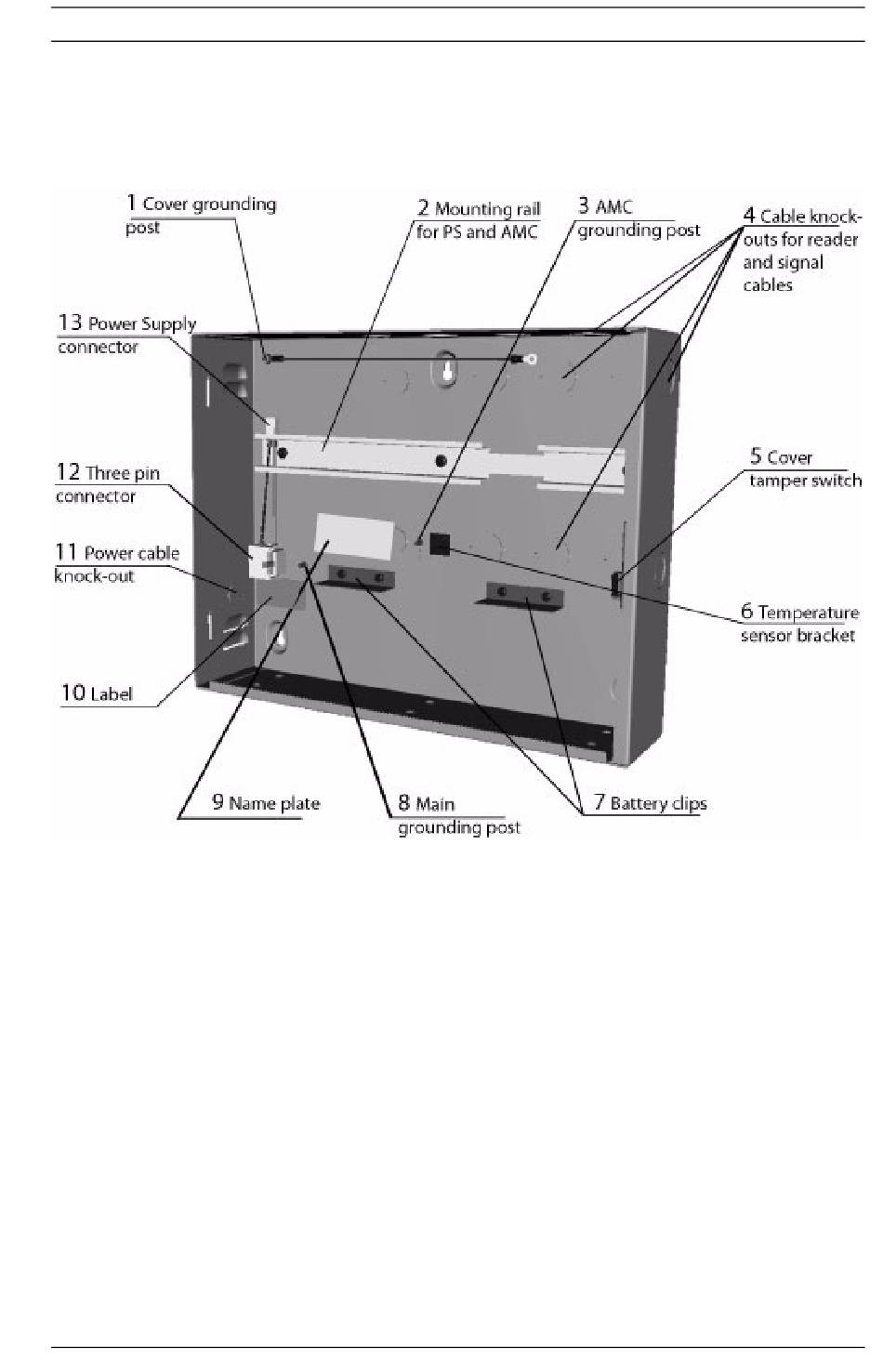

Figure 1 Parts of the housing
The accessories kit includes the following cables. Install these
cables as described in Section Connection of the Devices,
page 4.
Bosch Security Systems
Assembly Instruction
F.01U.024.980 | V.2 | 2006.08
| en 1
Advertisement
Related Manuals for Bosch AMC UL1
Summary of Contents for Bosch AMC UL1
- Page 1 AMC UL1 Housing | en 1 Included Parts The metal housing inlcudes the following components: Figure 1 Parts of the housing The accessories kit includes the following cables. Install these cables as described in Section Connection of the Devices, page 4.
- Page 2 2 en | AMC UL1 Housing Figure 2 Accessories kit content Content of the accessories kit: A = Pre-assembled cable to connect the AMC to the power sup- B = Pre-assembled cable to connect the batteries to the UPS (uninterruptable power supply) which is included in the power...
- Page 3 AMC UL1 Housing | en 3 Mounting the Housing Open the housing cover lock with the provided key and remove the hood from the wall mounted frame. Mount the metal housing at the desired position with the screw anchors provided with the enclosure.
- Page 4 4 en | AMC UL1 Housing Connection of the Devices Figure 4 Connection of the devices F.01U.024.980 | V.2 | 2006.08 Assembly Instruction Bosch Security Systems...
- Page 5 AMC UL1 Housing | en 5 NOTE! The following steps describe connecting the batteries in 24 V mode. For information on 12 V mode connections, refer to Section 12 V Mode Variations, page 7. Mount the AMC on the rail (item 2 in Figure 1) and left aside the power supply.
- Page 6 6 en | AMC UL1 Housing Route the cable across the temperature sensor bracket 6 so that the temperature sensor G2 hangs approximitely 5 cm (2 in.) above the batteries. Pre-assembled cable set 12: Connect the 2-pin plug 13 on the interface AC of the power supply.
- Page 7 AMC UL1 Housing | en 7 NOTE! Connect the readers and other peripheral devices as described in the AMC Installation Manual (P/N: F01U.028.713). Route the device cables through the knock-outs in the top an right side wall of the housing, or through the rear of the housing.
- Page 8 8 en | AMC UL1 Housing The 12 V mode can be configured using one or two batteries. For a one-battery installation, refer to Figure 5.1, and perform the following procedure: Connect B1 to the power supply position labbeled BAT.
