2 en |

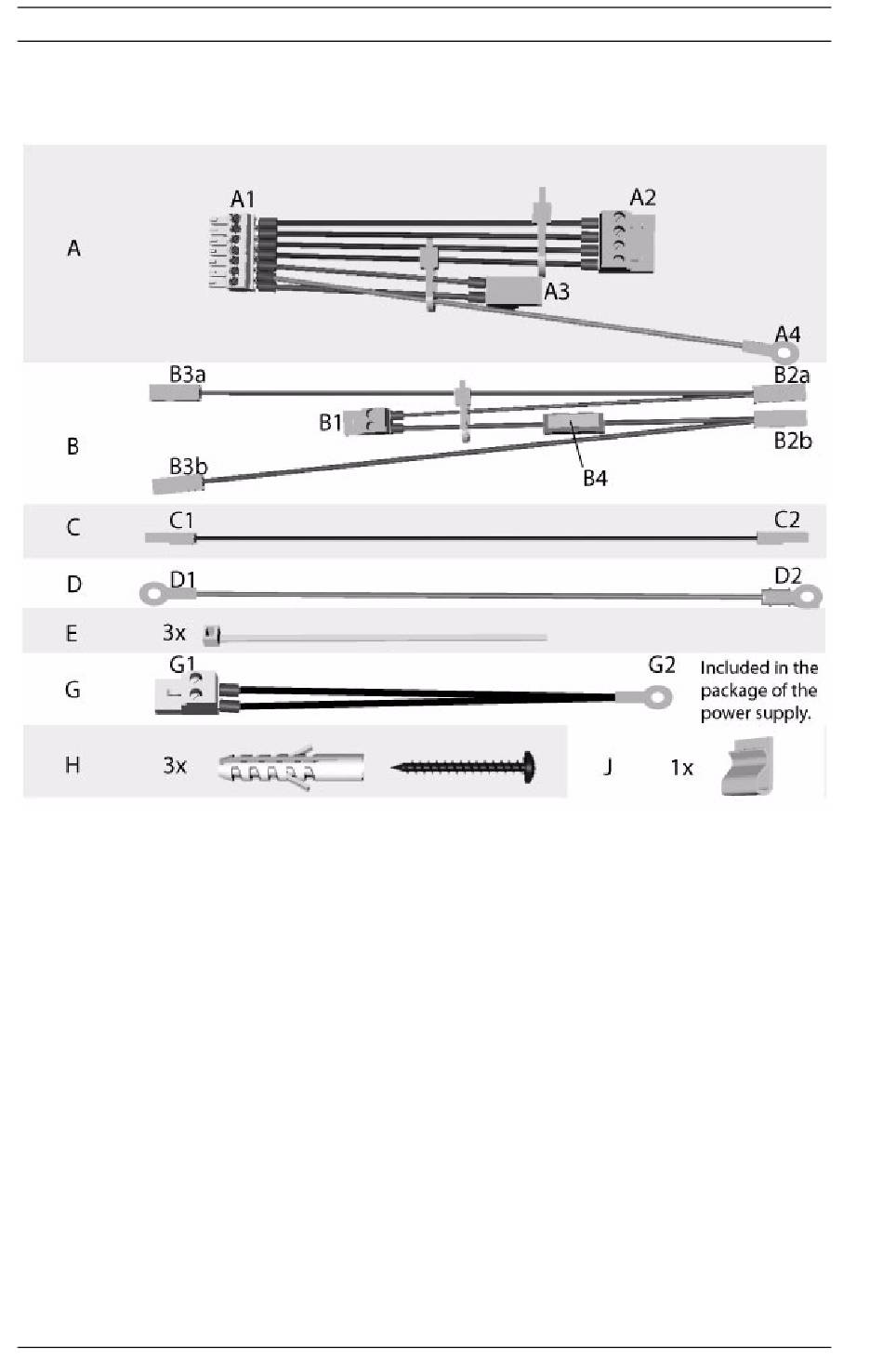

Figure 2 Accessories kit content
Content of the accessories kit:
A = Pre-assembled cable to connect the AMC to the power sup-
ply
B = Pre-assembled cable to connect the batteries to the UPS
(uninterruptable power supply) which is included in the power
supply
C = Cable using 24 V mode
D = Grounding cable for the cover
E = Cable ties to secure the pre-assembled cable
G = Pre-assembled cable with temperature sensor
H = Three screw anchors S8 and wood screws M6 x 50
J = Bracket for cable fixing
F.01U.024.980 | V.2 | 2006.08 Assembly Instruction
AMC UL1 Housing
Bosch Security Systems
