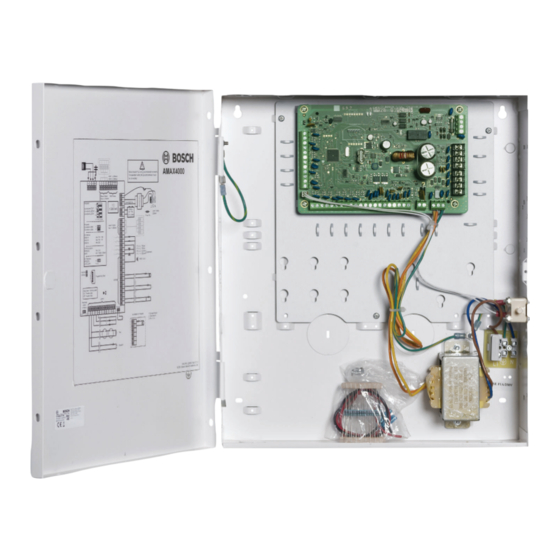

AMAX panel
AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000
en
Quick Installation Guide

Advertisement

   Also See for Bosch AMAX panel 2100

   Summary of Contents for Bosch AMAX panel 2100

  • Page 1

    AMAX panel AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000 Quick Installation Guide...

  • Page 3: Table Of Contents

    Enabling the RF Receiver for Wireless Communication 5.4.5 Setting up a Zone for an RF Device Connecting the AMAX panel to a PC 5.5.1 Prerequisites for connecting 5.5.2 Setting up a connection Technical data Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 4: Safety

    Only use a non-spillable battery. – Place a label with the last replacement date on the battery. – Under normal conditions of use, replace the battery every 3-5 years. 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 5

    It is recommended to test the system once a week. – Make sure to get the system maintained four times a year. – Only qualified installers /service personnel are allowed to maintain this system. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 6: Short Information

    For detailed information on installation of modules and devices, advanced settings and programming, refer to the AMAX Installation Manual. For information on operating the AMAX panel, refer to the AMAX Operation Manual. 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 7: System Overview

    B450 DX3010 B426 DX4010V2 (B442/B443) DX4020G GSM/ GPRS PSTN Public GPRS IP network Ethernet AMAX SDK A-Link Plus Telephone Video Signaling Figure 3.2: AMAX 3000 BE / 4000 overview Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 8

    | System overview AMAX panel Wiring diagrams ≤ 500mA / B450 Figure 3.3: Wiring diagram AMAX 2100 / 3000 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 9

    On: Trouble state Off: Trouble state PO-5 1 Tamper Switch 2 Zone Switch 3 EOL 2,2 k 4 NO + NC Figure 3.4: Wiring diagram AMAX 3000 BE / 4000 Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 10: Connecting Modules And Devices

    AMAX panel Connecting Modules and Devices The AMAX panel provides Bosch option bus 1 and option bus 2 (only for AMAX 3000 BE and AMAX 4000) to connect modules and devices. Each module can be connected to each bus. A maximum of 14 modules (8 keypads) can be connected to each bus.

  • Page 11: Programming And Operating The Amax Panel

    Selecting a Menu Select the menu and operate according to the menu prompt. Press [▼] or [▲] to navigate to the desired menu. Press [#] to enter a menu. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 12: Programming The Amax Panel With A Text Keypad

    Programming the AMAX panel with a text keypad 5.4.1 Installer menu The following graphics show an overview of the installer menu structure displayed on a text keypad. 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 13

    28=+8:30, 29=+9:00, 30=+9:30, 31=+10:00, 32=+11:00, 33=+12:00, 34=+13:00, 35=+14:00 0-disable 1-enable LOCAL TIME SYNC EN NETW. POLLING: min ACK WAIT TIME: sec 05 - 99 seconds Figure 5.1: Communications and Reporting Manager Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 14

    NET. ACC. P NA 0-99 ASCII printable characters NET. P USR NA 0-99 ASCII printable characters NET. ACC. P PWD 0-99 ASCII printable characters Figure 5.2: Communications and Reporting Manager (continued) 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 15

    FORCE CODE CHANGE 0-disable 1-enable EN=0 MACRO CONFIG INPUT MACRO (1-3) LEVEL 1 ACCESS 0-disable 1-enable REC T.OUT:1-80sec PAUSE T:100ms 1-15 CODE INSIDE MACRO 0-disable 1-enable Figure 5.4: Code Manager Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 16

    00 = disabled 01 - 09 Pulses EN=0 0-disabled ZONE LOCKOUT 1-1 time al. lock 2-3 time al. lock EN=0 3-6 time al. lock 4-alarm duration Figure 5.5: Zone Manager 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 17

    0-disable 1-enable TROUBLE DOM EN DETECT. T. x100ms PULSE COUNT DURAT. 000 = disabled 1 - 999 sec = Duration EN=0 CROSS ZONE TIMER Figure 5.6: Zone Manager (continued) Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 18

    00-99, 00=always KEYPAD LOCKOUT FOLLOW EN STANDARD 0-disable 1-enable EN=1? KEYPAD LOCK COUNT 0-15, only valid when "FOLLOW EN STANDARD" is disabled EN=10? Figure 5.7: Keypad and Area Manager 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 19

    VOICE MEM. DEFAULT DEFAULT VOICE NO SYSTEM VIEW FAULT ANALYSIS FW VERSION DEFAULT PANEL YES FACTORY DEFAULT DEFAULT PANEL NO PAD DEFAULT OPTION 0-disable 1-enable Figure 5.8: System Manager Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 20

    SIREN SETTINGS SIREN TIME: min Master Timer for Outputs SIREN BEEP ENABLE 0-disable 1-enable INT SIREN INDIC ON 0-disable 1-enable SIREN OFF ANY KEY 0-disable 1-enable Figure 5.9: Output Manager 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 21: Setting Date And Time

    The system displays the next menu item: ZONE MODULE SEL. Select the correct zone module (default is 0-on board zone) and press [#]. The system displays the next menu item: ZONE FUNCTION. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 22: Enabling The Rf Receiver For Wireless Communication

    12. Press [–] four times to get to the EXIT PROG. +SAVE menu. 13. Press [#] to save the data end exit the programming mode. The selected zone is set up for an RF device. 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 23: Connecting The Amax Panel To A Pc

    USB port of your PC. In A-Link Plus, select the Link tab. Under Communication Model, select Direct Connect. Click Connect. The AMAX panel is now connected to the PC. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 24: Technical Data

    Aux 1 / 2 output Aux 1 / 2 output voltage +12V / GND Aux 1 / 2 nominal output voltage 13.8 (+3% / -5%) under AC line input in VDC 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 25

    Option bus 2 maximum current in mA Battery Battery type 12 V / 7 Ah 12 V / 7Ah / 12 V / 18 Ah Bosch D 126 Bosch IPS-BAT12V-18AH Low battery condition in VDC below 11.0 Minimum battery condition in 10.8...

  • Page 26

    DSRF = 24, RADION = 128 Zones Zone 1 Single or dual end-of-line 2 wire fire zone, single, or (EOL 2,2KΩ) dual end-of-line (EOL 2,2KΩ) NC, NO NC, NO 2016.05 | 06 | F.01U.309.297 Quick Installation Guide Bosch Sicherheitssysteme GmbH...

  • Page 27

    EN 60950-1:2006 + A11:2009 EN 50131-3 grade 2 Environmental class II France AFNOR NF a2P 1223400001 NF a2P 1223400002 Environmental class I Belgium INCERT (only for AMAX 3000 BE) B-509-0063 Germany Home Bosch Sicherheitssysteme GmbH Quick Installation Guide 2016.05 | 06 | F.01U.309.297...

  • Page 30

    Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2016...
