AMC UL1 Housing
NOTE!
Connect the readers and other peripheral devices as described
i
in the AMC Installation Manual (P/N: F01U.028.713). Route the
device cables through the knock-outs in the top an right side
wall of the housing, or through the rear of the housing.
10. Cable D:
11. Install the fuse.
12. Close the cover.

12 V Mode Variations

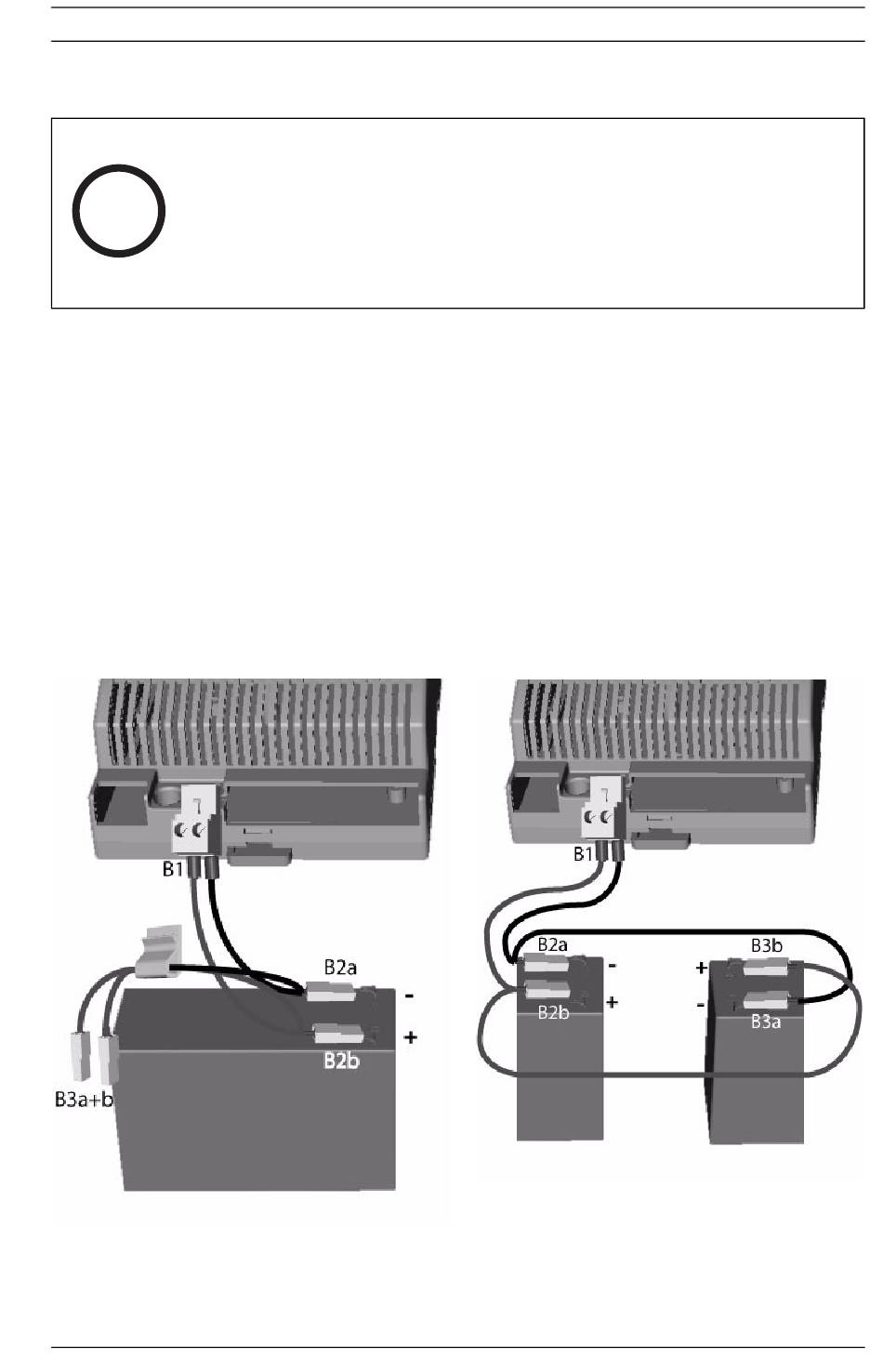

Figure 5.1 + 2 12 V mode with one and two batteries
Bosch Security Systems
If this cable is not pre-installed on grounding point 1, use
the cable D from the accessories kit.
a. Connect D1 to grounding post 1.
b. Connect D2 to the grounding post on the cover.
Assembly Instruction F.01U.024.980 | V.2 | 2006.08
| en 7
