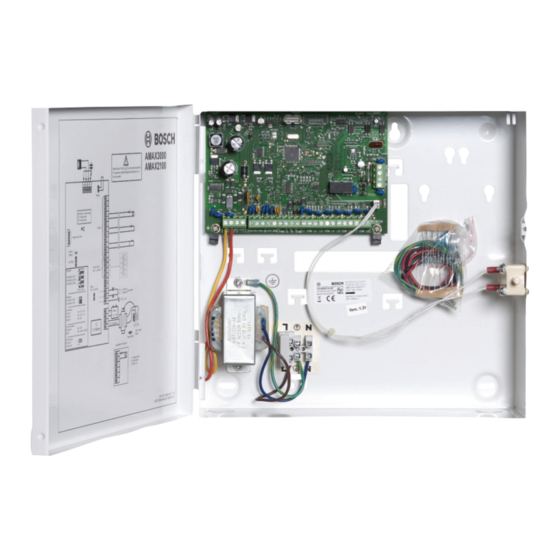

AMAX panel
AMAX panel 2100 | AMAX panel 3000 | AMAX panel
3000 BE | AMAX panel 4000
en
Operation Manual

Advertisement

Table of Contents

   Summary of Contents for Bosch amax 2100

  • Page 1 AMAX panel AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000 Operation Manual...
  • Page 3: Table Of Contents

    How to bypass/unbypass a zone via LED/LCD keypad 7.1.3 How to view bypassed zones Bypassing faults or tamper conditions Isolating zones 7.3.1 How to isolate/unisolate a zone via text keypad 7.3.2 How to isolate/unisolate a zone via LED/LCD keypad Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 4 How to select dialer event log recall mode Faults and tamper conditions 14.1 System fault or tamper analysis mode via text keypad 14.2 System fault or tamper analysis mode via LED/LCD keypad Resetting the control panel Troubleshooting 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 5: Safety

    – Always handle the system carefully. – Never open or modify the system. – Please contact your installer if you want to get your system modified. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 6: Short Information

    GSM1800 Class 1 (1W) - GPRS Class 33 UMTS2100 Class 3 (0.25W) Keypads The following text keypad can be used for operating AMAX panel 2100 / 3000 / 3000 BE / 4000. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 7 AMAX panel Short information | en IUI-AMAX4-TEXT The following LED/LCD keypads can be used for operating AMAX panel 2100 / 3000 / 3000 BE / 4000. IUI-AMAX3-LED8 IUI-AMAX3-LED16 Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 8: Keypad Indicators

    All keypad types Keypad Status Definition Indicator Icons Area is armed in AWAY mode. Area is not armed in AWAY AWAY mode. Slow flash (1 second Exit time. lights on/1 second lights off) 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 9 AWAY indicator flashes simultaneously. When bypass function is performed, only the STAY indicator flashes. One or more areas but not all are in STAY mode (master keypad) AC main power is normal. MAINS Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 10 All icons Flashing No communication to the keypad. Only for LED/LCD Keypad Status Definition Indicator Icons Zone is triggered. Zone is normal. 1 2 3 …. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 11 A keypad button has been pressed. Short beep, followed by a The requested operation is refused. one-second beep Incorrect operation signal. Two short beeps The system accepted the code. The system executed the requested function. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 12: Quick Keypad Operations Instructions

    [code] + [#] / [#] for 3 sec. √ √ √ √ √ √ √ (quick arm) AWAY Arm All [code] + [0] [0] + [#] √ √ √ √ √ √ √ Areas (only on master keypad) 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 13 Disarm All Areas [code] + [#] √ √ √ √ √ √ (only on master keypad) Display Display Info [code] + [2] [1] + [#] √ √ √ √ (Fault/Tamper Analysis) Bypass/Isolate Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 14 Macros Record Macro 1 [code] + [8] [1] + [#] + √ √ √ √ sequence to be recorded + [#] for 3 sec. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 15 [code] + [0] [0] [0] + [#] √ √ √ √ Keypad (only on text keypad) Switch to Area [code] + [0] [2-digit area √ √ √ √ 01-16 no.] + [#] (only on text keypad) Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 16 √ √ √ Code Change Individual [code] + [5] [5] + [#] √ √ √ √ √ √ √ Code Call Back [code] + [5] [7] + [#] √ √ √ √ 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 17: User Menu

    * This function can be enabled/disabled individually for every user. For further information on codes, refer to Add/change user codes, page 36. User menu The following table shows an overview of the user menu. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 18 INITIATE CALL BACK CHANGE LANGUAGE MACRO START INPUT MACRO No 1-3 RECORD :END # 3s START PLAY SCHEDULE ENABLE DATE/TIME CHANGE DATE / TIME DST OPTIONS INSTALLER ACCESS ENABLE INSTALLER DISABLE INSTALLER 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 19: Arming And Disarming Areas

    After the exit time, the AWAY indicator is lit. To enable/disable this function contact your installer. Master keypad arming With a master keypad, either all areas or a single area can be armed in AWAY mode. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 20 The control panel answers the call and issues a long beep. Press [#]. When the panel receives the signal it confirms the arming of the control panel with a high tone. To enable/disable this function contact your installer. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 21: Arming In Stay Mode

    Press and hold [*] until the system beeps twice. The STAY indicator flashes slowly and exit time starts. After the exit time, the STAY indicator is lit. To enable/disable this function contact your installer. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 22 RADION RF keyfob arming Users can use a RADION RF four button keyfob to arm an area via the third button. Press the third button of the RADION RF four button keyfob. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 23: Forced Arming

    [#]. The system beeps twice and the AWAY or STAY indicator is extinguished. The selected area is disarmed. Repeat if you want to disarm multiple single areas. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 24: Disarming With Key Switch

    Disarming with RADION RF keyfob Press the disarming button of the RADION RF keyfob. The area is disarmed and the AWAY or STAY indicator is extinguished. To enable/disable this function contact your installer. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 25: Changing The Menu Language

    Enter your code + [5] [8] and press [#]. The available menu languages are displayed. Enter the two-digit number for the desired language. Press [#]. The system beeps twice and the menu language is changed. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 26: Changing Date, Time And Daylight Saving Time

    Select the week day and press [#]. Select STOP DST to determine when the daylight saving time setting should stop, repeat steps 7 to 9 and press [#]. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 27 AMAX panel Changing date, time and daylight saving time | en Press [-] three times to exit. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 28: System Test

    Unseal and seal the zones to be tested. The system beeps. The siren beeps once each time a zone status is changed. How to exit walk test mode Enter your code + [4] [3] and press [#]. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 29: Bypassing/isolating

    Enter the zone number you want to bypass/unbypass. Press [*]. The system beeps twice. The corresponding number indicator is lit/extinguished. Repeat step 2 if you want to bypass/unbypass multiple zones. Press [#] to exit. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 30: How To View Bypassed Zones

    Enter your code + [3] [5] and press [#]. The STAY indicator flashes slowly. The slowly flashing number indicators show the isolated zones. If no numbers are lit, no zones are isolated yet. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 31: How To View Isolated Zones

    Enter your code + [3] [6] and press [#]. The system beeps twice and the isolated zones are displayed. Use [▲] and [▼] to display all isolated zones. Press [#] to exit. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 32: Schedules

    Use [▲] and [▼] to display all schedules. Enter the schedule number you wish to activate/deactivate. The selected schedule is checked/unchecked. Repeat step 6 if you want to activate/deactivate multiple schedules. Press [#]. Press [-] twice to exit. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 33: Macros

    This can be useful if you want to bypass zone 3 on a regular basis. In this example there are no bypassed zones yet. Enter your code + [8] [1]. Press [#]. The system beeps twice. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 34: Playing Macros

    To enable/disable this function contact your installer. Notice! Please note that the play function has to be enabled/disabled individually for every user. Please refer to Add/change user codes, page 36. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 35 The system beeps and the macro 1 is executed automatically. If zone 3 was unbypassed before playing macro 1, it is bypassed now. If zone 3 was bypassed before playing macro 1, it is unbypassed now. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 36: Codes

    0-Master1 code 1-Master2 code 2-Super code 3-Basic code 4-Arming code 5-Duress code 6-Not used Please refer to Quick keypad operations instructions, page 12 for a description of the user permission levels. Press [#]. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 37 The keyfob ID will be entered automatically. 15. Press [#]. 16. Optionally select the keyfob button 3 function. 17. Press [#]. The system beeps twice. The new user code is added/ changed. Press [-] twice to exit. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 38: Change Individual Code

    Press [#]. The system beeps twice and the STAY and AWAY indicators stop flashing. The user code is changed. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 39: Keypad Alarm Operation Commands

    To enable/disable this function contact your installer. 11.3 Keypad medical alarm Press and hold [7] + [9] for three seconds. A silent keypad medical alarm is transmitted. To enable/disable this function contact your installer. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 40: Domestic Dialing

    45 seconds if it can not detect the acknowledgement tone and redial later. Press any button between two acknowledgement tones to confirm the alarm. The system beeps for two seconds and closes the line. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 41: Event Log Recall Mode

    Enter your code + [2] [4] and press [#]. The system beeps twice and dialer events are displayed. Use [▲] and [▼] to display all dialer event logs. Press [#] to exit. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 42: Faults And Tamper Conditions

    The consecutively lit number indicators correspond to fault or tamper types. Example: 2 – 1, which indicates a panel AC failure. If necessary press [0] to return to step 2. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 43 Printer failure Module DX4010 missing Printer missing Printer fault RF receiver failure RF receiver 1 fault RF receiver 1 missing RF receiver 1 jammed RF sensor failure RF sensor missing* RF sensor fault* Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 44 1 - 2 Panel Aux power 1 – 2 fault Bosch option bus power failure 1 - 2 Bosch option bus 1 – 2 power fault RF repeater AC power failure 1 - 8 RF repeater 1 – 8 AC power fault RF repeater battery failure 1 –...
  • Page 45 Zone type tamper 1 – 16 Zone type 1 – 16 tamper Keypad Lock out Keypad Lock out RF receiver tamper RF receiver tamper RF repeater tamper 1 – 8 RF repeater tamper Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 46 AMAX panel External failure 1 - 16 External fault zone 1 - 16 Table 14.1: Types of fault or tamper conditions * In case one or more faults occur in this category 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 47: Resetting The Control Panel

    You can only reset alarms, faults or tamper conditions when they are not active anymore. How to reset the control panel Enter your code + [6] [#]. The system beeps twice and the signal is eliminated. Bosch Sicherheitssysteme GmbH 2017.04 | 07 | F.01U.295.569...
  • Page 48: Troubleshooting

    | Troubleshooting AMAX panel Troubleshooting Please contact your installer in case of problems or any unexpected behavior of the system. 2017.04 | 07 | F.01U.295.569 Bosch Sicherheitssysteme GmbH...
  • Page 52 Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2017...
