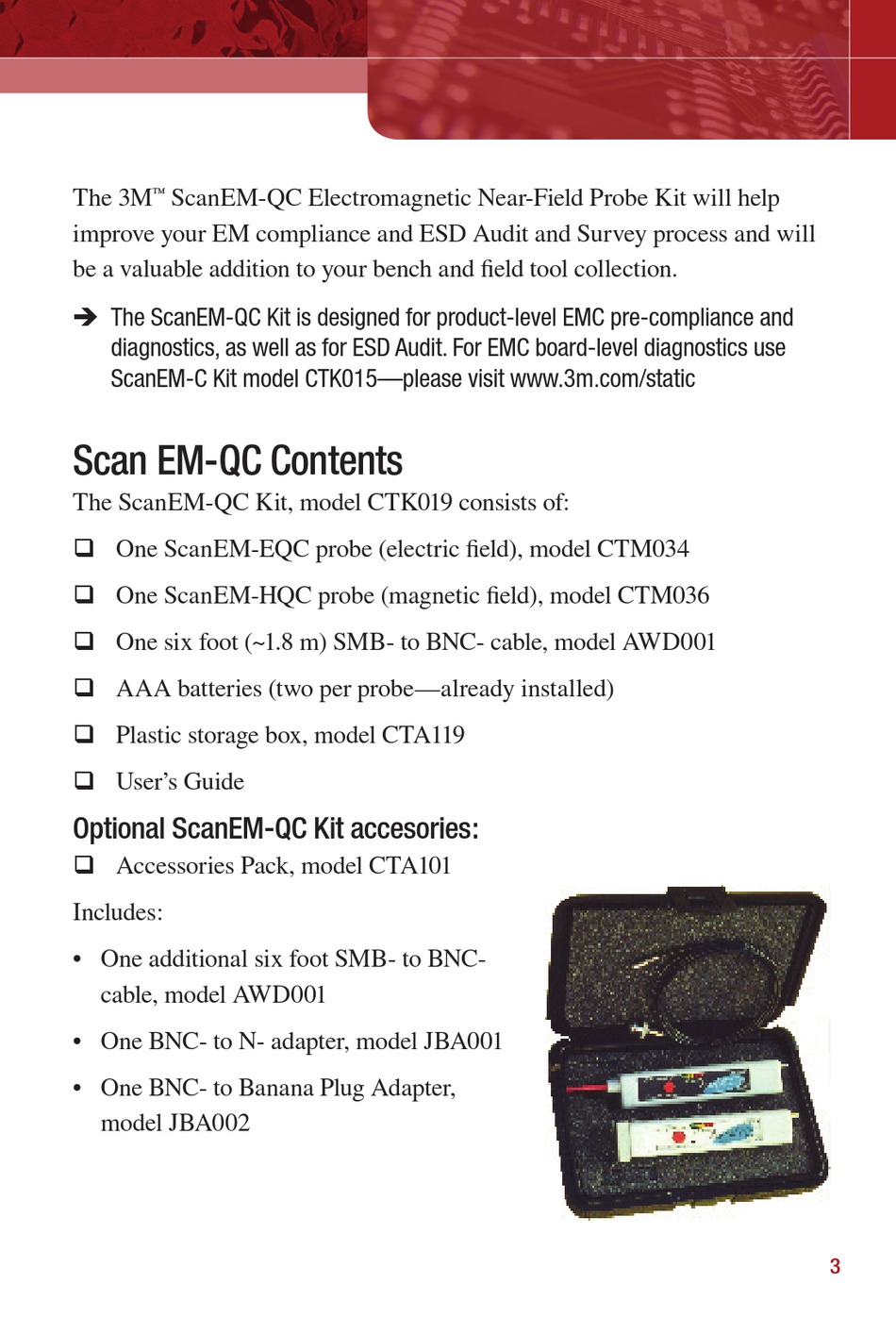

3M ScanEM-QC CTK019 User Manual page 3

The 3M ScanEM-QC Electromagnetic Near-Field Probe Kit will help
™
improve your EM compliance and ESD Audit and Survey process and will
be a valuable addition to your bench and field tool collection.
Î The ScanEM-QC Kit is designed for product-level EMC pre-compliance and
diagnostics, as well as for ESD Audit. For EMC board-level diagnostics use
ScanEM-C Kit model CTK015—please visit www.3m.com/static
Scan EM-QC Contents
The ScanEM-QC Kit, model CTK019 consists of:
‰ One ScanEM-EQC probe (electric field), model CTM034
‰ One ScanEM-HQC probe (magnetic field), model CTM036
‰ One six foot (~1.8 m) SMB- to BNC- cable, model AWD001
‰ AAA batteries (two per probe—already installed)
‰ Plastic storage box, model CTA119
‰ User's Guide
Optional ScanEM-QC Kit accesories:
‰ Accessories Pack, model CTA101
Includes:
• One additional six foot SMB- to BNC-
cable, model AWD001
• One BNC- to N- adapter, model JBA001
• One BNC- to Banana Plug Adapter,
model JBA002
