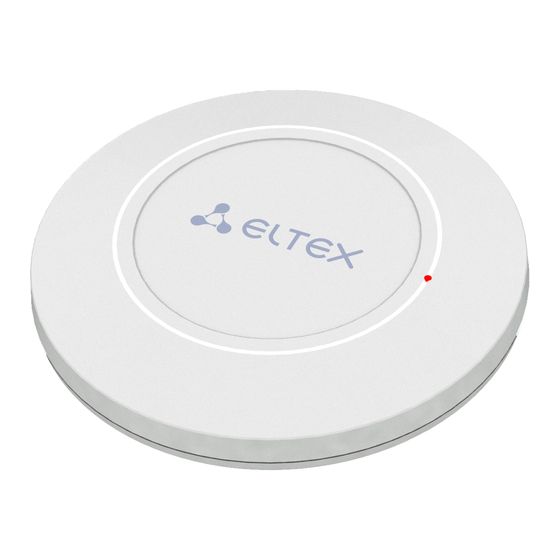

- Page 1 Wireless access point WEP-2ac, WEP-2ac Smart, WEP-2ac-Z User manual Firmware version 1.21.1 IP address: 192.168.1.10 Username: admin Password: password...
-
Page 2: Table Of Contents
Installation order ........................10 Safety rules..........................10 Installation recommendations....................10 Calculating the number of required access points ..............10 Channel selection for neighboring access points..............11 WEP-2ac, WEP-2ac Smart and WEP-2ac-Z installation ............12 3.5.1 Wall mounting ........................12 3.5.2 Installing to false ceiling ..................... 13 3.5.3... -
Page 3: Introduction
WEP-2ac, WEP-2ac Smart and WEP-2ac-Z are Wi-Fi access points of the Enterprise class. The devices are dedicated to be installed inside buildings as access points and to create a seamless wireless network using several identical access points (Roaming) on a large area. -
Page 4: Device Description
The device is dedicated to create L2 wireless networks interfacing with a wired network. WEP-2ac, WEP-2ac Smart and WEP-2ac-Z are connected to a wired network via 10/100/1000M Ethernet interface and arrange high-speed access to the Internet for devices supporting Wi-Fi technology at 2.4 and 5 GHz. -
Page 5: Device Technical Parameters
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual • organizing a cluster with capacity of up to 64 access points; • auto synchronization of access point configurations in a cluster; • auto update of access points firmware in a cluster; •... - Page 6 WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual WAN Ethernet interface parameters Number of ports Electrical connector RJ-45 Data rate, Mbps 10/100/1000, autonegotiation Standards BASE-T Wireless interface parameters Standards 802.11a/b/g/n/ac Frequency range, MHz 2400–2483,5 MHz, 5150–5850 MHz Modulation CCK, BPSK, QPSK, 16QAM, 64QAM, 256QAM Operating channels 802.11b/g/n: 1-13 (2412–2472 MHz)
- Page 7 WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual WEP-2ac dimensions 200х40 mm WEP-2ac Smart dimensions 200х43 mm Weight 0,4 kg ¹Defined by Transmit Power Limit and Transmit Power Control regulators...
-
Page 8: Design
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual 2.4 Design WEP-2ac, WEP-2ac Smart and WEP-2ac-Z are housed in a plastic case. 2.4.1 Device main panel The main panel layout of the device is depicted in Fig. 2. Figure 2 – Main panel layout of the device... -
Page 9: Reset To The Default Settings
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual Table 3 – Light indication of device state LED status Device state Wi-Fi solid green Wi-Fi network is active flashing green the process of data transmission trough a wireless network LAN ... -
Page 10: Installation Order
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual 3 Installation order This section defines safety rules, installation recommendations, setup procedure and the device starting procedure. 3.1 Safety rules Do not install the device close to heat sources or in rooms with temperature below 5 °C or above 40 °C. -
Page 11: Channel Selection For Neighboring Access Points
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual Material Change of signal level, dB 2,4 GHz 5 GHz Organic glass -0,3 -0,9 Brick -4,5 -14,6 Glass -0,5 -1,7 Plaster slab -0,5 -0,8 Wood laminated plastic -1,6 -1,9 Plywood -1,9 -1,8 Plaster with wirecloth... -
Page 12: Wep-2Ac, Wep-2Ac Smart And Wep-2Ac-Z Installation
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual Similarly, the procedure of channel allocation is recommended to save for access point allocation between floors, see Figure 5. Figure 5 – Scheme of channel allocation between neighboring access points that are located between floors When width of used channel is 40 MHz there is no non-overlapping channels in frequency range of 2.4 GHz. -
Page 13: Installing To False Ceiling
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual Figure 7 – Attaching the bracket to a wall The figure shows the bracket allocation; When installing the bracket, pass wires through the corresponding channels of the bracket, see figure 7; Pass the wires into the corresponding grooves on the bracket while installing the bracket. Screw the brackets to the device surface by using screwdrive. - Page 14 WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual 1 – metal bracket; 2 – armstrong panel; 3 – plastic bracket; 4 – device. Figure 9 – Mounting to a false ceiling...
-
Page 15: Removing The Device From The Bracket
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual Fasten metal and plastic bracket on a ceiling as shown in the figure 9. The plastic bracket (3) should be joined with the metal one (1) on the ceiling in the following order: metal bracket ->... -
Page 16: Application A. Anntenna Patterns Of Wep-2Ас And Wep-2Ac Smart
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual 4 Application A. Anntenna patterns of WEP-2ас and WEP-2ac Smart 2.4 GHz 5 GHz For WEP-2ac Smart in the 5 GHz band, the Smart Antenna uses the 'beam switching' method - this is more than 700 radiation patterns that dynamically change during the operation of the access point. -
Page 17: Application B. Pin Array Of The Device Connectors
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual 5 Application B. Pin array of the device connectors RJ-45 connector pin array The next scheme is used for twisted-pair wiring. Side А: white orange; orange; white green; blue; white blue; green; white brown;... -
Page 18: The List Of Changes
WEP-2ac, WEP-2ac Smart, WEP-2ac-Z. User manual 6 The list of changes Document version Issue date Revisions Version 1.16 03.12.2021 Synchronization with firmware version 1.21.1 Version 1.15 30.09.2021 Synchronization with firmware version 1.21.0 Version 1.14 07.12.2020 Synchronization with firmware version 1.20.0 Version 1.13... - Page 19 Service Center of the company: http://www.eltex-co.com/support You are welcome to visit Eltex official website to get the relevant technical documentation and software, to use our knowledge base or consult a Service Center Specialist in our technical forum. http://www.eltex-co.com/ http://www.eltex-co.com/support/downloads/...
