ITALIANO INDICE Informazioni generali ..........................3 Descrizione prodotto e tipo di impiego..................3 1.1.1 Caratteristiche generali ........................3 Apertura della confezione ......................3 1.2.1 Contenuto della confezione........................3 Avvertenze ........................... 3 1.3.1 Alimentazione............................3 1.3.2 Precauzioni per la sicurezza ........................ 3 1.3.3 Precauzioni per l’installazione ......................

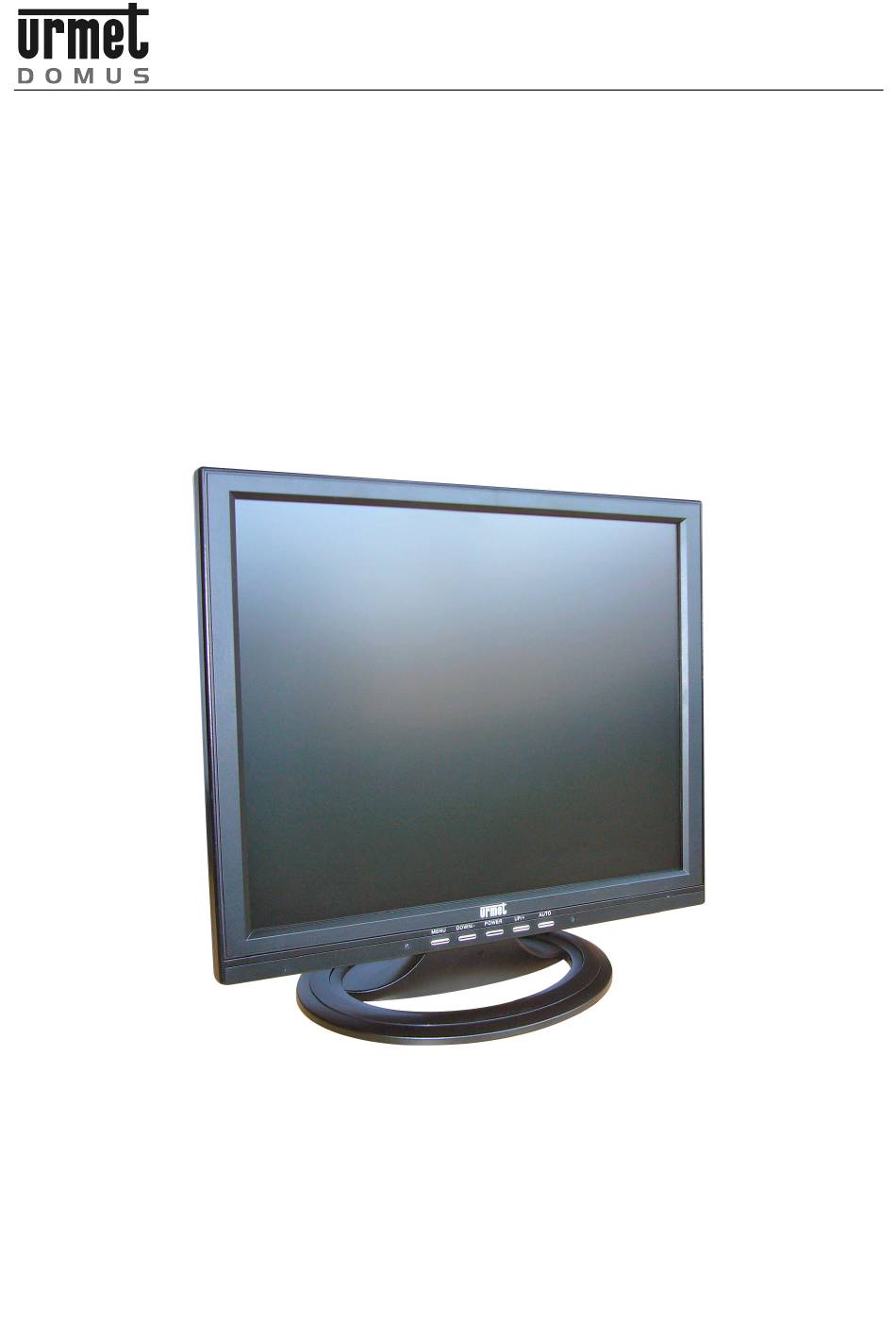

DESCRIZIONE PRODOTTO E TIPO DI IMPIEGO Il monitor a colori “LCD VGA” Sch.1092/407 ha una struttura molto solida ed è progettato per funzionare in modo continuativo, per cui può essere impiegato in impianti a TV a circuito chiuso senza rischi di sovra-affaticamento.
1.3.5 PRIVACY E COPYRIGHT Il monitor LCD Sch.1092/407 è un dispositivo per sistemi TVCC. La registrazione delle immagini è subordinata alle leggi vigenti nel paese di utilizzo. È inoltre vietata la registrazione di immagini protette da Copyright. Gli utenti del prodotto sono responsabili per il controllo ed il rispetto di tutte le norme e gli statuti locali relativi al monitoraggio e alla registrazione di segnali video.
COMANDI E REGOLAZIONI CONTROLLI DIRETTI CONNETTORE D’ALIMENTAZIONE (DC) [6] Connettere il cavo d’alimentazione dell’adattatore in dotazione nel rispettivo connettore DC. TASTO ACCENSIONE/SPEGNIMENTO Consente l’accensione/spegnimento del monitor. L’illuminazione del led verde (2) indica lo stato d’accensione. NOTA BENE Se dopo aver premuto il tasto (1) sul monitor dovesse apparire il seguente messaggio: NO SIGNAL con accensione del led rosso (2), significa che non è...
CONTROLLI CON MENU OSD Tramite la pressione del tasto (4) è possibile accedere ai menù e sottomenù d’impostazione, definendo le funzioni di controllo. Premendo il tasto (4), apparirà la seguente videata. 1280 X 1024 60HZ Colori Contrasto 55 - ■■■■■■■█■■■ + Immagine Luminosità...
2.2.1 COLORI Selezionando il primo menu e premendo il tasto “MENU” per confermare apparirà la seguente videata: 1280 X 1024 60HZ Colori Contrasto 55 - ■■■■■■■█■■■ + Immagine Luminosità 35 - ■■■■█■■■■■■ + Funzione Temp. Colore 9300 6500 User OSD Menu Vari Uscita Uscita...
2.2.2 IMMAGINE Selezionando il secondo menu e premendo il tasto “MENU” per confermare apparirà la seguente videata. 1280 X 1024 60HZ Colori Posiz - H 55 - ■■■■■■■█■■■ + Immagine Posiz - V 35 - ■■■■█■■■■■■ + Funzione Fase 35 - ■■■■█■■■■■■ + OSD Menu Clock 35 - ■■■■█■■■■■■...
2.2.3 FUNZIONI Selezionando il terzo menu e premendo il tasto “MENU” per confermare apparirà la seguente videata. 1280 X 1024 60HZ Colori Auto Regol Immagine Auto Colore Funzione Uscita OSD Menu Vari Uscita AUTO REGOL. Consente di variare automaticamente le regolazioni delle impostazioni video. Premere il tasto “UP” per aumentare ed il tasto “DOWN”...
2.2.4 IMPOSTAZIONI MENU Selezionando il quarto menu e premendo il tasto “MENU” per confermare apparirà la seguente videata. 1280 X 1024 60HZ Colori Lingua Immagine 35 - ■■■■█■■■■■■ + Funzione 35 - ■■■■█■■■■■■ + OSD Menu Timer Vari Uscita Uscita LINGUA Consente di selezionare la lingua d’uso del menu OSD.
2.2.5 VARI Selezionando il quinto menu e premendo il tasto “MENU” per confermare apparirà la seguente videata. 1280 X 1024 60HZ Colori Risoluzione 640 X 400 720 X 400 Immagine Reset Funzione Volume 35 - ■■■■█■■■■■■ + OSD Menu Uscita Vari Uscita RISOLUZIONE...
QUALITÀ DEI MONITOR LCD E PIXEL I monitor TFT (thin-film transistor, con transistor a pellicola sottile) a matrice attiva utilizzano una tecnologia ad alta precisione, conforme agli standard Urmet, in grado di garantire prestazioni esenti da disturbi. Tuttavia, lo schermo potrebbe presentare piccole imperfezioni di carattere estetico, come ad esempio punti neri o brillanti.
Page 13
ENGLISH TABLE OF CONTENTS General information ..........................14 Product description and type of use ..................14 1.1.1 General features ..........................14 Opening the box......................... 14 1.2.1 Contents of the box ..........................14 Warnings ............................ 14 1.3.1 Power ..............................14 1.3.2 Safety precautions ..........................
Keep this manual at hand so that you can refer to it when needed. PRODUCT DESCRIPTION AND TYPE OF USE The LCD colour monitor 1092/407 presents a very rugged structure. It is designed for continuous operation and can be used in closed circuit TV systems without risks of excessive fatigue.
1.3.5 PRIVACY AND COPYRIGHT The 1092/407 LCD monitor is a device for CCTV systems. Recording of images is subject to the laws in force in your country. Recording of images protected by copyright is forbidden. Product users shall be responsible for checking and respecting all local rules and regulations concerning monitoring and recording video signals.
CONTROLS AND SETTINGS DIRECT CONTROLS POWER CONNECTOR (DC) [6] Plug the power wire of the adapter provided into the respective DC. ON/OFF BUTTON This is used to switch the monitor on and off. The green LED (2) lights up when the monitor is on. IMPORTANT NOTE If the following message appears on the monitor after pressing the button (1): NO SIGNAL...
OSD CCTV MENU CONTROLS Button (4) can be used to access menus and submenus and to define control functions. Press button (4), the following screen will appear: Procedure Use “UP” and “DOWN” and press “MENU” to confirm to select the various menus and submenus. Use “UP”...
2.2.1 COLOUR Select “COLOR” and press “MENU” to confirm. The following screen will appear containing display settings. CONTRAST This setting is used to change the contrast between the black and white areas of the image. Clear resolution of the white, black and grey scales can be obtained by correctly setting contrast.
2.2.3 FUNCTION Select “FUNCTION” and press “MENU” to confirm. The following screen containing settings related to image dimensions and position of the image on the screen will appear. AUTO ADJUST This setting is used to automatically adjust the video setup. Press “UP” or “DOWN” to increase or decrease the parameter setting.
2.2.5 MISC Select “MISC” and press “MENU” to confirm. The following screen will appear: MODE SELECT This Menu is not applicable. The resolution is defined by the connected device. The compatible resolutions are: 640x480, 800x600, 1024x768 e 1280x1024. RESET Loads factory settings. VOLUME This setting is used to adjust the audio volume.
LCD MONITOR QUALITY AND PIXEL The TFT monitor uses high-precision technology, manufactured according to Urmet standards, to guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This a common matter related to the specific nature of TFT technology which determines the possible presence of discontinuity on the screen and is not specific to Urmet products.
Page 22
DEUTSCH INHALTSVERZEICHNIS ALLGEMEINE INFORMATIONEN ......................23 PRODUKTBESCHREIBUNG - EINSATZART................23 1.1.1 ALLGEMEINE MERKMALE ....................... 23 ÖFFNEN DER VERPACKUNG ....................23 1.2.1 INHALT DER VERPACKUNG......................23 WARNHINWEISE ........................23 1.3.1 VERSORGUNG ..........................23 1.3.2 SICHERHEITSMASSNMAHMEN....................... 23 1.3.3 VORSICHTSMASSNAHMEN BEI DER INSTALLATION ..............24 1.3.4 REINIGUNG DES GERÄTS.......................
PRODUKTBESCHREIBUNG - EINSATZART Der Farbmonitor “LCD” Typ 1092/407 verfügt über einen sehr robusten Aufbau und ist für Dauerfunktion ausgelegt. Daher kann er in TV-Anlagen mit geschlossenem Kreis ohne Überlastungsrisiken eingesetzt werden. Der Flachbildmonitor ist ein Aktivmatrix LCD (liquid crystal display) Bildschirm mit TFT (thin film transistor).
Benzin, Alkohol, Lösungsmittel etc. oder chemisch behandelte Tücher zur Reinigung des Geräts verwenden. 1.3.5 DATENSCHUTZ UND COPYRIGHT Der Farbmonitor 17“ des Typs 1092/407 ist ein CCTV-Gerät. Die Bildaufzeichnung unterliegt den geltenden Bestimmungen des Betreiberlandes. Darüber hinaus ist die Aufzeichnung von urheberrechtlich geschützten Bildern untersagt.
BESCHREIBUNG DER TEILE DIREKTE BEDIENUNGEN VERSORGUNGSSTECKER (DC) [6] Das Versorgungskabel des in der Lieferung enthaltenen Adapters an den entsprechenden Stecker DC anschließen. EIN-/AUS-Taste Gestattet das Ein-/Ausschalten des Monitors. Die grüne LED (2) leuchtet auf, wenn der Monitor eingeschaltet ist. BEACHTEN Sollte nach dem Betätigen der Taste (1) auf dem Monitor die folgenden Meldung erscheinen: KEIN SIGNAL und die LED (2) leuchte rot, bedeutet dieses dass das Videosignal fehlt.
BEDIENUNGEN ÜBER MENÜ OSD Durch Betätigen der Taste (4) kann auf die Menüs und Untermenüs der Einstellung zugegriffen werden, um die Steuerfunktionen zu definieren. Durch Drücken der Taste (4) erscheint die folgende Bildschirmansicht. 1280 X 1024 60HZ Farbe Kontrast 55 - ■■■■■■■█■■■ + Bild Helligkeit 35 - ■■■■█■■■■■■...
2.2.2 BILD Durch Auswahl von “BILD” und Betätigen der Taste “MENÜ”, erscheint auf dem Bildschirm folgende Ansicht: 1280 X 1024 60HZ Farbe Posit - H 55 - ■■■■■■■█■■■ + Bild Posit - V 35 - ■■■■█■■■■■■ + Funzktion Phase 35 - ■■■■█■■■■■■ + OSD Menu Takt 35 - ■■■■█■■■■■■...
2.2.3 FUNKTION Durch Auswahl von “FUNKTION” und Betätigen der Taste “MENÜ”, erscheint auf dem Bildschirm folgende Ansicht: 1280 X 1024 60HZ Farbe Auto Einstellung NEIN Bild Auto Farbe NEIN Funktion Ende OSD Menu Misc Ende AUTO ADJUST Gestattet die automatische Justierung der Videoeinstellungen. Die Taste “UP” oder die Taste “DOWN” zum Ändern des Parameterwertes betätigen.
2.2.4 OSD MENÜ Durch Auswahl von “OSD MENÜ” und Betätigen der Taste “MENÜ”, erscheint auf dem Bildschirm folgende Ansicht: 1280 X 1024 60HZ Farbe Sprache Bild 35 - ■■■■█■■■■■■ + Funktion 35 - ■■■■█■■■■■■ + OSD Menu Timer NEIN Misc Ende Ende SPRACHE...
2.2.5 MISC Durch Auswahl von “MISC” und Betätigen der Taste “MENÜ”, erscheint auf dem Bildschirm folgende Ansicht: 1280 X 1024 60HZ Farbe Auflösung 640 X 400 720 X 400 Bild Rücksetzen NEIN Funktion Volume 35 - ■■■■█■■■■■■ + OSD Menu Ende Misc Ende...
HINWEISE ZU DEFEKTEN PIXELN UND ZUR QUALITÄT DES LCD-MONITORS Der TFT-Monitor ist mit Hochpräzisiontechnologie ausgestattet und wurde gemäß den Urmet Standards gefertigt, um einen störungsfreien Betrieb zu gewährleisten. Trotzdem ist es möglich, dass der Monitor leichte Unregelmäßigkeiten aufweist, die sich in kleinen hellen oder dunklen Punkten auf dem Bildschirm äußern. Es handelt sich um eine normale Erscheinung, die mit der spezifischen Natur der TFT-Technologie zusammenhängt, die eventuelle Anzeichen von Diskontinuität auf dem Bildschirm mit sich bringt und nicht für Urmet spezifisch.
Page 33
ESPAÑOL ÍNDICE Información general ..........................34 Utilización y descripción del producto..................34 1.1.1 Características generales........................34 Apertura de la caja........................34 1.2.1 Contenido del paquete ........................34 Advertencias ..........................34 1.3.1 Alimentación............................34 1.3.2 Precauciones de seguridad........................ 34 1.3.3 Precauciones de instalación....................... 35 1.3.4 Limpieza del dispositivo ........................
Le agradecemos que haya comprado este producto. En este documento se describe cómo instalar y utilizar el monitor de color 17” LCD URMET Domus, ref. 1092/407. Lea con atención este manual, ya que contiene información sobre el uso correcto y seguro de los dispositivos.
1.3.5 PRIVACIDAD Y COPYRIGHT El monitor LCD 1092/407 es un dispositivo para sistemas CCTV. La grabación de imágenes está sujeta a la legislación vigente en cada país. Se prohíbe grabar imágenes que estén protegidas por derechos de autor. Los usuarios del producto son responsables de conocer y cumplir todas las normas y reglamentos locales relativos a la vigilancia y grabación de señales de vídeo.
CONTROLES Y AJUSTES CONTROLES CONECTOR DE ALIMENTACIÓN (DC) [6] Conecte el cable de alimentación al alimentador suministrado en la toma DC correspondiente. BOTÓN DE APAGADO/ENCENDIDO [1] Se utiliza para encender o apagar el monitor. El indicador LED (2) se ilumina de color verde cuando el monitor está encendido.
CONTROLES CON EL MENÚ OSD Utilice el botón (4) para entrar en los menús y submenús y definir las funciones de control. Pulse el botón (4) para que aparezca la siguiente pantalla: 1280 X 1024 60HZ Color Contraste 55 - ■■■■■■■█■■■ + Imagen Brillo 35 - ■■■■█■■■■■■...
2.2.1 COLOR Seleccione “COLOR” y pulse “MENÚ” para confirmar. Aparecerá el siguiente cuadro de diálogo en el que podrá modificar los ajustes de la pantalla. 1280 X 1024 60HZ Color Contraste 55 - ■■■■■■■█■■■ + Imagen Brillo 35 - ■■■■█■■■■■■ + Función Temp.
2.2.2 AJUSTE DE LA IMAGEN Seleccione “IMAGEN” y pulse “MENÚ” para confirmar. Aparecerá el siguiente cuadro de diálogo en el que podrá modificar los ajustes de la pantalla. 1280 X 1024 60HZ Color Posic - H 55 - ■■■■■■■█■■■ + Imagen Posic - V 35 - ■■■■█■■■■■■...
2.2.3 FUNCIÓN Seleccione “FUNCIÓN” y pulse “MENÚ” para confirmar. Aparecerá el siguiente cuadro de diálogo en el que podrá modificar los ajustes de dimensión y posición de la imagen en la pantalla. 1280 X 1024 60HZ Color Auto ajuste SÍ Imagen Auto color SÍ...
2.2.4 MENÚ OSD Seleccione “MENÚ OSD” y pulse “MENÚ” para confirmar. Aparecerá el siguiente cuadro de diálogo en el que podrá modificar los ajustes del menú OSD (On Screen Display). 1280 X 1024 60HZ Color Idioma Imagen Pos-H OSD 35 - ■■■■█■■■■■■ + Función Pos-V OSD 35 - ■■■■█■■■■■■...
2.2.5 VARIOS Seleccione “VARIOS” y pulse “MENÚ” para confirmar. Aparecerá la siguiente pantalla: 1280 X 1024 60HZ Color Resolución 640 X 400 720 X 400 Imagen Reset SÍ Función Volumen 35 - ■■■■█■■■■■■ + Menú OSD Salir Varios Salir RESOLUCIÓN Menú...
CALIDAD DEL MONITOR LCD Y PÍXELES El monitor TFT utiliza una tecnología de alta precisión, fabricada de acuerdo con los estándares de Urmet, que garantiza un funcionamiento correcto. Sin embargo, la pantalla puede presentar pequeñas imperfecciones en forma de pequeños puntos oscuros o brillantes.
Page 44
Prodotto in Cina su specifica URMET Domus DS1092-060 Made in China to URMET Domus specification SEDE FILIALI URMET DOMUS S.p.A. 20151 MILANO – V. Gallarate 218 10154 TORINO (ITALY) Tel. 02.380.111.75 - Fax 02.380.111.80 VIA BOLOGNA 188/C 00043 CIAMPINO (ROMA) V. L.Einaudi 17/19A Telef.
