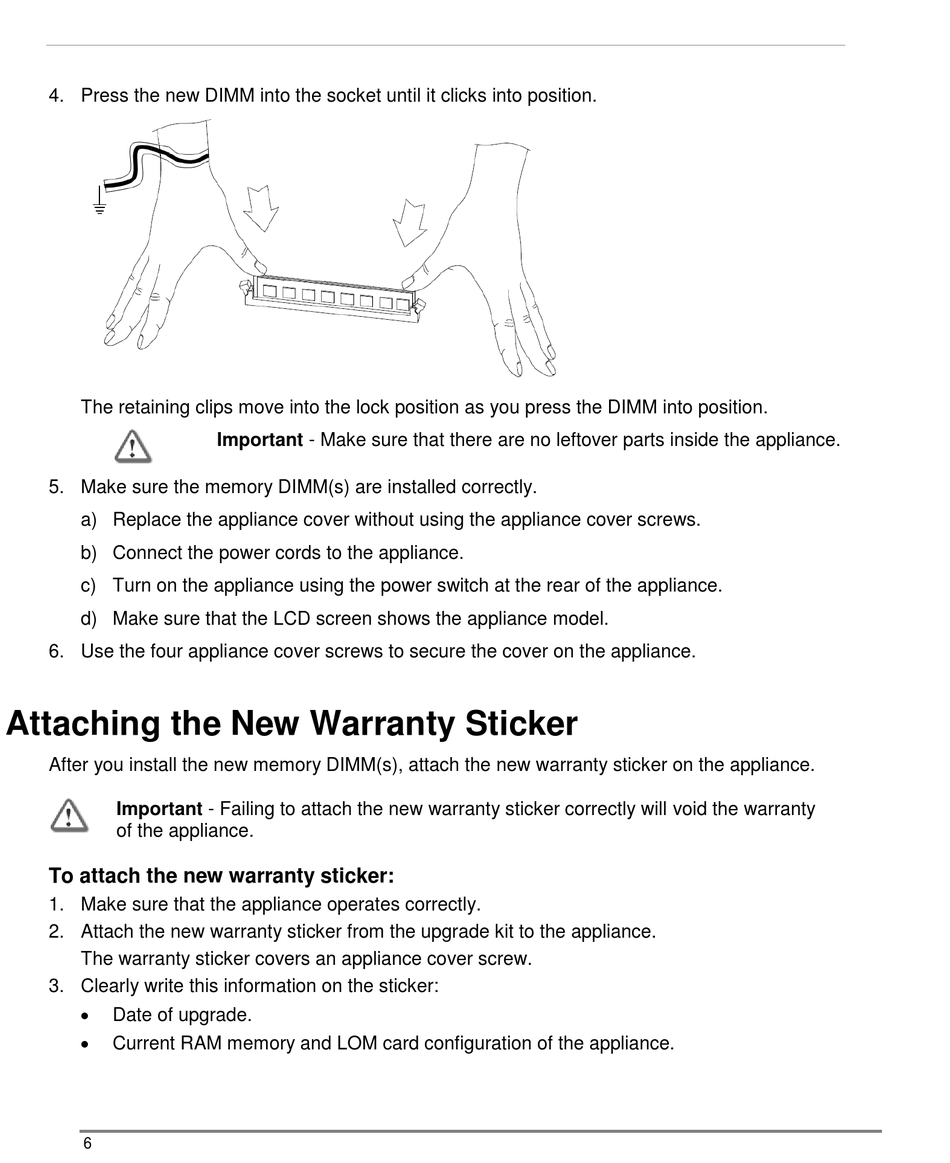

4. Press the new DIMM into the socket until it clicks into position.
The retaining clips move into the lock position as you press the DIMM into position.
5. Make sure the memory DIMM(s) are installed correctly.
a) Replace the appliance cover without using the appliance cover screws.
b) Connect the power cords to the appliance.
c) Turn on the appliance using the power switch at the rear of the appliance.
d) Make sure that the LCD screen shows the appliance model.
6. Use the four appliance cover screws to secure the cover on the appliance.

Attaching the New Warranty Sticker

After you install the new memory DIMM(s), attach the new warranty sticker on the appliance.
Important - Failing to attach the new warranty sticker correctly will void the warranty
of the appliance.
To attach the new warranty sticker:
1. Make sure that the appliance operates correctly.
2. Attach the new warranty sticker from the upgrade kit to the appliance.
The warranty sticker covers an appliance cover screw.
3. Clearly write this information on the sticker:

Date of upgrade.

Current RAM memory and LOM card configuration of the appliance.
6
Important - Make sure that there are no leftover parts inside the appliance.
