Removing Memory DIMMs

Make sure that you prepare the appliance before you remove memory DIMMs. For more
information, see Preparing the Appliance.

To remove memory DIMMs from the appliance:

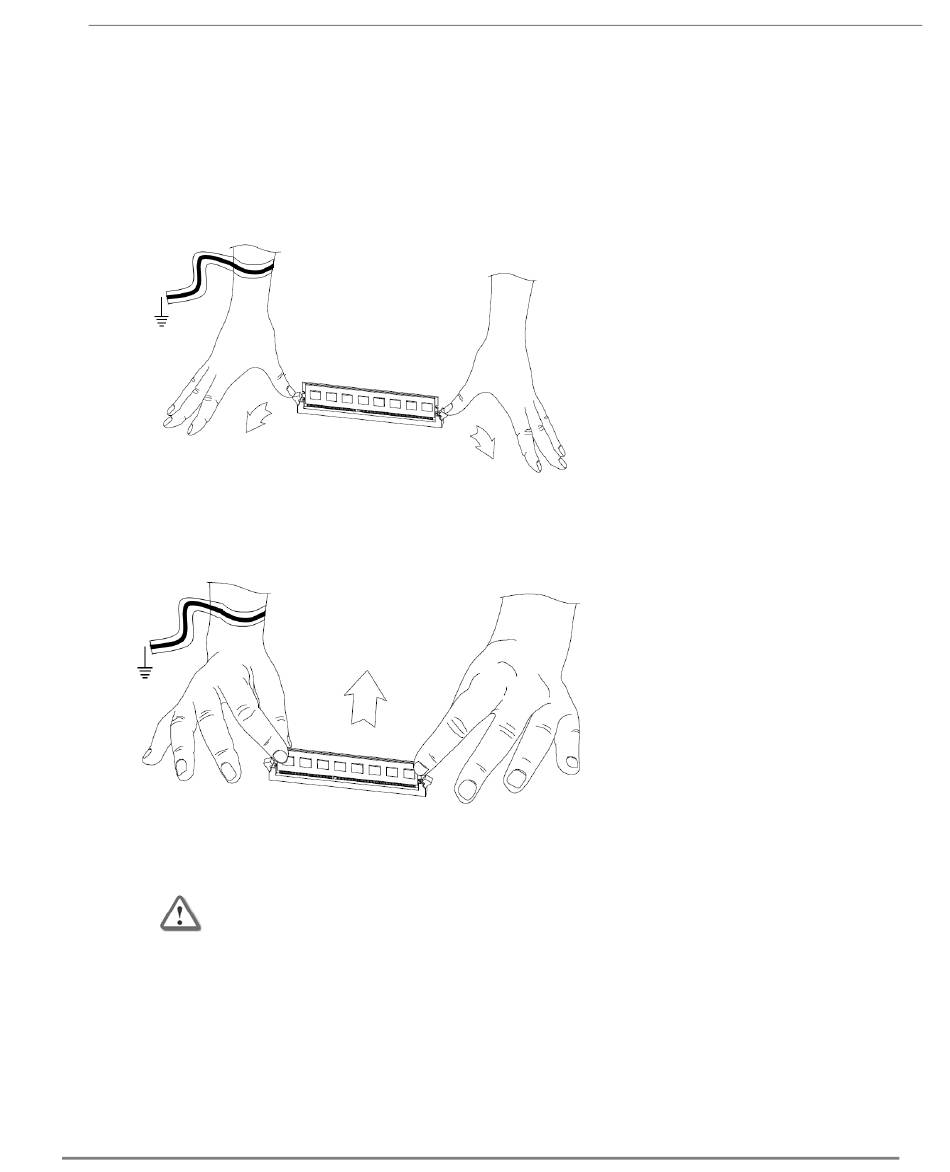

1. Press the two retaining clips outward.
2. Carefully pull the DIMM up.
Only touch the rear corners of the DIMM. Pressing on the heat sink or other DIMM
components can damage the hardware.
If necessary, pull one end of the DIMM, then the other, to gradually release it from the
contact pins.
3. Make sure the memory DIMM(s) are installed correctly.
a) Replace the appliance cover without tightening the appliance cover screws.
b) Connect the power cords to the appliance.
c) Turn on the appliance using the power switch at the rear of the appliance.
d) Make sure that the LCD screen shows the appliance model.
4. Tighten the two appliance cover screws to secure the cover on the appliance.
Important - Make sure that there are no leftover parts inside the appliance.
7
