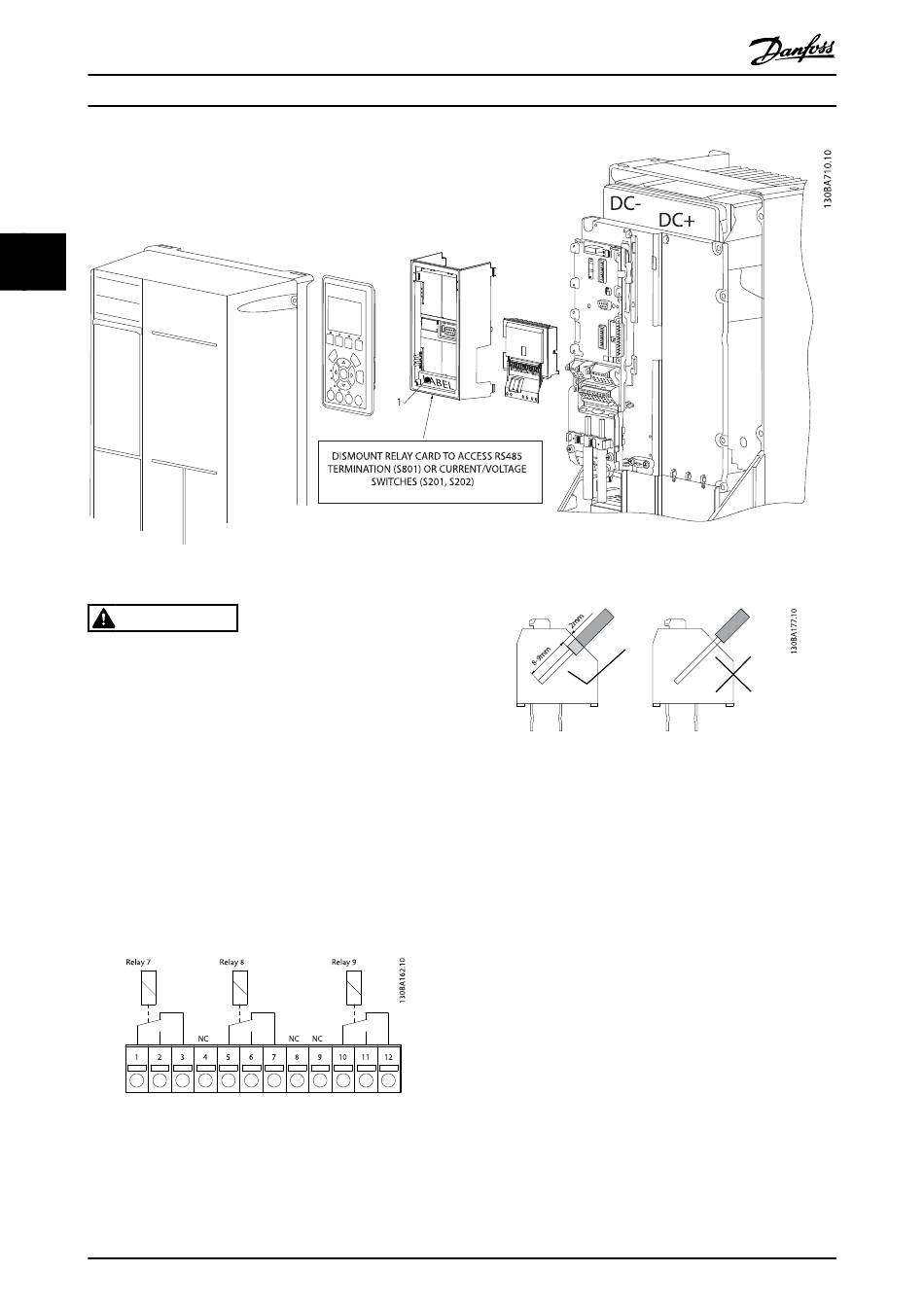

Danfoss VLT Design Manual page 41

Drive Selection
3 3
Illustration 3.6
WARNING
Warning Dual supply
How to add the MCB 105 option:
•
See mounting instructions in the beginning of
section Options and Accessories
•
The power to the live part connections on relay
terminals must be disconnected.
•
Do not mix live parts with control signals (PELV).
•
Select the relay functions in 5-40 Function Relay
[6-8], 5-41 On Delay, Relay [6-8] and 5-42 Off
Delay, Relay [6-8].
NOTE
Index [6] is relay 7, index [7] is relay 8, and index [8] is
relay 9
Illustration 3.7
40
®
VLT Refrigeration Drive Design Guide
Illustration 3.8
®
