How to Install
motors. Provide further motor protection by e.g.
thermistors in each motor or individual thermal relays.
(Circuit breakers are not suitable as protection).
5 5
Illustration 5.27
74
®
VLT Refrigeration Drive Design Guide

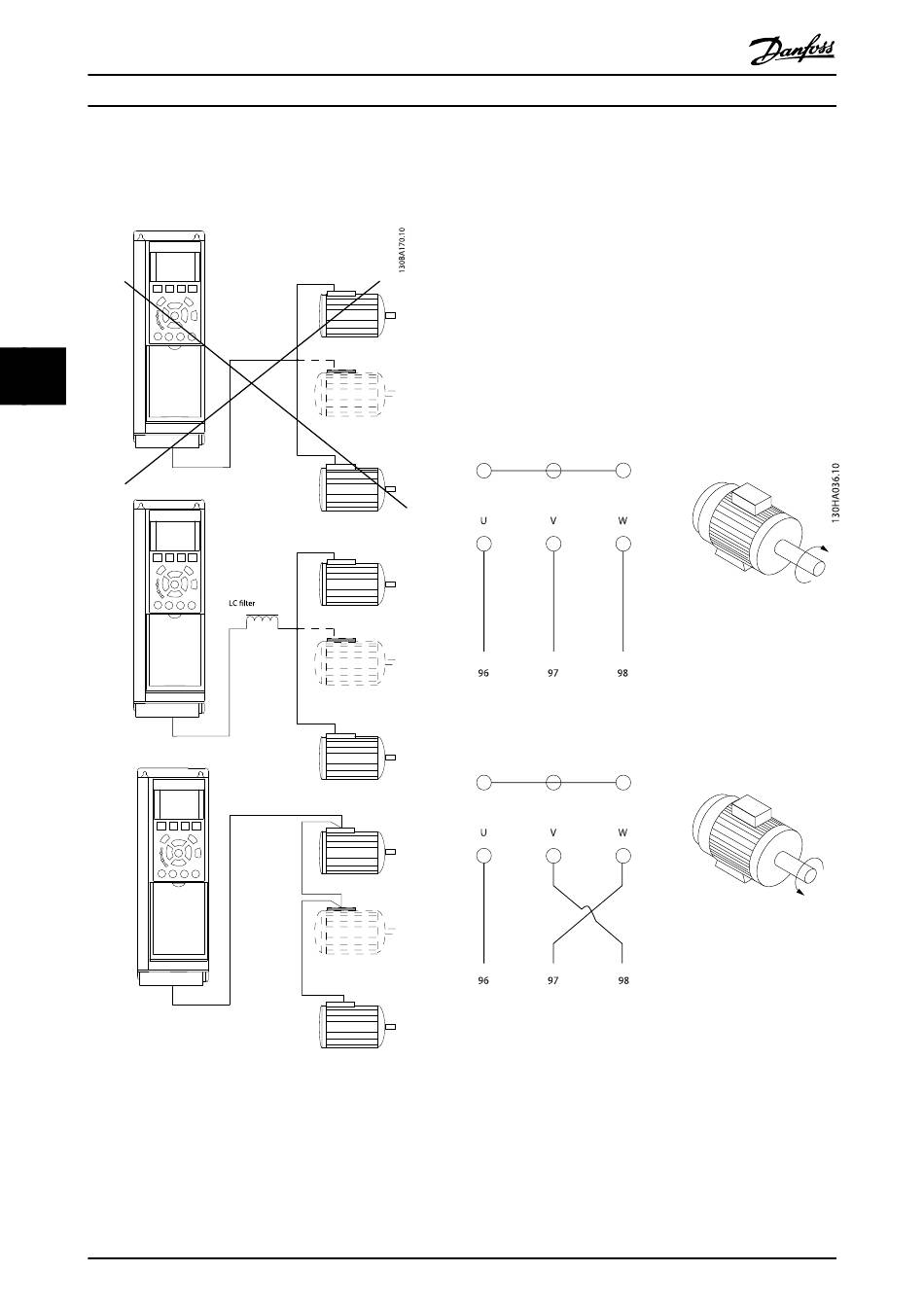

5.4.5 Direction of Motor Rotation
The default setting is clockwise rotation with the frequency
converter output connected as follows.
Terminal 96 connected to U-phase
Terminal 97 connected to V-phase
Terminal 98 connected to W-phase
The direction of motor rotation is changed by switching
two motor phases.
Motor rotation check can be performed using 1-28 Motor
Rotation Check and following the steps shown in the
display.
Illustration 5.28
5.4.6 Motor Thermal Protection
The electronic thermal relay in the frequency converter has
received the UL-approval for single motor protection,
when 1-90 Motor Thermal Protection is set for ETR Trip and
1-24 Motor Current is set to the rated motor current (see
motor name plate).
®
