Ergotron
Read these instructions.
Läs broschyren.
Lesen Sie Die Broshüre.
Lisez le dépliant.
Lees de brochure.
Lee el folleto.
Leggi la brochure.
Tools required:
De här verktgen behover du:
Diese Werkzeuge benötigen Sie:
Voici les outils dont vous avez besoin:
Dit gereedschap is nodig:
Herramientas necesarias:
Gli attrezzi necessari:
Rev E. 03/09

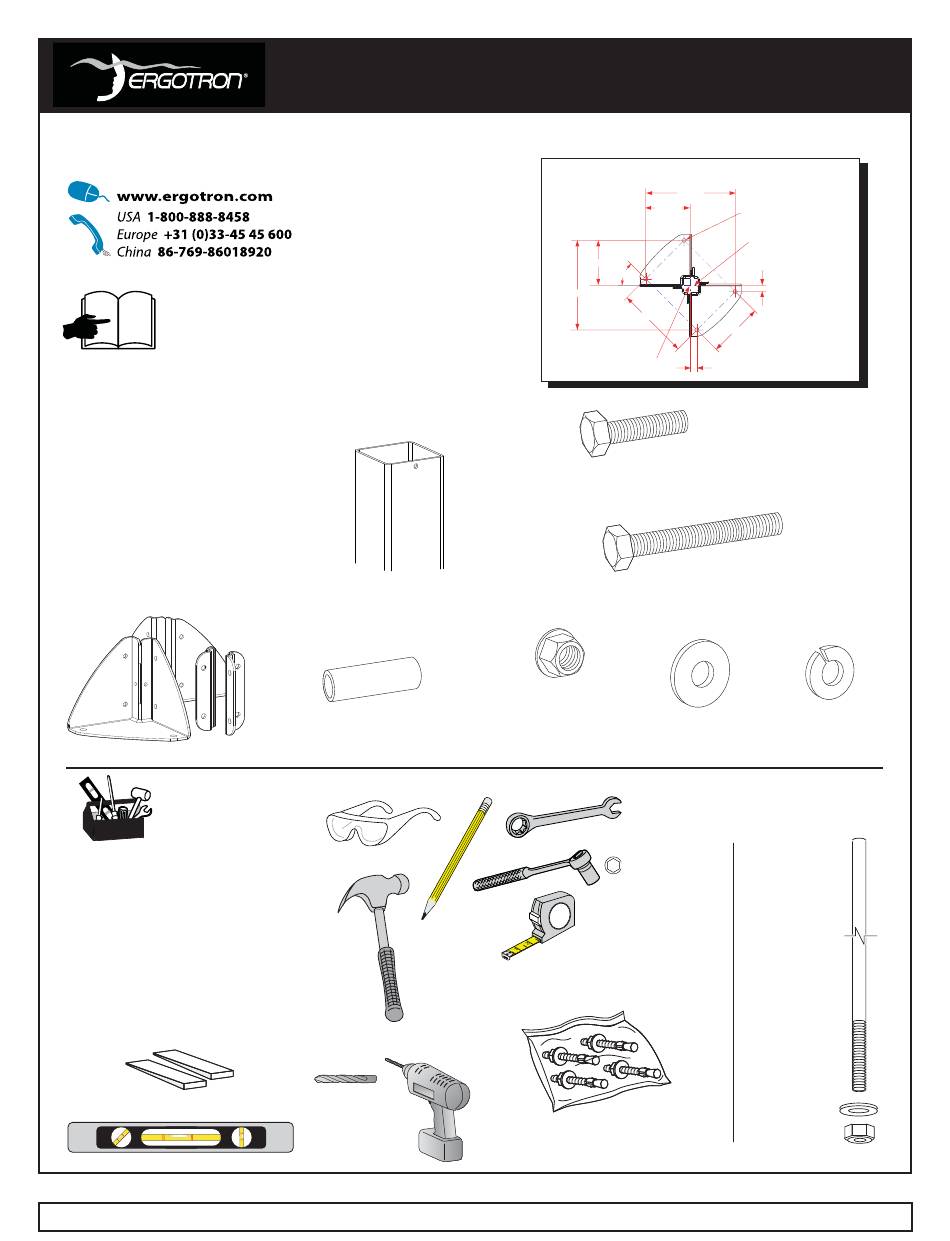

INSTALLATION MANUAL
Command Post
3x3
(76.2 mm)
8x
1" (25.4mm) Plastic Spacer
for 3x3 and 4x4 Posts only
3/8" (9.5mm)
Carbide drill bit
3x3 Template
6-3/16
45˚
12-3/8
CENTER LINE E
8x
8x
8x
8x
3/8" (9.5mm)-16
Hex Nut
9/16"
(14.3mm)
9/16"
(14.3mm)
Floor application only - optional
Ergotron Concrete Anchor Kit
page 1 of 6
12-3/8
6-3/16
4X Ø9/16
CENTER LINE
2X 7/8 FROM CENTER LINE
10
7-1/2
2X 7/8 FROM CENTER LINE
3/8" (9.5mm) -16 x 1"
(25.4mm) Hex Head Screws
for 2x2 Posts only
3/8" (9.5mm) -16 x 2" (50.8mm)
Hex Head Screws
For 3x3 and 4x4 Posts only
8x
3/8" (9.5mm)
3/8" (9.5mm)
Split Lock Washer
Flat Washer
4x
Ceiling
application
only - 1/2"
(12.7mm)
Anchor Rods
- customer
supplied
888-01-014-00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron Command Post
Summary of Contents for Ergotron Command Post
- Page 1 - 1/2" Dit gereedschap is nodig: (12.7mm) Herramientas necesarias: Anchor Rods Gli attrezzi necessari: - customer supplied 3/8" (9.5mm) Carbide drill bit Floor application only - optional Ergotron Concrete Anchor Kit Rev E. 03/09 page 1 of 6 888-01-014-00...
-
Page 2: Determine Mounting Location
DETERMINE MOUNTING LOCATION WARNING The Support Base must be securely installed to ensure safety. Since Ergotron has no control over the type of fl oor, ceiling, wall and/or ultimate mounting method, the user assumes all responsibility for this aspect of the installation. -
Page 3: Mount Base
ASSEMBLE SUPPORT BASE MOUNT BASE Floor Typical Floor Confi gurations 3" using optional Ergotron 76.2mm Concrete Anchor Kit " 9.5mm Rev E. 03/09 page 3 of 6 888-01-014-00... - Page 4 MOUNT BASE - Ceiling Below ceiling Above ceiling Typical Ceiling Confi gurations using customer supplied 1/2" (12.7mm) Anchor Rods Below ceiling Above ceiling 888-01-014-00 page 4 of 6 Rev E. 03/09...
- Page 5 TIGHTEN BASE AROUND POST PLUMB UP THE POST Floor Ceiling 400 lb force-inch (33 lb force-foot) (45 newton-meters) SECURE BASE TO SURFACE 300 lb force-inch (25 lb force-foot) (34 newton-meters) MOUNT EQUIPMENT AND ROUTE CABLES Floor Ceiling Rev E. 03/09 page 5 of 6 888-01-014-00...
- Page 6 888-01-014-00 page 6 of 6 Rev E. 03/09...
