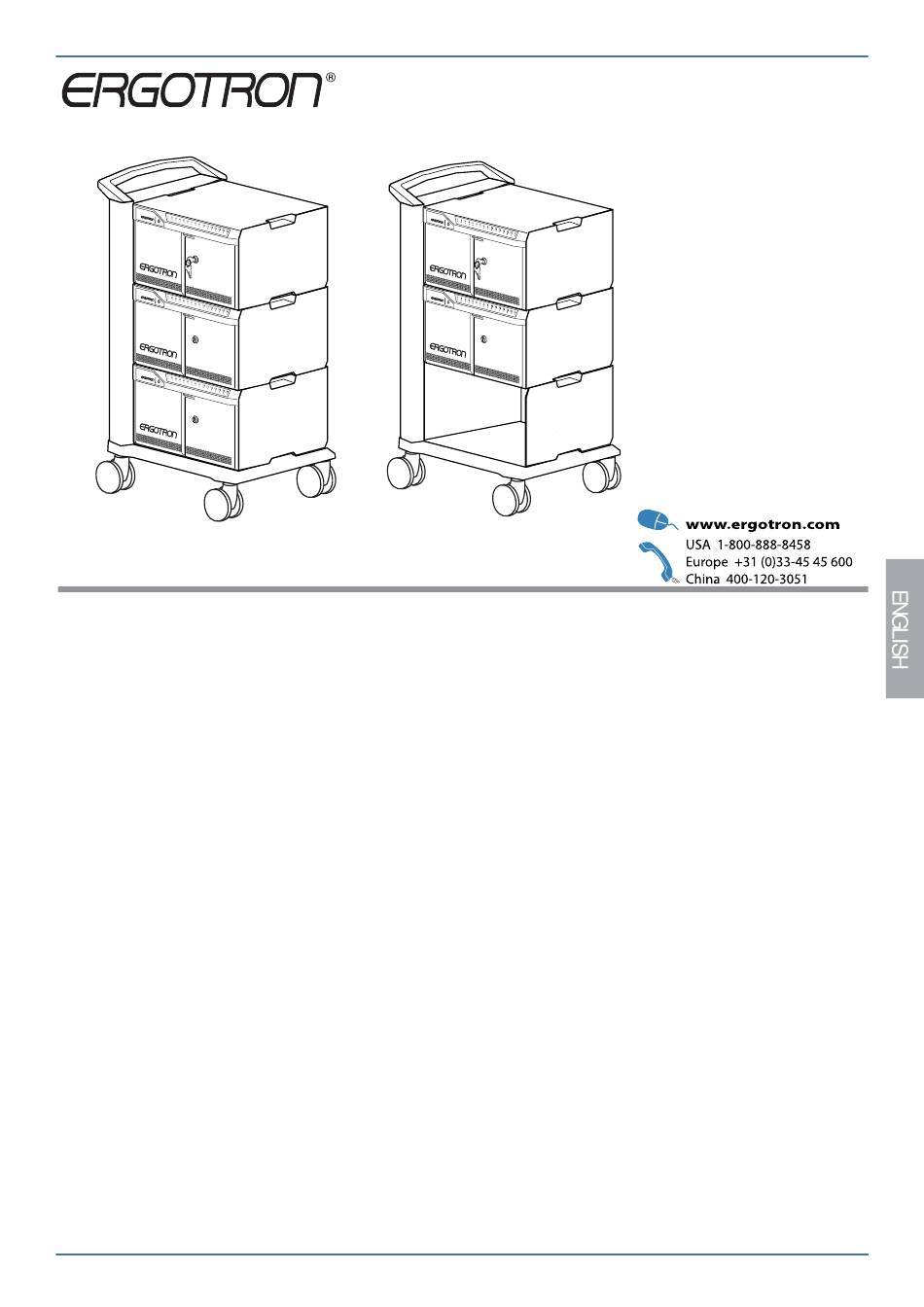

Tablet Management Cart for iPad® 48 Unit Management Cart 32 Unit Management Cart Table of Contents Hazard Symbols Review ........................2 Components & Tools ..........................2 Features ..............................3 Charging Set up ............................ 4 Tablet Charging ............................. 8 LED and Syncing ............................ 9-10 Cleaning and Maintenance........................ -
Page 2: Hazard Symbols Review
Safety Hazard Review These symbols alert users of a safety condition that demands attention. All Charging and Managed Cart users should be able to recognize and understand the signifi cance of the following Safety Hazards if encountered on the Cart or within Cart documentation. Children who are not able to recognize and respond appropriately to Safety Alerts should not use the Cart without adult supervision! Symbol Signal Word... -
Page 3: Features
Features 48 Unit Management Cart Handle LED Power Indicator Individual Status Indicators (ISI) Tablet Access Doors Keyed Locks 2 Non-locking Casters AC Adaptor Cradle Auxilary Power Outlet(s) USB Port Fans (one for each module) Cord Wrap Bay and Power Cord... -
Page 4: Charging Set Up
Tablet Charging Set-up Make sure the cart power cord is disconnected from wall power supply before proceeding. Unlock the module and open the doors. NOTE: the cart power cord acts as the connect/disconnect device switching power off and on. Use a Phillips screwdriver to remove the two screws located on the interior sides of the module;... - Page 5 Tablet Charging Set-up Unplug the USB and DC power cables (push up on the lever under the DC connector to release). The drawer can now be removed. Place the drawer up-side-down on the cart top. Line up a tablet USB cable along numbers 1 to 8 on the drawer as a way to measure out slack (represented by dashed line).
- Page 6 Tablet Charging Set-up Turn over the drawer. Wrap the excess USB cable around the cable organizer. Connect the USB cable to the corresponding USB port. Repeat USB cabling steps 5 through 8 for the rest of the iPad devices going into this module.
- Page 7 Tablet Charging Set-up Slide the drawer completely into the module. Insert the screws removed in step 2 and tighten. Insert iPad devices into module. Connect the tablet USB charging cables to the iPad devices. Repeat Steps 1 - 10 for the other modules.
-
Page 8: Tablet Charging
Tablet Charging Insert iPad devices into module. Connect the tablet USB charging cables to the iPad devices. Repeat Steps 1 - 10 for the other modules. To begin charging the tablets, plug in the Cart power cord. The power cord is used to turn the Cart power on and off . Charging occurs whenever the cart power cord is connected UNLESS a Macintosh®... -
Page 9: Led And Syncing
The iPad devices will mount as USB devices when the A to B USB cable (not included) is connected to a host notebook via the USB port on the exterior of the Tablet Management Cart. If using iTunes, please see separate iTunes setup instructions available on the Ergotron website Tablet Management Cart product page. - Page 10 Syncing Place your Apple device, power adaptor and a USB cable on the cart work top. Plug the USB and power adaptor cables into the notebook; route the ends of the cables down the side of the cart, and strap the power adaptor into the recessed area to store.
-
Page 11: Cleaning And Maintenance
MANAGEMENT CART Input/Output: 100/120 V~, 12 A, 50/60 Hz CAUTION: Changes or Modifi cations not expressly approved by Ergotron could void the user’s authority to operate the equipment. 35MR UL 60950 ACCESSORY Cart Use Safety This device complies with Part 15 of the FCC Rules. -
Page 12: Specifi Cations
220/230/240 V~, 1.5A, 50/60 Hz iPad Air iPad mini with Retina Display iPad (4th generation) iPad mini Service and Warranty For Service on the Ergotron Tablet Managing Cart for iPad Visit www.ergotron.com www.ergotron.com MADE IN CN NOTE: When contacting customer 12-345-678 service, reference the serial number.
