Ergotron STYLEVIEW Quick Reference

STYLEVIEW®
QUICK REFERENCE

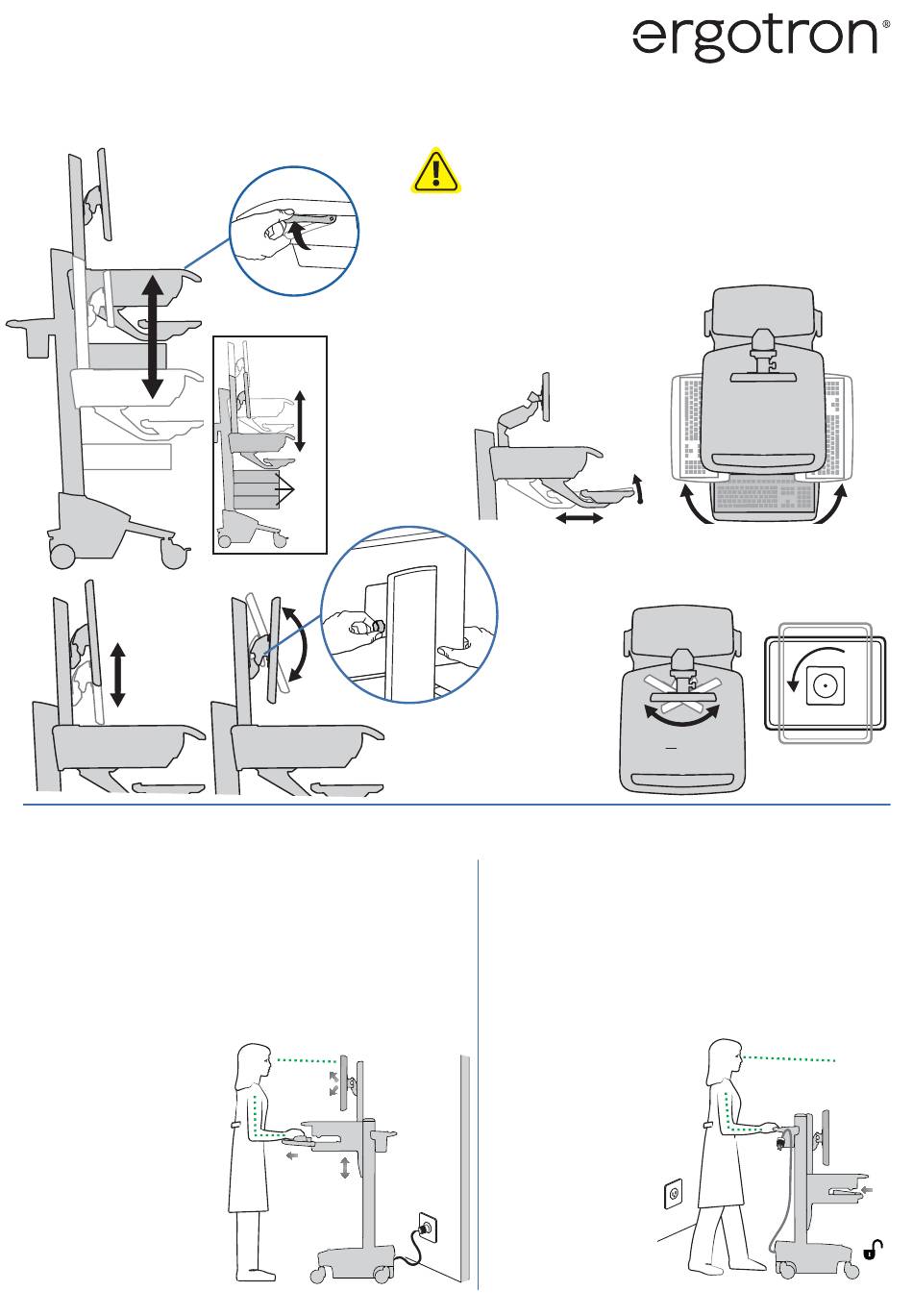

RANGE OF MOTION

Release Brake to move riser.
20"
(508 mm)
5"
(127 mm)

ERGONOMICS

Working customize - to your size
1 Set top of monitor screen about one inch below eye level - Release brake and lift or
lower riser as needed.
2 Tilt screen for comfortable viewing and to reduce eye and neck strain.
3 Pull keyboard tray forward and position mouse tray and mouse pouch on right or
left, as needed.
4 Work with elbows bent at about 90° to minimize muscle strain.
5 If the riser moves up and down with diffi culty, or if it drifts out of set position,
consult the product manual for adjustment information.
6 Stay in charge!
Powered carts should be plugged
into outlet as often as possible to
keep battery charged and computer
running.
CAUTION! Completely
release brake engagement
before raising or lowering
the cart. Raising or lowering
the cart with the brake
partially engaged may cause
product damage.
16"
(406 mm)
3x
20˚
5˚
1
2
4
3
5
6
Japan: japansupport@ergotron.com
12˚
Loosen knob,
tilt Display to
desired position
then retighten
knob.
Moving stow - before you go
1 During normal movement, release brake and lower worksurface to lowest
position for optimal stability and unobstructed view.
2 Tuck away open trays and return mouse, scanner and other accessories to
their places. Clear worksurface
3 Unlock both front casters.
4 Push cart from rear with elbows bent at about 90° to maximize control and
minimize muscle strain.
5 Don't run out!
Before moving, make sure
cord is unplugged from
outlet and hooked to basket
for safe travel. Remember,
charge battery fully 100%
every day!
777-24-046-G-01 rev. D • 03/19
www.ergotron.com
USA: 1-800-888-8458
Europe: +31 (0)33-45 45 600
China: 400-120-3051
180˚
+ 12˚
1
4
5
2
3
