Components
3x3 Template
Tools Needed
For the latest User Installation Guide please visit: www.ergotron.com
www.ergotron.com |
USA: 1-800-888-8458
888-01-014-00 rev. F • 09/19

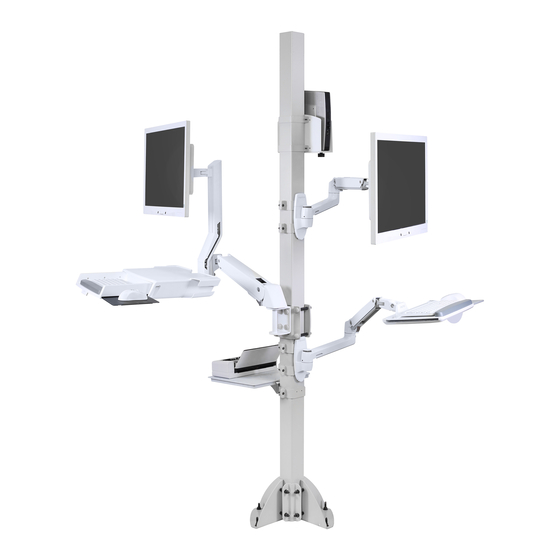

Command Post
8x
1" (25.4mm) Plastic Spacer
for 3x3 and 4x4 Posts only
9/16"
(14.3mm)
9/16"
(14.3mm)
3/8" (9.5mm)
Carbide drill bit
|
Europe: +31 (0)33-45 45 600
8x
3x3
(76.2 mm)
8x
8x
8x
3/8" (9.5mm)-16
Hex Nut
3/8" (9.5mm)
Flat Washer
Floor application only
- optional Ergotron
Concrete Anchor Kit
|
China: 400-120-3051
User's Guide
3/8" (9.5mm) -16 x 1"
(25.4mm) Hex Head Screws
for 2x2 Posts only
3/8" (9.5mm) -16 x 2" (50.8mm)
Hex Head Screws
For 3x3 and 4x4 Posts only
8x
3/8" (9.5mm)
Split Lock Washer
4x
Ceiling appli-
cation only -
1/2" (12.7mm)
Anchor Rods
- customer
supplied
|
Japan: japansupport@ergotron.com
1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron Command Post
Summary of Contents for Ergotron Command Post
- Page 1 Anchor Rods 9/16" - customer (14.3mm) supplied 3/8" (9.5mm) Carbide drill bit For the latest User Installation Guide please visit: www.ergotron.com www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 1 of 6 888-01-014-00 rev. F • 09/19...
-
Page 2: Determine Mounting Location
DETERMINE MOUNTING LOCATION WARNING The Support Base must be securely installed to ensure safety. Since Ergotron has no control over the type of fl oor, ceiling, wall and/or ultimate mounting method, the user assumes all responsibility for this aspect of the installation. -
Page 3: Mount Base
ASSEMBLE SUPPORT BASE MOUNT BASE Floor Typical Floor Confi gurations using optional Ergotron Concrete Anchor Kit 3 of 6 888-01-014-00 rev. F • 09/19... - Page 4 MOUNT BASE - Ceiling Below ceiling Above ceiling Typical Ceiling Confi gurations using customer supplied 1/2" (12.7mm) Anchor Rods Below ceiling Above ceiling 4 of 6 888-01-014-00 rev. F • 09/19...
- Page 5 TIGHTEN BASE AROUND POST PLUMB UP THE POST Floor Ceiling 400 lb force-inch (33 lb force-foot) (45 newton-meters) SECURE BASE TO SURFACE 300 lb force-inch (25 lb force-foot) (34 newton-meters) MOUNT EQUIPMENT AND ROUTE CABLES Floor Ceiling 5 of 6 888-01-014-00 rev.
- Page 6 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2009 Ergotron, Inc. All rights reserved. 6 of 6 888-01-014-00 rev. F • 09/19...
