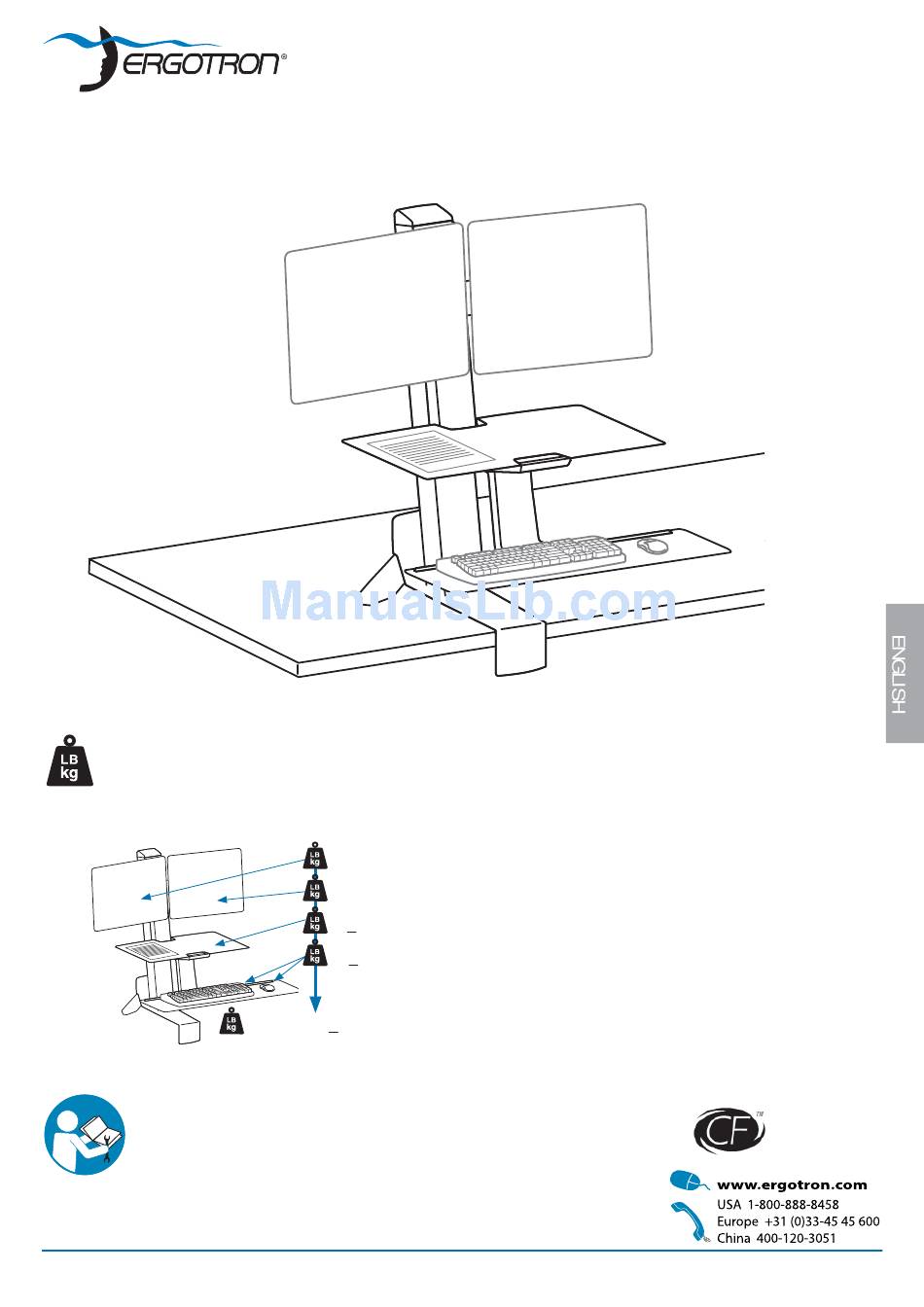

Ergotron WorkFit-S User Manual
Dual sit-stand workstation
Hide thumbs
Also See for WorkFit-S:
- User manual (20 pages) ,
- Installation manual (11 pages) ,
- Assembly instructions manual (6 pages)
Advertisement
CAUTION: DO NOT EXCEED MAXIMUM LISTED
WEIGHT CAPACITY. SERIOUS INJURY OR
PROPERTY DAMAGE MAY OCCUR!
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-33-332-W-02 rev.G • 11/15
A
6 - 14 lbs
(2.7-6.4 kg)
B
6 - 14 lbs
(2.7-6.4 kg)
C
< 5 lbs
(2.3 kg)
D
< 5 lbs
(2.3 kg)
A
B
C
D
< 25 lbs (11.3 kg)
+
+
+
User's Guide
WorkFit-S, Dual
Includes
Constant Force™
Technology
1 of 12
Advertisement
Table of Contents
Related Manuals for Ergotron WorkFit-S
Summary of Contents for Ergotron WorkFit-S
- Page 1 < 5 lbs (2.3 kg) < 5 lbs (2.3 kg) < 25 lbs (11.3 kg) For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Includes Guía del usuario - Español Constant Force™ Manuel de l’utilisateur - Français...
- Page 2 Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to be able to recognize and understand the CAUTION hardware or loss of data and tells you how to avoid the...
- Page 3 Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi...
-
Page 4: Tools Needed
Features & Specifi cations Components M5 x 14mm M6 x 6mm 4.8" (122 mm) 18" (45.7 cm) M5 x 12mm M4 x 5mm M4 x 10mm M4 x 10mm M4x12mm 68˚ 7.5˚ M4 x 8mm Tools Needed 14mm 4 of 12 888-33-332-W-02 rev.G •... - Page 5 0.47" - 1.38" (12 - 35 mm) 1.46" - 2.4" (37 - 60 mm) 5 of 12 888-33-332-W-02 rev.G • 11/15...
- Page 6 M6 x 6mm M5 x 14mm CAUTION! Tipping Hazard. Support the stand until the clamp is securely tightened. Failure to follow these instructions may result in the stand tipping over causing possible equipment damages and or personal injury. 6 of 12 888-33-332-W-02 rev.G •...
- Page 7 M5 x 12mm 7 of 12 888-33-332-W-02 rev.G • 11/15...
- Page 8 M4x10mm M4x12mm M4 x 8mm 0° 3.5˚ 8.5˚ M4 x 10mm M4 x 10mm 8 of 12 888-33-332-W-02 rev.G • 11/15...
- Page 9 M4 x 5mm M4 x 5mm Center total width of mounted equipment on stand. 9 of 12 888-33-332-W-02 rev.G • 11/15...
- Page 10 DO NOT remove safety guards or labels designed to protect or inform of possible hazards. Only Ergotron-approved installers may service or otherwise modify cart/stand. Failure to heed this Warning may result in serious Personal Injury and Damage both to the cart/stand and equipment.
- Page 11 Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength: Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease Lift Strength: Adjustment may take up to: 115 full 360°...
- Page 12 Break • 2 to 3 minutes every 20 minutes • 15 to 20 minutes every 2 hours. For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com © 2015 Ergotron, Inc. All rights reserved. 12 of 12 888-33-332-W-02 rev.G • 11/15...
