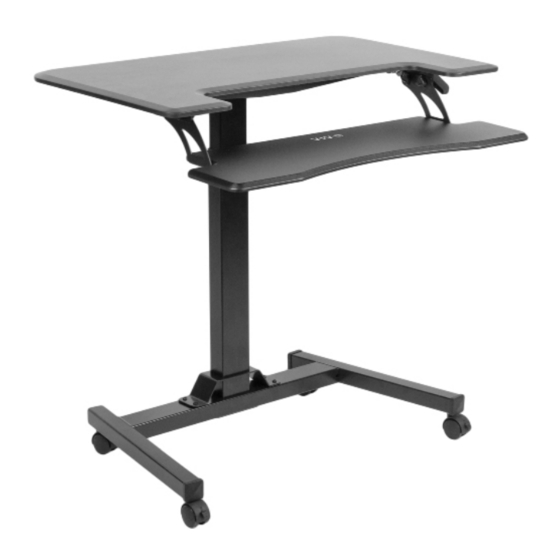

Black 36" pneumatic mobile compact desk

Advertisement

Quick Links

Black 36" Pneumatic Mobile Compact Desk
Instruction Manual
SKU: DESK-V111GT
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v111gt
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V111GT and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo DESK-V111GT

  • Page 1 Black 36" Pneumatic Mobile Compact Desk Instruction Manual SKU: DESK-V111GT Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v111gt GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
  • Page 3 TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 33lbs Failure to do so may result in serious injury. (15kg) ASSEMBLY STEPS STEP 1 Screw the casters (A) into the underside of the base (9). Secure the support bracket (8) to the base using x4 M6x14 bolts (C).
  • Page 4 STEP 2 Slide the frame (4) onto the top of the leg, making sure the long end is facing forward. Install a desk support bracket (2) to the rear using two M6x14 bolts (C) in the inner two holes, and a support bracket (3) to the front using two M6x14 bolts in the outer two holes.
  • Page 5 STEP 4 Secure left and right brackets (10) to keyboard shelf (6) using x6 M5x12 screws (D), and tighten with a Phillips screwdriver. Mount the keyboard shelf to the support brackets using the knobs pre-installed on the brackets.
  • Page 6 STEP 5 Place monitor, keyboard, mouse and other items on the desk. Use cable clip (G) to organize cables. Lift the release lever to raise and lower the desk. STEP 6 If lock is not releasing properly to change desk height, adjust the position of the black tube containing the steel release cable.
  • Page 7 CAUTION! motion 16.5" (42cm). Failure to follow these instructions may result in property damage and/or personal injury.
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
