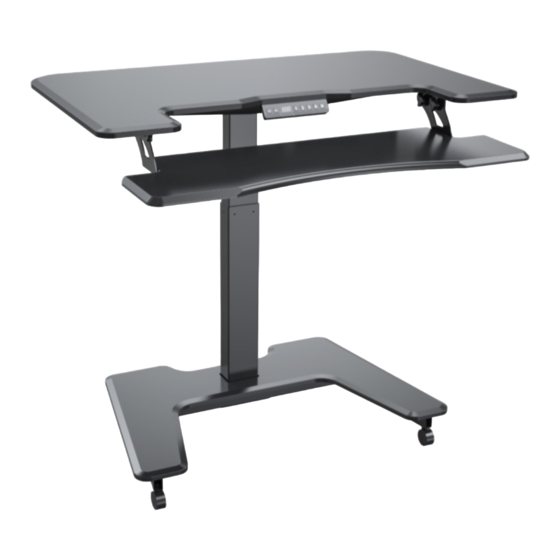

Black Electric Mobile Compact Desk
Instruction Manual
SKU: DESK-V111VT
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v111vt
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V111VT
Summary of Contents for Vivo DESK-V111VT
- Page 1 Black Electric Mobile Compact Desk Instruction Manual SKU: DESK-V111VT Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v111vt GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 88 lbs Failure to do so may result in serious injury. (39.92kg) ASSEMBLY STEPS STEP 1 Screw the casters (A) into the underside of the base (11). STEP 2 Install the plastic sleeve (12) to the top of the base, then install the leg (6) to the base using x4 M6x12 bolts (E).
- Page 4 STEP 3 Place the support frame (4) on top of the leg with the slots facing down and long end forward, making sure the pre-installed bolts on the leg insert into the slots. Tighten bolts with the Allen wrench. STEP 4 Install the desk support brackets (2, 3) to the front and back of the support frame using x6 M6x12 bolts (E), and tighten with the Allen wrench.
- Page 5 STEP 6 Mount support brackets (7) to the bottom of the desktop using x8 M5x14 screws (B), and tighten with a Phillips screwdriver. STEP 7 Mount the control panel (5) to the front of the desktop using x2 M4x12 bolts (D).
- Page 6 Step 8 Install the control unit (10) to the bottom of the desktop using x2 M5x14 screws (B), and tighten with a Phillips screwdriver. Connect the motor and control panel cables to the control unit. (NOTE: Make sure the connections for the motor and control panel are facing towards the center of the desk).
- Page 7 CAUTION! Failure to follow these instructions may result in property damage and/or personal injury.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
