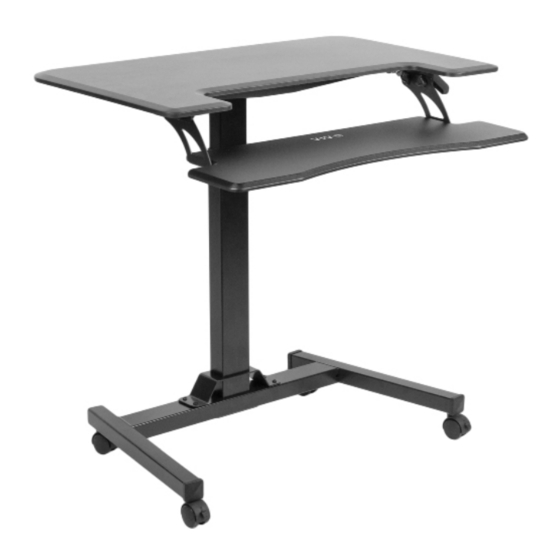

Black 36" Pneumatic Mobile Compact Desk
Instruction Manual
SKU: DESK-V111GT
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v111gt
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V111GT
Summary of Contents for Vivo DESK-V111GT
- Page 1 Black 36" Pneumatic Mobile Compact Desk Instruction Manual SKU: DESK-V111GT Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v111gt GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 22lbs 4.4lbs Failure to do so may result in serious injury. (10kg) (2kg) DESK KEYBOARD TRAY ASSEMBLY STEPS STEP 1 Screw the casters (A) into the underside of the base (8). Secure the base support bracket (7) to the base using x4 M6x16 bolts (C), and press the plastic bushings (I) into the openings in the base and base support bracket. - Page 4 STEP 2 Slide the frame (3) onto the top of the leg, making sure the long end is facing forward. Install a desk support brackets (2) to the front and rear using x4 M6x16 bolts (C) for the rear bracket, and x2 M6x16 (C) bolts in the front bracket.
- Page 5 STEP 3 Install the desktop (1) to the assembled frame using x6 M5x14 bolts (B), then install keyboard support brackets (6) and release lever to desktop using x11 M5x14 bolts. Tighten with a Phillips screwdriver. M5x14 (x17)
- Page 6 STEP 4 Install the cable guide (11) to the keyboard shelf (5) using x3 M5x12 screws (D). Secure left and right brackets (9, 10) to keyboard shelf (6) using x6 M5x12 screws (D), and tighten with a Phillips screwdriver. Mount the keyboard shelf to the support brackets using the knobs pre-installed on the brackets.
- Page 7 CAUTION! motion 16.5" (42cm). Failure to follow these instructions may result in property damage and/or personal injury.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
