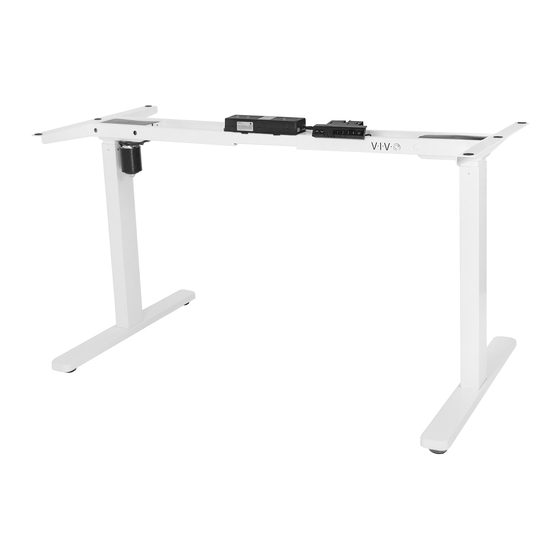

- Page 1 White Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V110EW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v110ew help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 180 lbs Failure to do so may result in serious injury. (81.65kg) ASSEMBLY STEPS STEP 1 Place the frames (4) upside down and align pre-installed screws on the legs (5) with the slots. Set the legs into the frames and tighten screws with the 4mm Allen wrench (C).
- Page 4 STEP 3 Adjust the width of the frame to fit your desktop. Tighten x8 M6x12 screws (A) into the underside of the frames (4) to secure the adjusted length. STEP 4 Loosen the nut on the socket end of the sync rod (9), slide the rod onto the protruding shaft of the motorized leg, then tighten the nut.
- Page 5 STEP 5 Attach your desktop (12) to the assembled desk frame using x8 M5x16 screws (B). Mount the control panel (1) and control unit (8) to the underside of the desktop using x4 M5x16 screws (B). Use the extension cord (3) to connect the motor to the control unit (8), then connect the control panel and power cord (11).
- Page 6 Step 6 Plug the power cable (11) into an AC wall outlet, then use the control panel (1) to adjust the height.
- Page 7 CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
