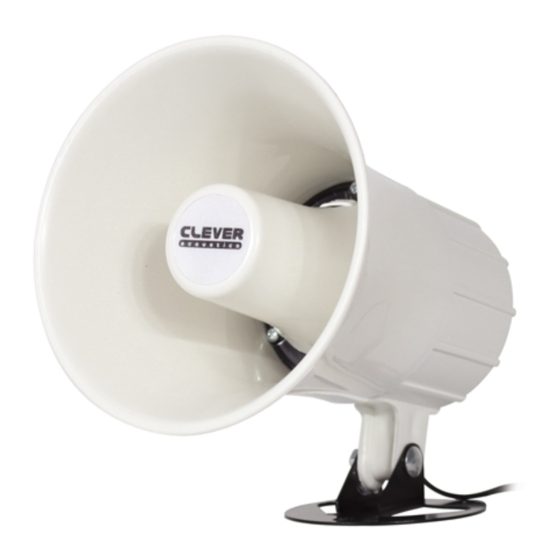

- Page 1 HS 158R 8Ω 15W ABS Horn Loudspeaker Order code: CRSP21 USER MANUAL...
- Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the loudspeaker cable come into contact with other cables. Handle the loudspeaker cable and all mains voltage connections with particular caution! •...
- Page 4 • Weather resistant construction suitable for outdoors • Supreme longer distance dispersion horn loudspeaker delivering high output sound reproduction • Suitable for, schools, industrial and commercial applications where background music, announcements and paging is required Specifications HS 158R Impedance: 8Ω Power (RMS): Power (Max.): Sensitivity (1W/1m): 102dB (±3dB)
- Page 5 Identification: 1. Loudspeaker horn 2. Loudspeaker housing 3. Horn Loudspeaker mounting bracket - Use this mounting bracket to attach the horn loudspeaker onto the wall 4. Horn speaker cable - Use this cable to connect to the mixer amplifier. To maintain weather resistant rating the connection should be terminated within an IP rated enclosure.
- Page 6 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
- Page 7 Dispersion characteristics: HS 158R...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
