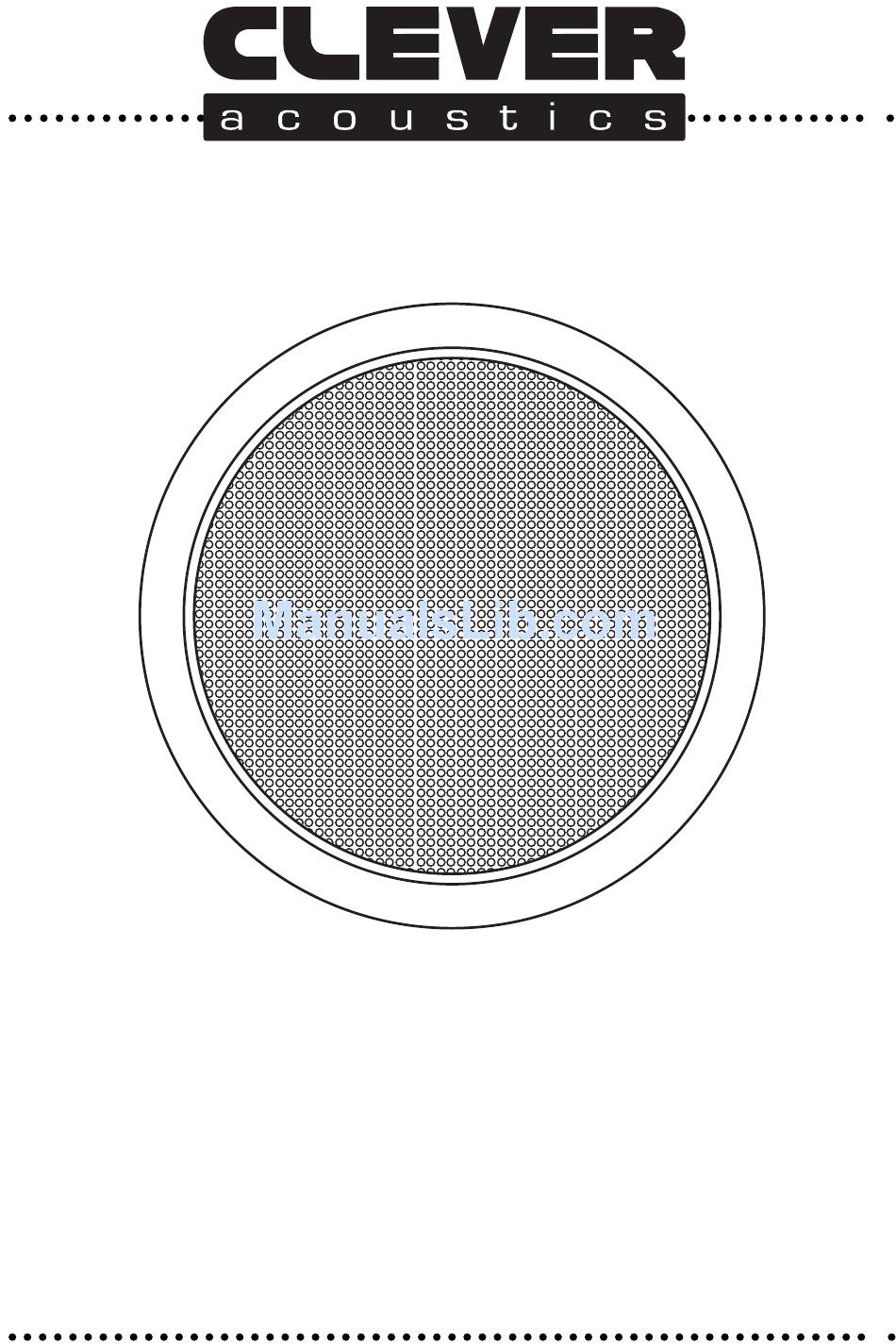

Page 1: User Manual

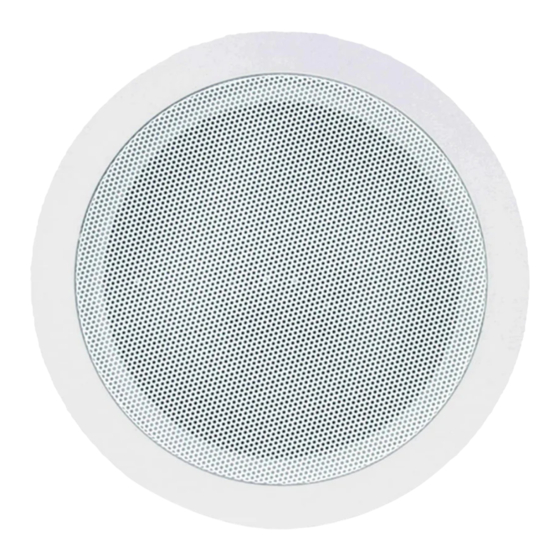

Ceiling Loudspeakers CS 56LC - 100V 5” 6W Order code: CRSP09 CS 69LC - 100V 6” 9W Order code: CRSP10 USER MANUAL... -
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during... -
Page 3: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the loudspeaker cable come into contact with other cables. Handle the loudspeaker cable and all mains voltage connections with particular caution! •... - Page 4 • Low profile design blends into environments • 3 power taps @ 100V: 3W, 6W and 9W (CS 69LC) • 3 power taps @ 100V: 1.5W, 3W and 6W (CS 56LC) • ABS baffle with metal grille • Spring clip mounting for easy installation •...
- Page 5 Identification: 1. Loudspeaker grille 2. Spring clips - Use these clips to install and mount the unit into the ceiling. Ceiling Installation The ceiling loudspeaker can be installed in a ceiling, Before installing the loudsspeaker, make sure that the installation area can hold a minimum point load of 10 times the installations weight.(e.g.12kg x 10 = 120kg point load).
- Page 6 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
- Page 7 Dispersion characteristics: CS 56LC CS 69LC...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
