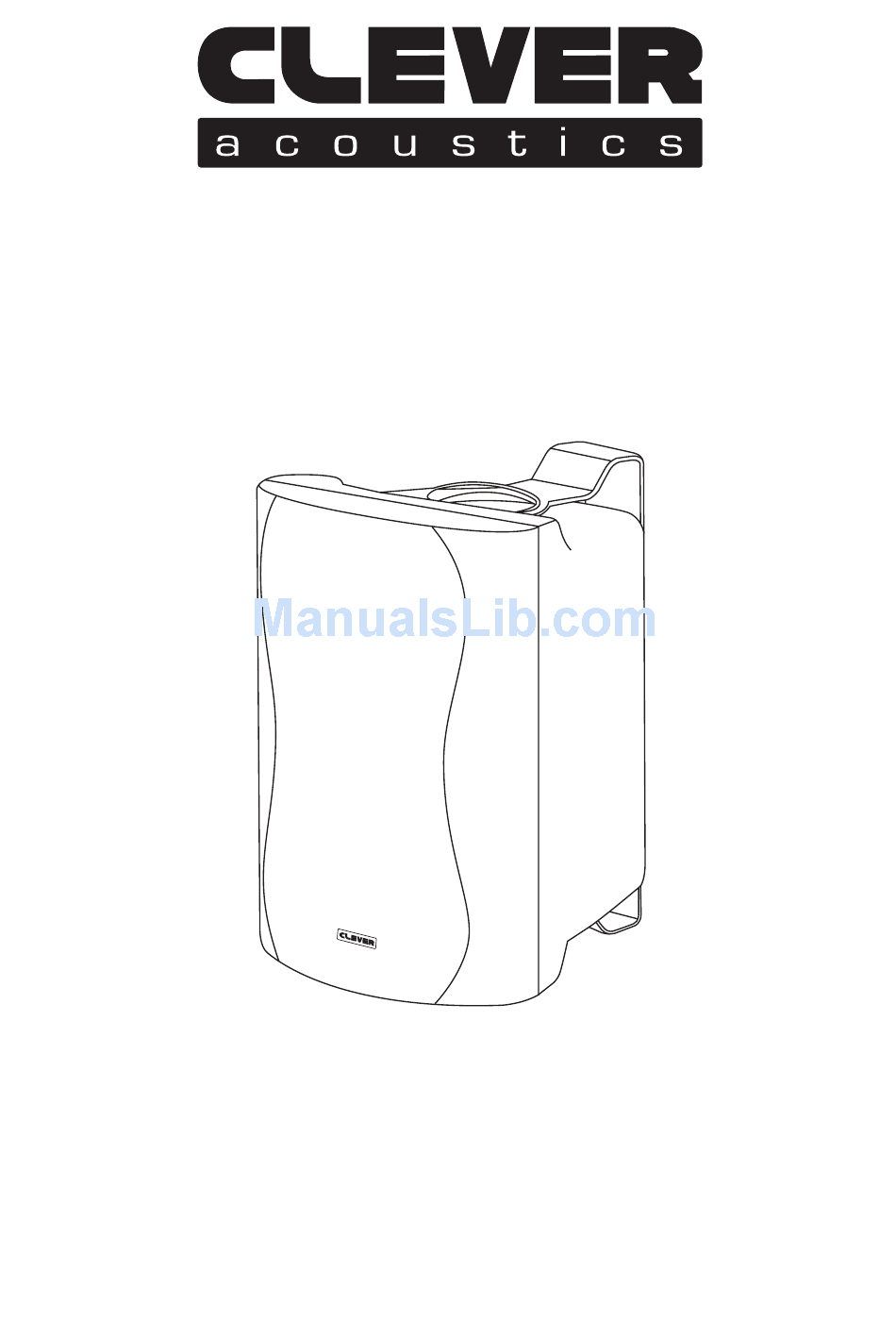

Page 1: User Manual
8Ω Background Music Loudspeakers User Manual Order codes: BGS 25 - CRSP23 (White), CRSP24 (Black) WPS 25 - CRSP35 (White), CRSP36 (Black) BGS 35 - CRSP25 (White), CRSP26 (Black) WPS 35 - CRSP37 (White), CRSP38 (Black) BGS 50 - CRSP27 (White), CRSP28 (Black) - Page 2 Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all the parts are present. • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • Retain the carton and all packaging materials. • In the event that a fixture must be returned to the supplier, it is important that the fixture is returned in the original carton and packaging. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! DANGER TO LIFE! KEEP THIS EQUIPMENT BEFORE OPERATING THE AWAY FROM MOISTURE, SPEAKER FOR THE FIRST...
- Page 3 Product overview & technical specifications 8Ω Background Music Loudspeakers These background music loudspeakers feature ABS enclosures and sturdy metal grilles. Suitable for free standing or wall mounting via adjustable pivot fixing bracket, allowing horizontal or vertical installation. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for multiple applications. • 2-way loudspeakers • Robust housing • Complete with adjustable • Suitable for insallation mounting brackets outside in sheltered conditions (WPS series only) • Supplied in pairs • Polypropylene LF and Mylar HF • Available in black and white 205mm (BGS 50 & WPS 50) 180mm (BGS 50 & WPS 50) 178mm (BGS 35 & WPS 35) 145mm (BGS 35 & WPS 35) 160mm (BGS 25 & WPS 25) 130mm (BGS 25 & WPS 25) Specifications BGS 25 & WPS 25 BGS 35 & WPS 35 BGS 50 &...
-
Page 4: Technical Specifications
Technical specifications Before attaching the loudspeaker, make sure that the supporting structure can hold a minimum safety factor of 10 times the installations weight. (eg 2.7kg - 27kg point load). The durability of the installation depends very much on the material used at the installation area (building material), such as wood, concrete and brick etc. This is why the fixing material must be chosen to suit the wall material. Always ask a specialist for the correct plug/screw combination indicating the maximum load and building material. In the box: 2 x loudspeakers, 01 - Binding terminals 03 - Bracket 2 x terminal covers 02 - Bracket adjustment knob 04 - Wall mounting points (WPS series only) (6mm fitting max) & 1 x user manual www.cleveracoustics.co.uk 8Ω BGS & WPS Loudspeakers User Manual... - Page 5 Installation instructions & setup Important installation advice 8Ω examples: • All loudspeakers have to be Standard 2 loudspeaker setup Parallel 4 loudspeaker setup connected to the constant voltage line and wired in parallel. Amplifier Amplifier • The output power is adjustable using the switch provided on the 8Ω 8Ω 4Ω 4Ω rear of the speaker. • You must NEVER mix 100V line and low impedance speakers on 8Ω 8Ω 8Ω 8Ω the same system. • DO NOT run microphone cables near mains, data, telephone or 100V line cables. 8Ω 8Ω...
-
Page 6: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk 8Ω BGS & WPS Loudspeakers User Manual... - Page 7 Clever Acoustics Range Public Address solutions from Clever Acoustics Clever Acoustics wide range of 100V and low impedance products has been designed to offer the installer a comprehensive audio solution. With options for both indoor and outdoor installations the products provide cost effective solutions without compromise on quality or intelligibility. Throughout the whole product portfolio the range has been designed to be installed with minimum fuss and simple touches including cut out templates for the ceiling loudspeaker ranges or Quick-Fixx® fast fit installation brackets featured on the BGS-20T Series. When designing the range of mixer amplifiers our engineers have taken into account that not all amplifiers are tucked away in rack cabinets, with this in mind the MA Series Mixer Amplifiers and SL Series Slave Amplifiers all feature heavy gauge brushed aluminium, black anodised front panels, maximising quality and aesthetics. The range includes: Speakers Amplifiers Accessories Ceiling Mixer Paging microphones • • • Column Slave Volume controls •...
- Page 8 www.cleveracoustics.co.uk 100V BGS & WPS Loudspeakers User Manual...
