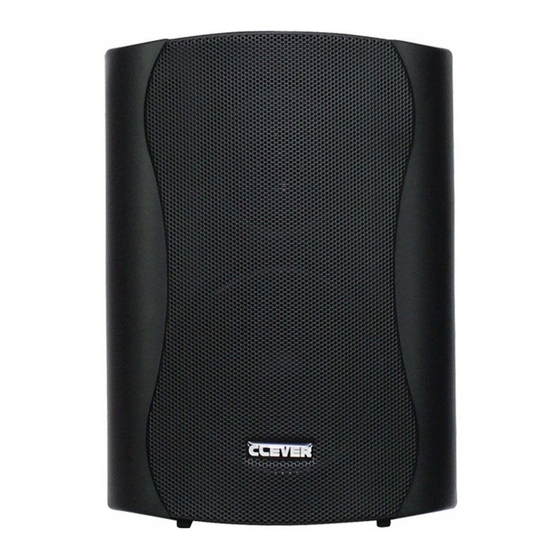

- Page 1 Powered Background Music Loudspeakers User Manual Order codes: ACT 35 - CRSP33 (White), CRSP34 (Black)
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all the parts are present. • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • Retain the carton and all packaging materials. • In the event that a fixture must be returned to the supplier, it is important that the fixture is returned in the original carton and packaging. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! DANGER TO LIFE! KEEP THIS EQUIPMENT BEFORE OPERATING THE AWAY FROM MOISTURE, SPEAKER FOR THE FIRST... -
Page 3: Operating Determinations
Safety advice IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power cable come into contact with other • Make sure that the available mains supply voltage is cables. Handle the power cable and all mains voltage 240V AC, 50Hz. connections with particular caution! • Make sure that the power cable is never crimped or • Never leave any cables lying around. damaged. Check the equipment and the power cable periodically. • Do not use the unit near stoves, heaters, radiators, or other heat producing devices. - Page 4 Supplied in pairs • Independent bass • Available in black or white and treble controls • Robust white housing • Master volume control • Supplied with adjustable • Connecting leads included mounting brackets 195mm (Passive) 178mm 145mm (Passive) Specifications ACT 35 Input 775mV unbalanced stereo Power (RMS) 2 x 17.5W Power (Max.) 2 x 25W Sensitivity (1W/1m) 89dB Maximum SPL (Rated W/1m) 99dB Frequency response 60Hz-18kHz Drivers 5” LF, 1” HF Connections 2 x RCA phono input sockets 2 x Spring terminals for passive Dimensions 240 x 178 x 195mm (active)
-
Page 5: Technical Specifications
Technical specifications Before attaching the loudspeaker, make sure that the supporting structure can hold a minimum safety factor of 10 times the installations weight. (eg 2.7kg - 27kg point load). The durability of the installation depends very much on the material used at the installation area (building material), such as wood, concrete and brick etc. This is why the fixing material must be chosen to suit the wall material. Always ask a specialist for the correct plug/screw combination indicating the maximum load and building material. Volume Input Treble Bass Output Power in AC 240V-50Hz Fuse: 1A In the box: 2 x loudspeakers 01 - Binding terminals 05 - Master volume control 09 - Signal output sockets (1 x active, 02 - Bracket adjustment knob 06 - Master treble control 10 - IEC power input 1 x passive), 03 - Bracket 07 - Master bass control 11 - Fuse: 1A 250V 1 x power cable 04 - Wall mounting points 08 - Power switch (on/off) &... - Page 6 Installation instructions & setup Operation: 01 - Connect input source (CD/MP3/Laptop etc) to the INPUT sockets. 02 - Use the supplied 2-core to connect the Master speaker with the Slave speaker. The negative (indicated by a white stripe on the cable) should be connected to the BLACK terminal, while the positive connected to the RED terminal. 03 - Connect the power wire, and turn on the volume knob counterclockwise to the highest volume. 04 - Turn on the power button, slowly turn the volume knob clockwise to the desired level. 05 - BASS and TREBLE knobs offer adjustment and control of low and high frequencies allowing the installer to tailor the sound to the room acoustics. Attention: Care should be taken to avoid short circuits when connecting the cable between the two speakers. Installation: • The output power is adjustable using the switch provided on the rear of the speaker • DO NOT run microphone cables near mains, data, telephone or 100V line cables • ENSURE that all loudspeakers are in-phase Standard setup: Volume Input Treble Bass Output Power in AC 240V-50Hz Fuse: 1A...
-
Page 7: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk ACT Powered Loudspeakers User Manual... - Page 8 Clever Acoustics Range Public Address solutions from Clever Acoustics Clever Acoustics wide range of 100V and low impedance products has been designed to offer the installer a comprehensive audio solution. With options for both indoor and outdoor installations the products provide cost effective solutions without compromise on quality or intelligibility. Throughout the whole product portfolio the range has been designed to be installed with minimum fuss and simple touches including cut out templates for the ceiling loudspeaker ranges or Quick-Fixx® fast fit installation brackets featured on the BGS-20T Series. When designing the range of mixer amplifiers our engineers have taken into account that not all amplifiers are tucked away in rack cabinets, with this in mind the MA Series Mixer Amplifiers and SL Series Slave Amplifiers all feature heavy gauge brushed aluminium, black anodised front panels, maximising quality and aesthetics. The range includes: Speakers Amplifiers Accessories Ceiling Mixer Paging microphones • • • Column Slave Volume controls •...
