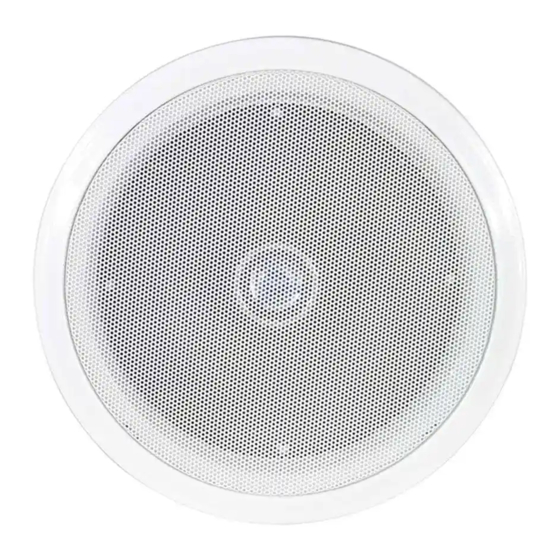

- Page 1 Ceiling Loudspeakers + Fire Dome User Manual Order codes: CS 56F - 100V 5” 6W - CRSP14 CS 66F - 100V 6” 6W - CRSP15...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all the parts are present. • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • Retain the carton and all packaging materials. • In the event that a fixture must be returned to the supplier, it is important that the fixture is returned in the original carton and packaging. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! DANGER TO LIFE! KEEP THIS EQUIPMENT BEFORE OPERATING THE AWAY FROM MOISTURE, SPEAKER FOR THE FIRST... - Page 3 Product overview & technical specifications 100V 6W Ceiling Speaker + Fire Dome Ceiling mounted loudspeakers ideal for the playback of music and speech reinforcement where audio quality is important. The CS F series utilise a coaxial design complete with HF tweeter for crystal clear high tones. The loudspeakers feature a full fire dome and ceramic connector block suitable for installations requiring fire resistant specification. During a fire, the ceiling cavity can allow fire or smoke to spread throughout a building. To inhibit fire entering the cavity via the ceiling loudspeaker a suitable product should chosen for installation. • Coaxial, 2-way design delivers • Metal grille, baffle and fire dome wide frequency response • Spring clip mounting with “dome • Multiple power taps (selected first” fast installation system via internal jumper) • Supplied with template to aid • Ceramic terminal block connection installation 180mm (CS 56F) 125mm (CS 56F) 230mm (CS 66F) 126mm (CS 66F) Specifications CS 56F CF 66F Input 100V, 70V 100V, 70V Power taps @ 100V...
-
Page 4: Technical Specifications
Technical specifications 01 - Loudspeaker grille 04 - Loudspeaker In the box: 02 - Loudspeaker housing (fire dome) 05 - Power tap selector 1 x loudspeakers, 03 - Loudspeaker housing locking plates 06 - Loudspeaker ceiling knock outs & 1 x user manual www.cleveracoustics.co.uk 100V Ceiling Loudspeaker + FD User Manual... - Page 5 Installation instructions & setup Important installation advice • Before installing the loudspeaker, make sure that the installation area can hold a minimum point load of 10 times the installations weight.(e.g.12kg x 10 = 120kg point load). • The durability of the installation depends very much on the material used at the installation area (building material), such as wood, concrete and brick etc. • This is why the fixing material must be chosen to suit the ceiling material. Always ask a specialist for the correct plug/screw combination indicating the maximum load and building material. • To select the required impedance/wattage, carefully move the black jumper wire on the step down transformer. The transformer is marked to show the impedance tappings. 157mm/207mm cutout www.cleveracoustics.co.uk 100V Ceiling Loudspeaker + FD User Manual...
-
Page 6: Typical System Configurations
Typical System Configurations 24V DC INPUT (Optional) Mains Mic 1 CD Player AM/FM Tuner www.cleveracoustics.co.uk 100V Ceiling Loudspeaker + FD User Manual... -
Page 7: Dispersion Characteristics
Dispersion Characteristics CS 56F CS 66F www.cleveracoustics.co.uk 100V Ceiling Loudspeaker + FD User Manual... -
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk 100V Ceiling Loudspeaker + FD User Manual...
