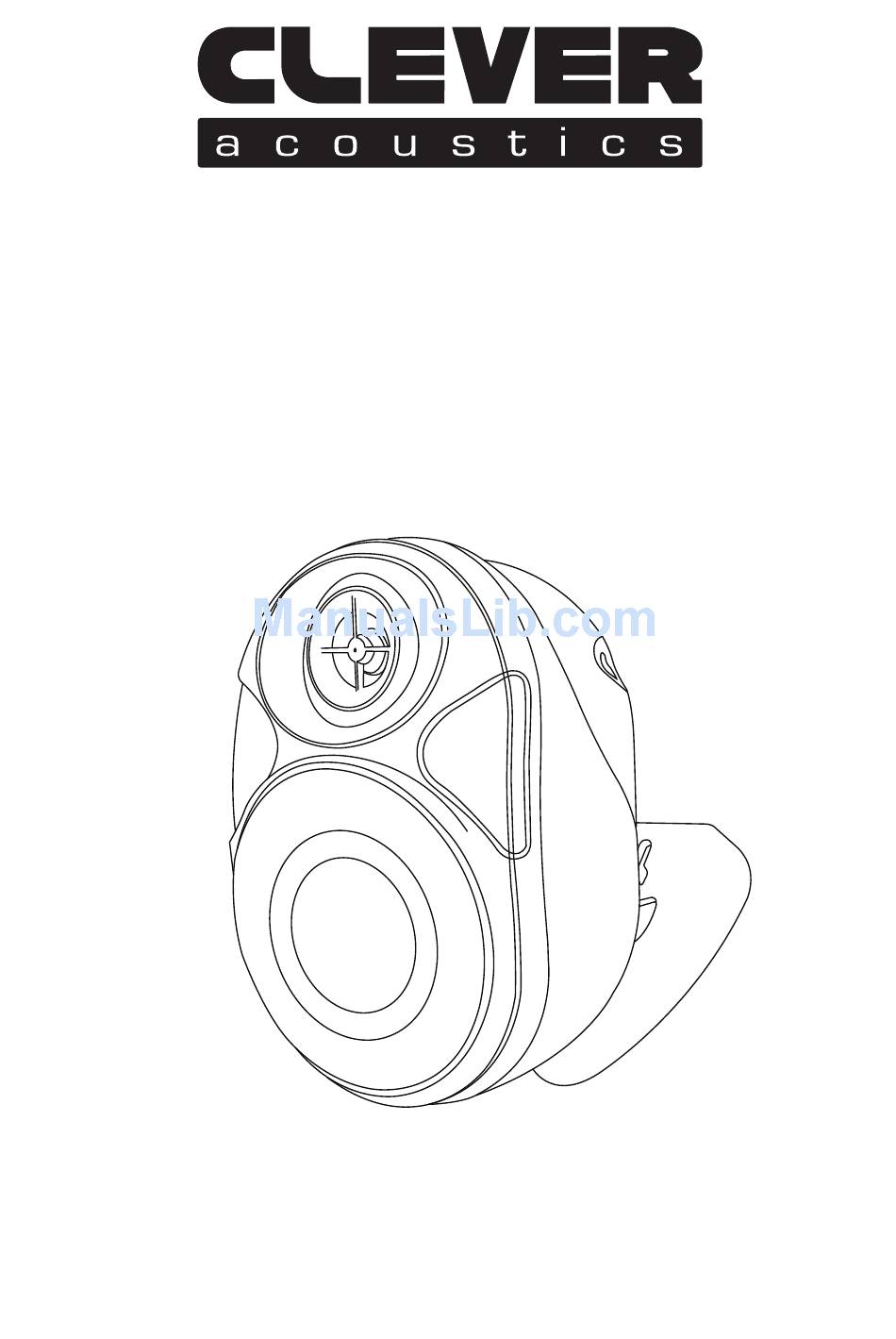

Page 1: Background Music
BGS 20T 100V/8Ω Background Music Loudspeakers User Manual Order codes: CRSP45 - White housing CRSP46 - Black housing... - Page 2 Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all the parts are present. • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • Retain the carton and all packaging materials. • In the event that a fixture must be returned to the supplier, it is important that the fixture is returned in the original carton and packaging. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! DANGER TO LIFE! KEEP THIS EQUIPMENT BEFORE OPERATING THE AWAY FROM MOISTURE, SPEAKER FOR THE FIRST...

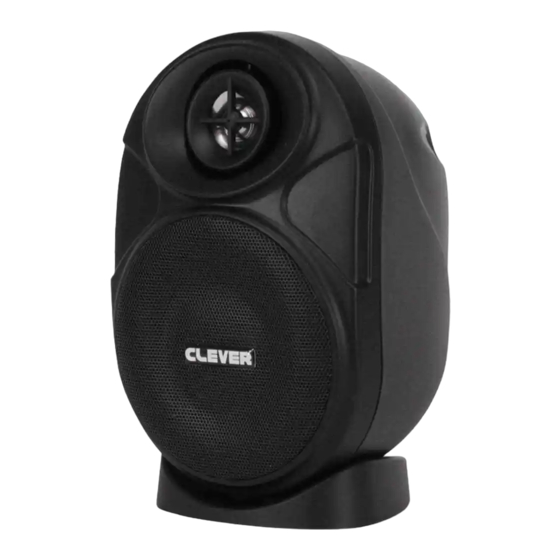

- Page 3 Product overview & technical specifications BGS 20T 100V Background Music Loudspeakers The BGS 20T series loudspeakers feature stylish, ultra compact cabinets ideal for indoor installation where discrete background music and paging is required. The dual purpose bracket/stand makes these units easy to install without removing the bracket. The cabinets can be used on either 8Ω or 100V line systems with 1.5W, 3W and 6W taps available for 100V use. • 2-way loudspeakers • Complete with Quick-Fixx® mounting brackets Specifications BGS 20T • Supplied in pairs Input 100V, 8Ω • Adjustable wattage selection Power taps @ 100V 1.5W, 3W, 6W • Robust white housing Impedance 6.7KΩ, 3.3KΩ, 1.7KΩ • Polypropylene LF Power (RMS) 20W @ 8Ω and Mylar HF Sensitivity (1W/1m) 83dB Maximum SPL (Rated W/1m) 93dB Frequency response 100Hz-18kHz Drivers...
-
Page 4: Installation Instructions
Installation instructions Before attaching the loudspeaker, make sure that the installation area can hold a minimum point load of 10 times the installations weight. (eg 13kg - 130kg point load). The durability of the installation depends very much on the material used at the installation area (building material), such as wood, concrete and brick etc. This is why the fixing material must be chosen to suit the wall material. Always ask a specialist for the correct plug/screw combination indicating the maximum load and building material. Step 1 Fix the mounting bracket to the wall with 3 suitable plug/screw fixings. The ball joint allows you to pivot the loudspeaker around so you can access the mounting bracket for installation. Step 2 After installation, pivot the loudspeaker to select the desired position. At this point, connect the cable/s observing connection polarity and select the wattage tapping. Step 3 Once you have selected the desired position, use an Allen key to tighten the screws on the base of the loudspeaker. This will secured the chosen position and prevent movement from the desired position. www.cleveracoustics.co.uk BGS 20T Series Loudspeakers User Manual... - Page 5 Installation instructions & setup Important installation advice 100V examples: • All loudspeakers have to be Standard 100V line connected to the constant voltage line and wired in parallel. 4 x 20W - 80W load • The output power is adjustable using the switch provided on the rear of the speaker. 100W • As the voltage on the line can Amplifier approach 100V, installation must follow the best practice with double insulated cable being used. Cable runs should be kept away Multi-tap 100V line from any potential source of interference such as 3 phase mains, 20 + 10 + 10 + 2 + 2 + 4 = 48W load data cables, telecom cables etc. • 100V line systems must always be wired in parallel and the total load presented to the amplifier must 100W Amplifier not exceed the rated output of the amplifier or damage can result. • You must NEVER mix 100V line and low impedance speakers on the same system.
-
Page 6: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk BGS 20T Series Loudspeakers User Manual... - Page 7 Clever Acoustics Range Public Address solutions from Clever Acoustics Clever Acoustics wide range of 100V and low impedance products has been designed to offer the installer a comprehensive audio solution. With options for both indoor and outdoor installations the products provide cost effective solutions without compromise on quality or intelligibility. Throughout the whole product portfolio the range has been designed to be installed with minimum fuss and simple touches including cut out templates for the ceiling loudspeaker ranges or Quick-Fixx® fast fit installation brackets featured on the BGS-20T Series. When designing the range of mixer amplifiers our engineers have taken into account that not all amplifiers are tucked away in rack cabinets, with this in mind the MA Series Mixer Amplifiers and SL Series Slave Amplifiers all feature heavy gauge brushed aluminium, black anodised front panels, maximising quality and aesthetics. The range includes: Speakers Amplifiers Accessories Ceiling Mixer Paging microphones • • • Column Slave Volume controls •...
- Page 8 www.cleveracoustics.co.uk BGS 20T 100V Loudspeakers User Manual...
