Page 1: User Manual

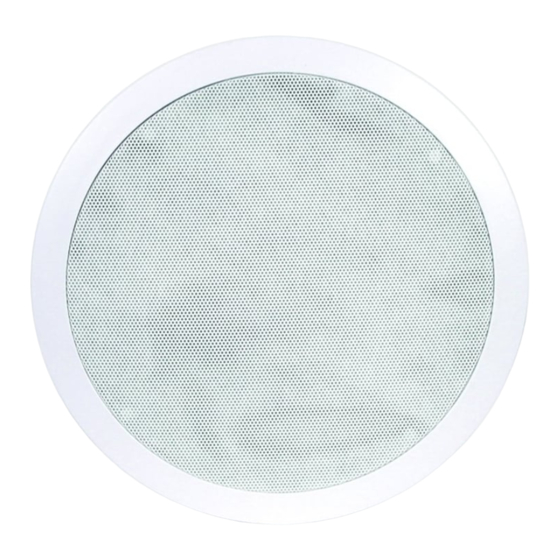

High Power Ceiling Loudspeakers CS 520HP - 100V 5” 20W Order code: CRSP11 CS 630HP - 100V 6” 30W Order code: CRSP12 CS 840HP - 100V 8” 40W Order code: CRSP13 USER MANUAL... - Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the speaker cable come into contact with other cables. • Never remove warning or informative labels from the equipment. •...
- Page 4 • Metal grille, ABS baffle and metal enclosure • Flush mount dog-ear mounting for easy installation • Rotary power tap • Spring terminal connection • Supplied with template to aid installation Specifications CS 520HP CS 630HP CS 840HP Input: 100V, 8Ω 100V, 8Ω...
- Page 5 Identification: 1. Speaker grille 2. Spring clips - Use these clips to install and mount the unit into the ceiling. 3. Speaker housing 4. Speaker cable spring terminals - Use these to connect to your mixer amplifier 5. Wattage selector - Use this to select one of the output wattage taps (100V) or low impedance (8Ω) setting.
- Page 6 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
- Page 7 Dispersion characteristics: CS 520HP CS 630HP CS 840HP...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
