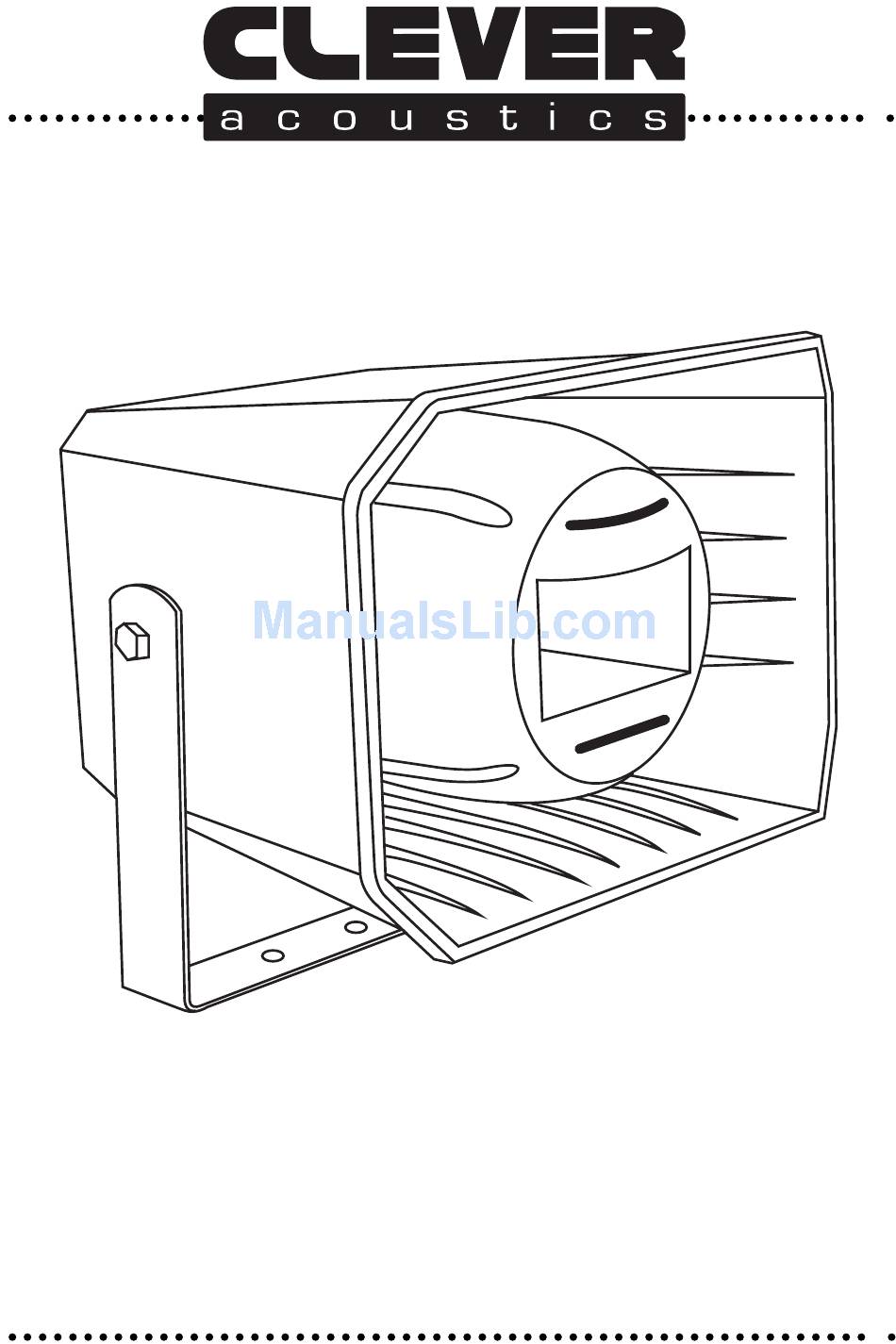

Page 1: User Manual

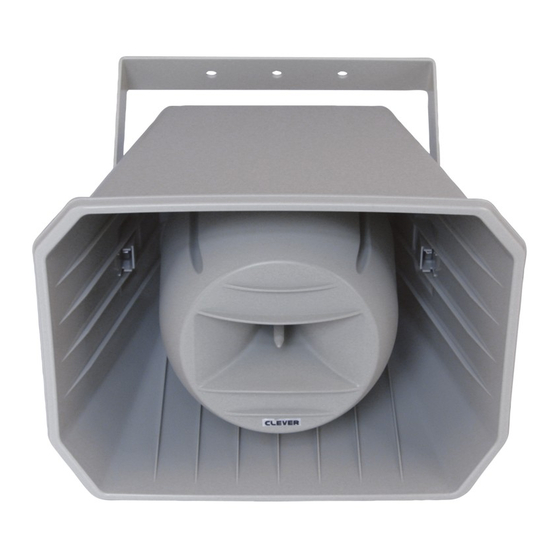

MH 50 - 100V 50W Music Horn Loudspeaker Order code: CRSP01 USER MANUAL... - Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the loudspeaker cable come into contact with other cables. Handle the loudspeaker cable and all mains voltage connections with particular caution! •...
- Page 4 8Ω, 2.9kΩ, 2.2kΩ, 1.1kΩ, 800Ω, 400Ω, 200Ω Power (RMS): Sensitivity (1W/1m): 99dB (±3dB) Maximum SPL (Rated W/1m): 116dB Frequency response: 90Hz-20kHz Drivers: 6" LF, 3" HF Connections: Internal terminal block Dimensions: 255 x 360 x 315mm Weight: IP rating: IP66 Order code: CRSP01...
- Page 5 Identification: 1. Connection cable - Use this to connect to your mixer amplifier using the 70V or 100V connections. To maintain weatherproof rating the connection should be terminated within an IP rated enclosure 2. Mounting bracket - Use this bracket to mount the unit onto surfaces. 3.
- Page 6 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
- Page 7 Dispersion characteristics:...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
