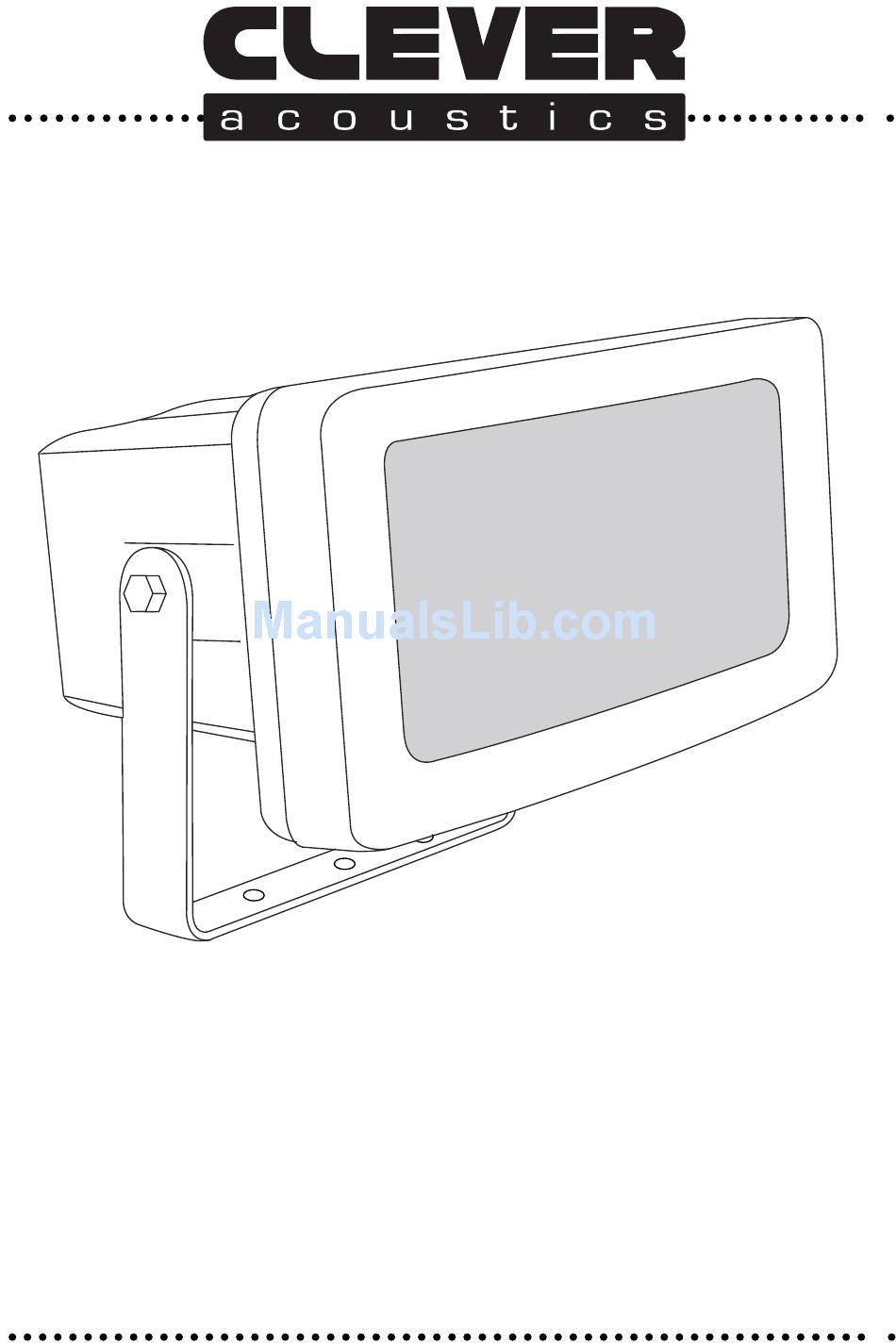

Page 1: User Manual

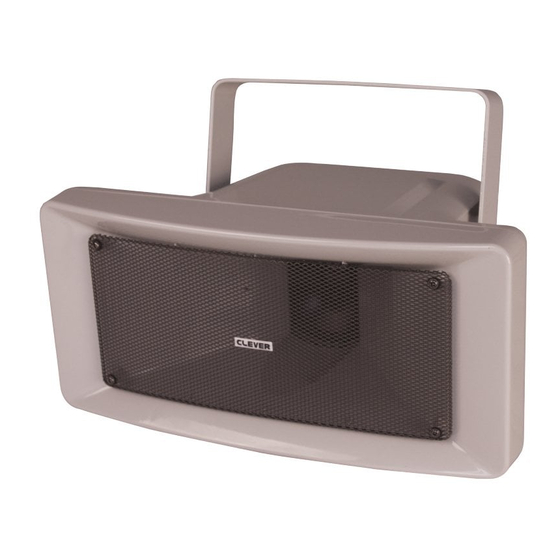

SP 30 100V 30W Music Horn Speaker Order code: CRSP02 USER MANUAL... - Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the speaker cable come into contact with other cables. Handle the speaker cable and all mains voltage connections with particular caution! •...
- Page 4 This 100V music horn speakers are designed specifically for use in permanent audio installations, where reliability and premium sound quality are a must. Highly rugged construction and high efficiency design make this horn speaker perfect for continuous duty applications. This horn speaker is warranted from defects for one year from the date of purchase. Should your horn speaker require service, either within or beyond that warranty period, please contact your Prolight Dealer.
- Page 5 Identification: 1. Connection cable - Use this to connect to your mixer amplifier using the 70V or 100V connections. To maintain weatherproof rating the connection should be terminated within an IP rated enclosure 2. Mounting bracket - Use this bracket to mount the unit onto surfaces. 3.
- Page 6 24V DC INPUT (Optional) POWER AMPLIFIER CONNECT WITH AUDIO PROCESSOR EQUIPMENT, USE THE METAL JUMPER BARS WHEN NOT CONNECTED FOR THE AMP MAINS TO WORK MIC 1 MIC 2 MIC 3 MIC 4 RECORDER EQUIPMENT CASSETTE EQUIPMENT CD PLAYER AM/FM TUNER...
- Page 7 Direction diagram:...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
