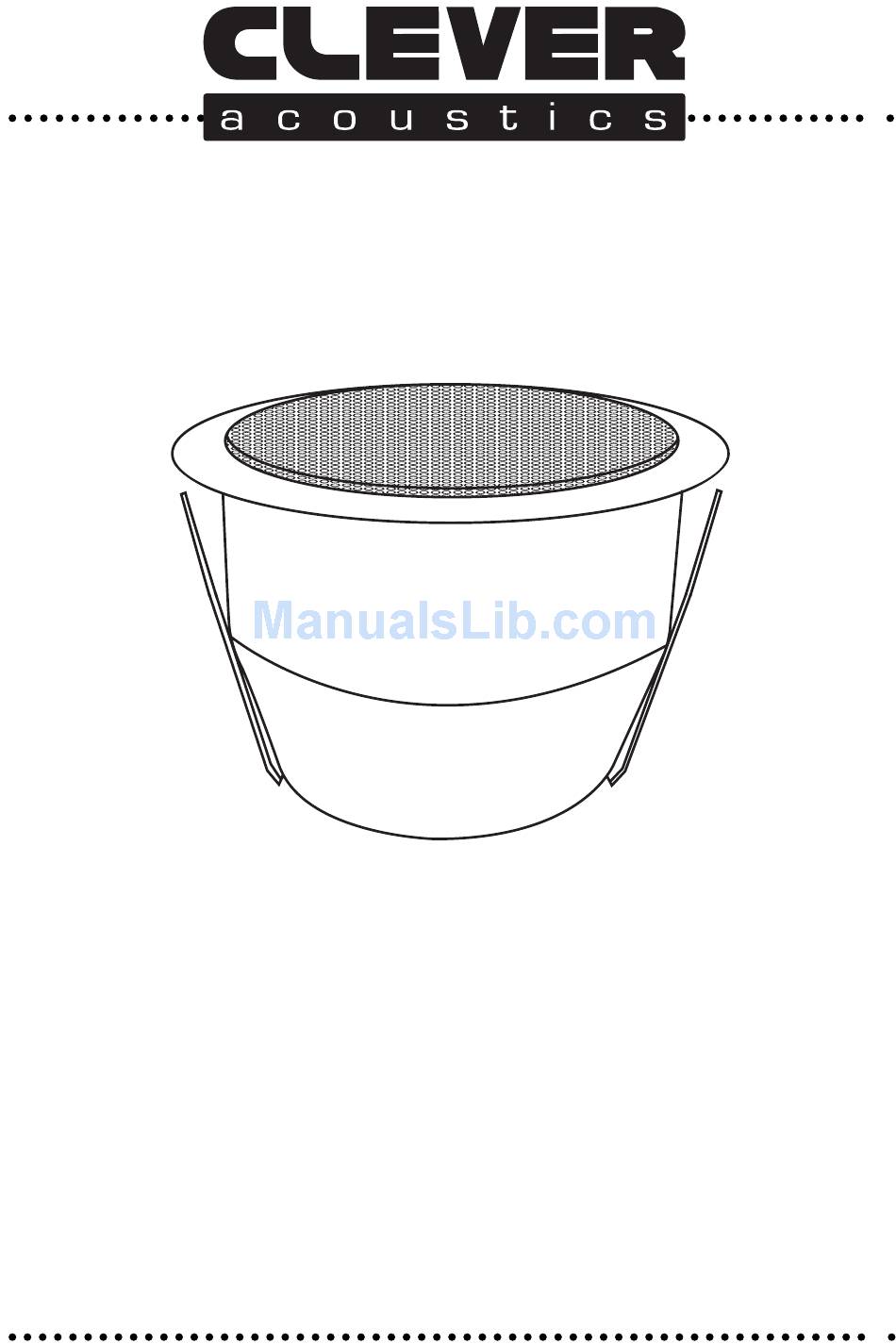

Page 1: User Manual
Ceiling Loudspeakers + Fire Dome CS 56F - 100V 5” 6W Order code: CRSP14 CS 66F - 100V 6” 6W Order code: CRSP15 USER MANUAL... - Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
- Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the loudspeaker cable come into contact with other cables. Handle the loudspeaker cable and all mains voltage connections with particular caution! •...
- Page 4 • Spring clip mounting with “dome first” fast installation system • Ceramic terminal block connection • Supplied with template to aid installation • Designed and manufactured to BS EN54-24 standard Specifications CS 56F CS 66F Input: 100V, 70V 100V, 70V Power taps @ 100V: 0.38W, 0.75W, 1.5W, 3W, 6W...
- Page 5 Identification: 1. Loudspeaker grille 2. Loudspeaker housing (fire dome) 3. Loudspeaker housing locking plates - Use these plates to install the fire dome back can into the ceiling 4. Loudspeaker cable knock outs - Use these sockets to thread the speaker cable through the housing 5.
- Page 6 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
- Page 7 Dispersion characteristics: CS 56F CS 66F...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
