Page 1: User Manual

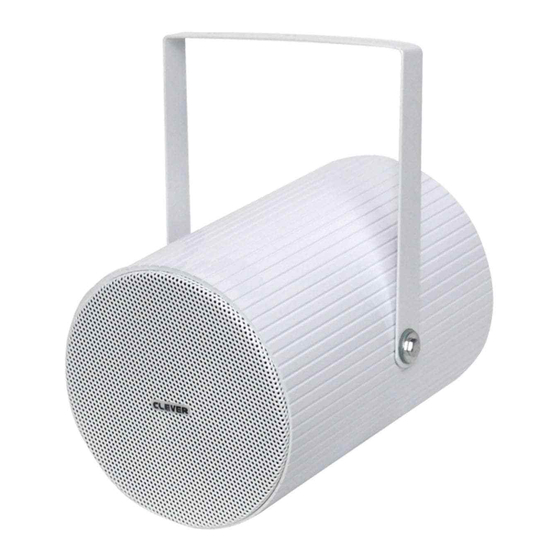

Projector Loudspeakers PS 620 PS 620T PS 620 - 100V 6” 15W Order code: CRSP17 PS 620T 100V 6” 20W Bi-directional Order code: CRSP18 USER MANUAL... -
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during... -
Page 3: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the loudspeaker cable come into contact with other cables. Handle the loudspeaker cable and all mains voltage connections with particular caution! •... - Page 4 • Weather resistant construction suitable for outdoor installation in sheltered locations • 6” full range speaker unit delivering full range hi-fi quality sound • 2 Power outputs @ 100V (PS 620) • 3 Power outputs @ 100V (PS 620T) • Metal grille and aluminium enclosure •...
- Page 5 Identification: 1. Loudspeaker grill 2. Loudspeaker housing 3. Loudspeaker mounting bracket - Use this mounting bracket to attach the loudspeaker onto the wall. 4. Loudspeaker cable - Use these sockets to connect to the mixer amplifier. Select and connect colour coded cores as per table to select desierd wattage tap. Installation The projector speaker is designed to be installed onto a wall.
- Page 6 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
- Page 7 Dispersion characteristics: PS 620 PS 620T...
- Page 8 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
