Setting Compensation Values

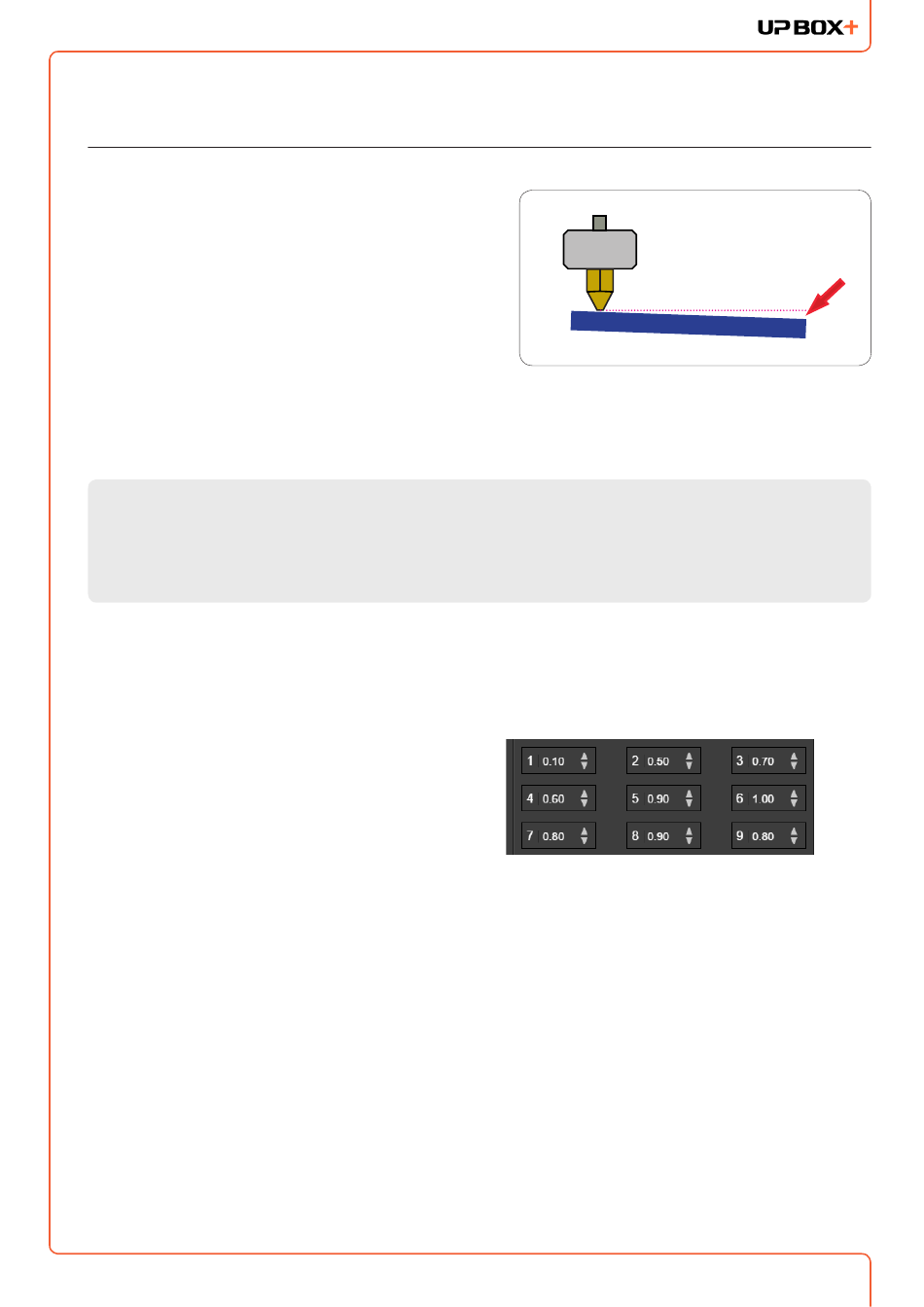

As shown on the left, when the platform is at the
"nozzle height", only part of the platform is close
enough to the nozzle. Therefore, you need to
set the compensation values for all of the other
calibration points to inform the printer about
the distance between the nozzle and the print
surface throughout the XY plane.
After setting the nozzle height, the drop-down menu next to the nine position buttons will be
available.
A compensation value between 0–1.0mm will be available for selection.
To calculate the compensation value:
Platform Height - Nozzle Height = Compensation Value
For example: setting the compensation value
for calibration point 3. Assume the "platform
height" is 208.7 and the "nozzle height" is 208.
The compensation value should be set to 0.7.
After setting 0.7 for compensation, the nozzle will
move to point 3 and the platform will rise 0.7mm.
Now use the Calibration Card again to verify the
space. After setting all calibration points, click
"Save" to finish the calibration.
