FANATEC CSL Elite Racing Wheel Manual page 21

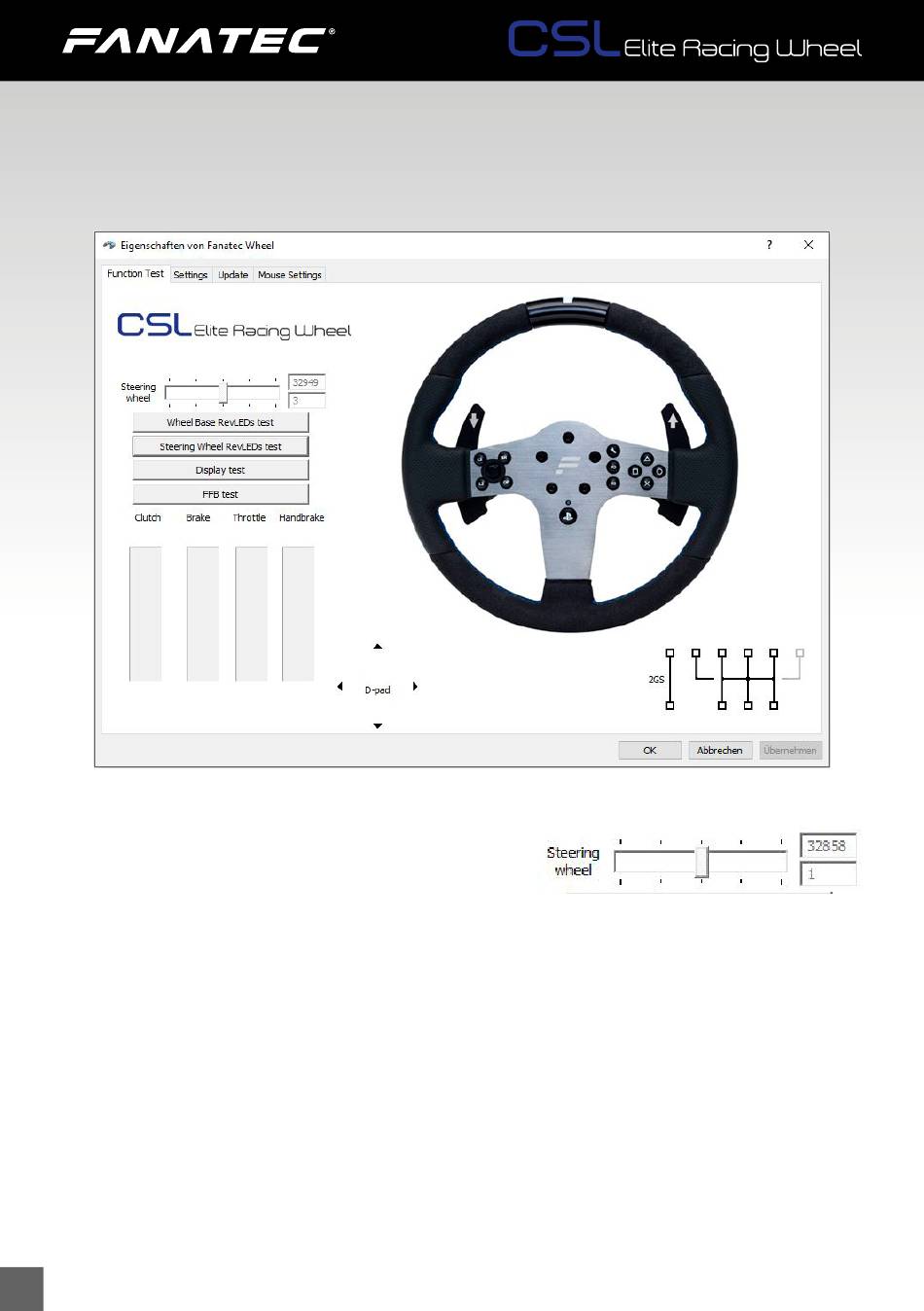

The 'Function Test' tab will display the attached Fanatec Steering Wheel. In
®
this example a CSL Elite Steering Wheel (PS4 version) is shown below:
TM
This window provides a lot of diagnostic information and gives the option to test
the hardware and peripherals:
The indicator bar shows the current steering
wheel position, the upper box shows the posi-
tion in digits, the lower box shows the position
as an angle (positive and negative angle re-
lated to the calibrated wheel center position).
The "Display test" button activates a signal flow on the LED display of the at-
tached Fanatec steering wheel and activates all LED display segments so you
®
can check if all LED display segments work properly.
The "FFB test" button starts a force feedback test and activates the motor of
the CSL Elite Racing Wheel to check proper functionality.
The "Wheel Base RevLEDs test" button starts a signal flow on the LED bar
on the upper front side of the CSL Elite Wheel Base and activates them to test
proper functionality of each single LED.
*PC compatibility not tested nor endorsed by Sony Interactive Entertainment LLC.
