Parts Listing

Model 108 Boot Components (continued)

The Item numbers below are associated with the parts list drawing two pages prior.
I te m Des cr ip ti o n
-- Complete System
1
-- Straight-Out Lower Boot Assembly
2
-- Straight-Thru Lower Boot Assembly
1B Straight Out Upper Boot
2 Transfer Plate Assembly
3 Slide
4 Slide Shield
5 Chain
6 Ring
10 Tube Insert
11 Boot Body Weldment
3
18 Sealing Washer
3
19 5/16-18 Lock Nut
20 Baffle
3
21 Cover Weldment
3
22 Back Plate Assembly
30 Twin Boot Weldment
31 Center Baffle Plate
32 Baffle Weldment
1
Refer to the Straight-Out Boot Systems on for miscellaneous Straight-Out Lower Boot Assembly compo-
nents.See "Model 108 Boot Components" on page 42.
2
Items 2 through 32, as listed above, make up the Straight-Thru Lower Boot Assemblies.
3
These items may be ordered as an assembly under Chore-Time Part No. 6197.
44

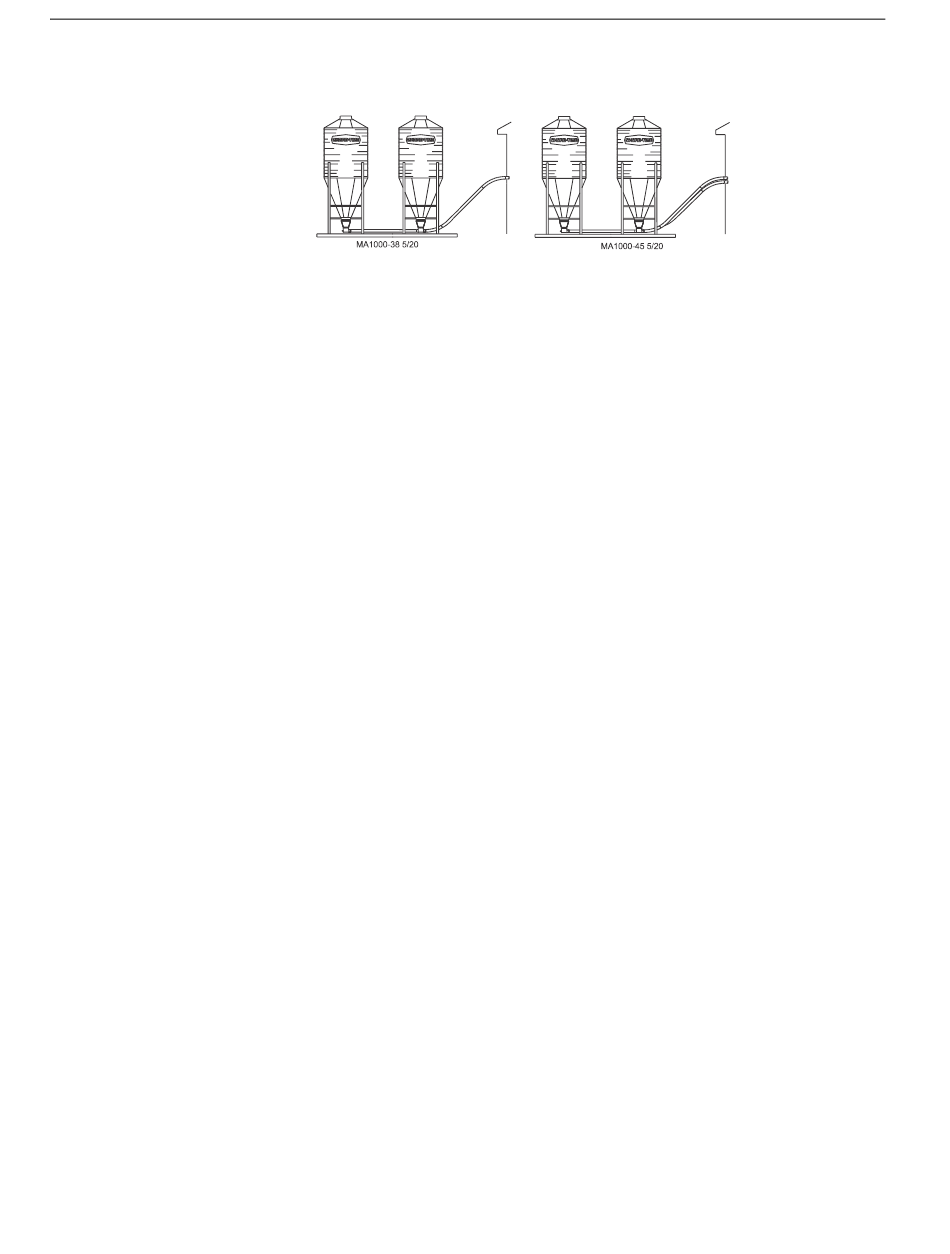

Straight-Thru
Sing le B oot Syst em
34333
34341
34335
6093R/C
4925
4357
4876
2128-250
1706
34337
30385
39-20155
2148
14239
6301
6298
- - - -
- - -
- - - -
FLEX-AUGER® Feed Delivery System
Straight-Thru
Twin Boot System
35616
35612
35611
6093R/C
4925
4357
4876
2128-250
1706
34337
- - - -
39-20155
2148
- - - -
6301
6294
35617
35624
35615
MA1032F
