Wiring

Wiring

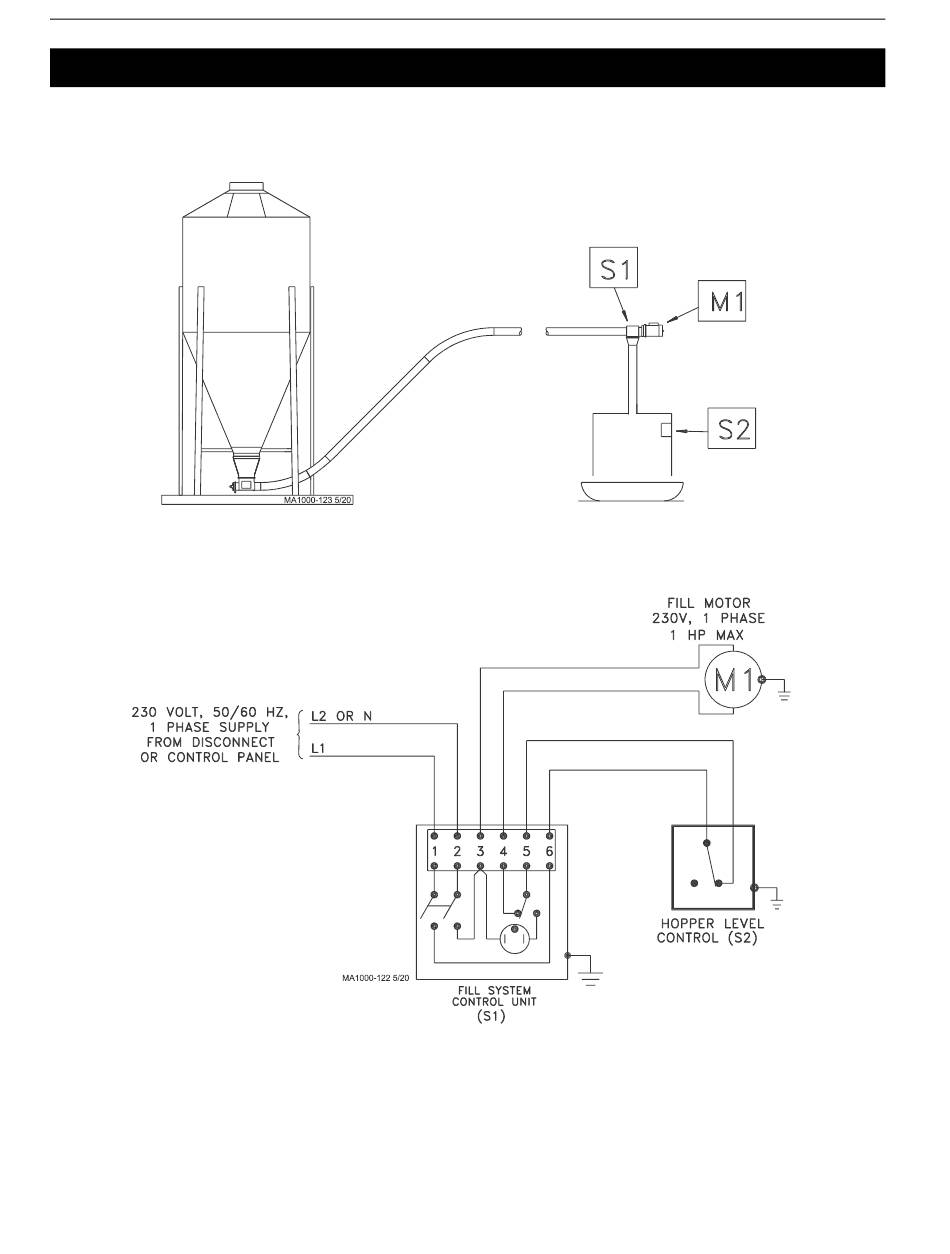

Electrical Component Location Diagrams

Single Boot Systems using a Hopper Level Control

Model 108 Systems using a Hopper Level Control Switch

(1 H.P. or smaller - Single Phase)
Important: If an Agri-Time Time
Clock is to be used, refer to
MA1061 Instruction for control
wiring.
If an Auger Timer is to be used,
refer to MA951 Instruction for
control wiring.
32
Note: Use this graphic along with each of the wiring diagrams
in this manual to assist in determining switch, power unit, and
control unit locations.
Important: If system is to be controlled
by a Proximity Drop Tube Switch, refer to
MA1044 Instruction for switch wiring.
If the system is to be controlled by a
mechanical Drop Tube Switch, refer to
MA1099 Instruction for switch wiring.
FLEX-AUGER® Feed Delivery System
MA1032F
