Installation

Long Elevated Systems

Bin to Bin Support Systems

Straight-Through Tandem Systems

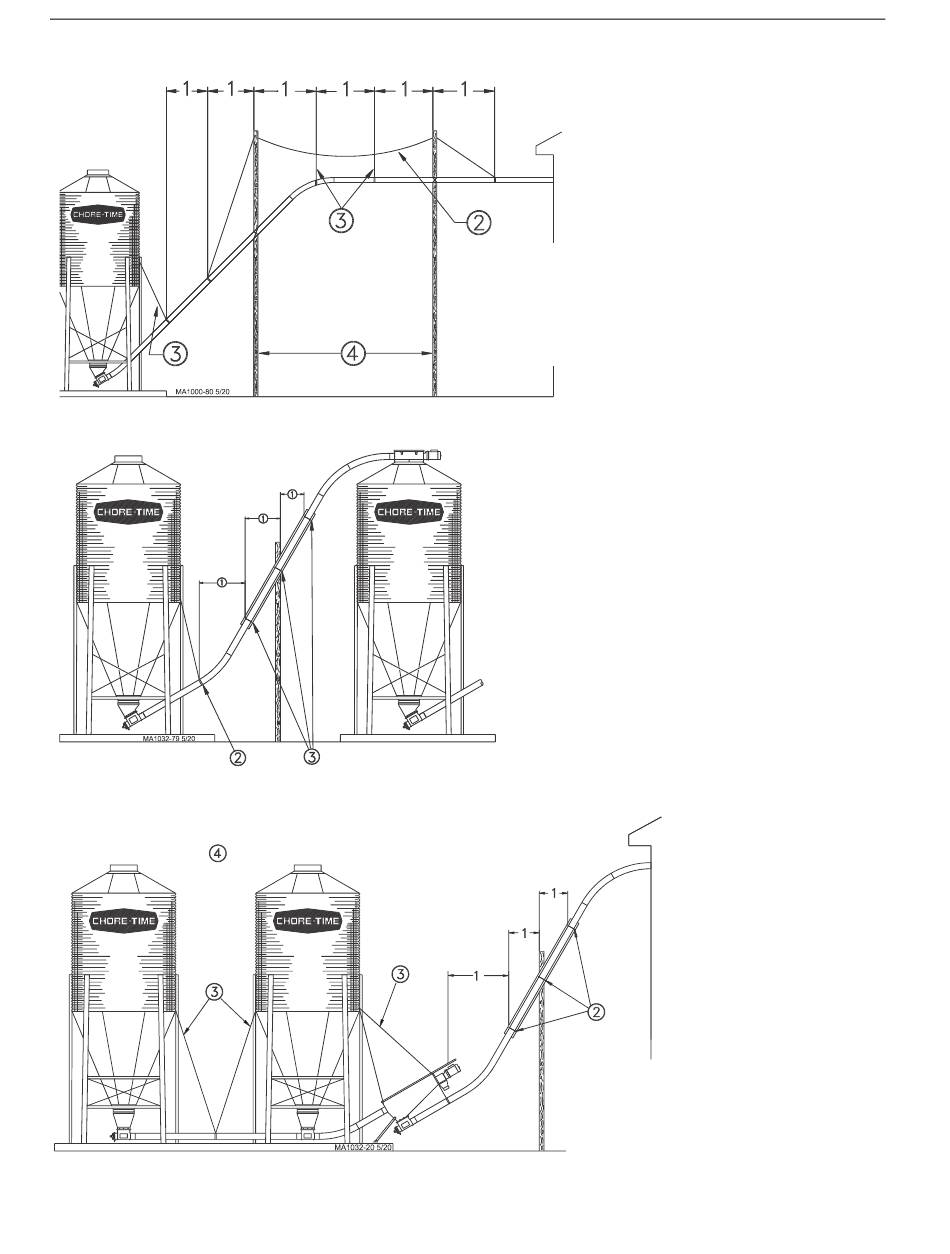

Figure 12.Straight-Through Tandem Systems
24
FLEX-AUGER® Feed Delivery System
K e y D e s c r i p t i o n
1 5 ' ( 1 . 5 m ) f o r P V C S y s t e m s
1 0 ' ( 3 m ) f o r S t e e l S y s t e m s
2 M a s t e r C a b l e
3 Ch a i n o r C a b le
4 2 0 ' ( 6 m ) M a x i m u m
Figure 10.Long Elevated Systems
K e y D e s c r i p t io n
1 5 ' ( 1 . 5 m ) f o r P V C S y s t e m s
1 0 ' ( 3 m ) f o r S t e e l S y s t e m s
2 C h a in o r C a b le
3 P l a c e c l a m p s h e r e .
Figure 11.Bin to Bin Support
K e y D e s c r i p t io n
1 5 ' ( 1 . 5 m ) f o r P V C S y st e m s
1 0 ' ( 3 m ) f o r S t e e l S y s t e m s
2 P la c e c la m p s h e r e .
3 C ha in o r Cable
4 T a n d e m F e e d B i n s
MA1032F
