Installation

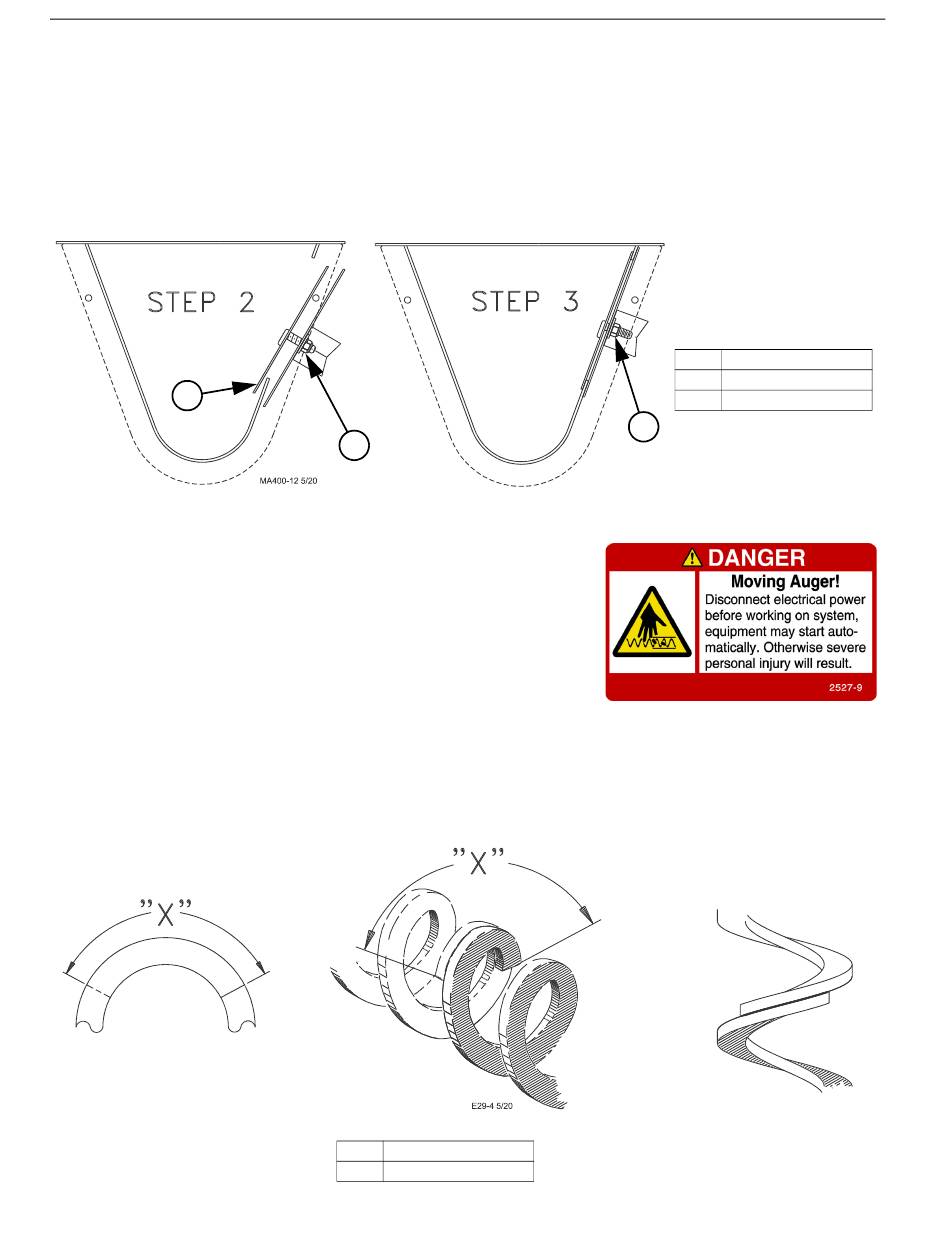

Cover Plate Installation

1.Loosen Hex Nuts to the end of studs.
2.Start lower side of cover plate (Item 2) in boot opening.
3.Slide the cover plate up as far as possible so that plate catches top of boot opening.
4.Hold the cover securely while tightening the Hex Nuts.
Important!
DO NOT replaced lock nuts! Replacing them will violate CE compliance, & will void warranty and may
cause personal injury or even death!
2

Auger Brazing

If the auger needs to be spliced or lengthened, locate the brazed joint closer
to the power unit to minimize feed flow restriction in the line.
To align the auger for brazing, lay it in an 18" (46 cm) piece angle iron and
clamp securely.
Rotate the auger to allow both the inside and outside edges of the augers to
be brazed.
Butt the ends of the auger against each other. DO NOT SCREW ONE AUGER INSIDE THE OTHER--This
restricts the feed flow.
Lap the augers approximately 2" (50 mm), as shown in Figure 18.
A bronze, flux-coated rod is recommended. The joint should be well filled and smooth so that it does not wear
against the tube. Allow the joint to air cool.
28
1
Figure 17.Cover Plate Installation
Key Description
1 2" [50 mm)
Figure 18.Cover Plate Installation
FLEX-AUGER® Feed Delivery System
Item Description
1 Lock Nut
2 Cover Plate
1
MA1032F
