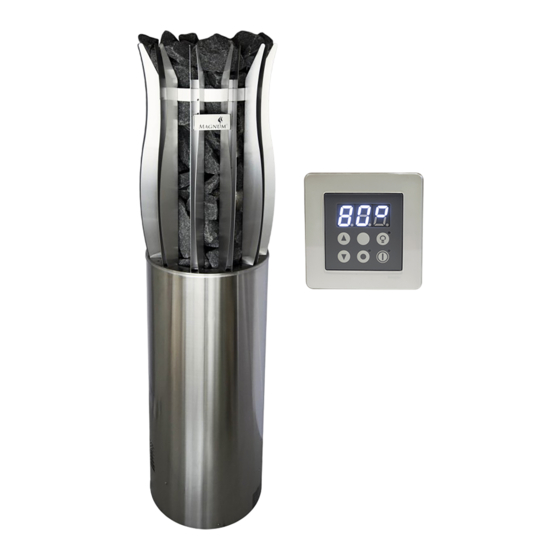

- Page 1 6.6 kW – 9.0 kW – 10.5 kW MAGNUM Cenik and Lite Sauna Stove 6.6 kW – 9.0 kW – 10.5 kW Magnum Ruutu L and C 6.6kW - 9.0kW 10.5kW Use and Installation With Finlandia and Magnum RC Control Centers...
-
Page 2: Table Of Contents
Use and installation manual for a MAGNUM sauna stove 16.06.2015 2 Table of contents: Safety instructions: Using the device - Finlandia Control Center ............4 Control functions - Finlandia Control Center ............. 4 Control functions - Magnum RC Control Center ..........5 Menu structure - Finlandia Control Center............ -
Page 3: Safety Instructions
Use and installation manual for a MAGNUM sauna stove 16.06.2015 3 Safety instructions: Read these instructions carefully before installing and using the sauna stove. These instructions are intended for the use of the owner of the sauna and the electrician who installs the sauna stove. -
Page 4: Using The Device - Finlandia Control Center
Use and installation manual for a MAGNUM sauna stove 16.06.2015 4 I.Using the device - Finlandia Control Center Section I.1 Control functions - Finlandia Control Center Sauna stove On/Off Menu Decrease Increase Lights button The heating/timing indicator light Sauna stove light’s indicator light... -
Page 5: Control Functions - Magnum Rc Control Center
Use and installation manual for a MAGNUM sauna stove 16.06.2015 5 1.2 Control functions - Magnum RC Control Center Sauna stove On/Off Menu Decrease Increase Lights button The signal light of heating/timing Signal light of the stove light Signal light of the menu settings... -
Page 6: Menu Structure - Finlandia Control Center
Use and installation manual for a MAGNUM sauna stove 16.06.2015 6 1.3 Menu structure - Finlandia Control Center Default status Target temperature Heating time Timer The adjustment menus of the device are shown in the image above. The user can move from one menu to another using the Menu button. -
Page 7: Using The Sauna Stove
Use and installation manual for a MAGNUM sauna stove 16.06.2015 7 Using the sauna stove Section II.1 Adjustable settings Parameter Adjustment step Adjustment Default Note! step value 40…110 °C Target 1 °C 60 °C temperature 1 h…6 h 30 min Heating time see section 2.3... -
Page 8: Timer
Use and installation manual for a MAGNUM sauna stove 16.06.2015 8 Section II.4 Timer You can move from the default mode to the timer by pressing the Menu button ) buttons are used to change the timer’s ˄ ˅ three times in a row. The (+/ ) and (–/... -
Page 9: Directions For Using The Sauna
Use and installation manual for a MAGNUM sauna stove 16.06.2015 9 Section II.6 Directions for using the sauna Heat the sauna stove once before taking it into use, as the protective substances in the new stones may give off odors while the sauna stove is heating. -
Page 10: Installation Of The Sauna Stove
Use and installation manual for a MAGNUM sauna stove 16.06.2015 10 III.Installation of the sauna stove The electrical installation may only be performed by a qualified electrician. Instructions for electrical installation are provided in the circuit diagram in these installation directions and on a sticker in the sauna stove. -
Page 11: Installation
Use and installation manual for a MAGNUM sauna stove 16.06.2015 11 Section III.1 Installation: Remove the stainless steel frame from the upper part of the sauna stove. Remove the protective plastics. Set the sauna stove's lower part in the location you have chosen for the stove in a way that ensures that the maintenance/installation hatch at the foot of the sauna stove faces an open space. - Page 12 Use and installation manual for a MAGNUM sauna stove 16.06.2015 12 Connect the thermostat sensor according to Section 3.2. Connect the control panel according to Section 3.3. Close the hatch at the lower part of the sauna stove. Connect the other end of the feed cable to the outlet. (Note: the upper edge of the outlet should be at most 400 cm from the floor) Test the functioning of the resistors by turning the sauna stove on.
-
Page 13: Installing The Thermostat Sensor
Yellow connector To circuit card All Magnum sauna stoves bought from 1 October 2015 onwards have been equipped with the new silicone cable. Connect the connector to the circuit card’s connector and press it carefully all the way down. When installing the thermostat sensor on the wall, the distance from the roof to the upper edge of the sensor should be 100 mm. -
Page 14: Control Panel Installation
Use and installation manual for a MAGNUM sauna stove 16.06.2015 14 Section III.3 Control panel installation Controller's connector Counterpart to the controller's connector on the circuit card on the right Connector Color On circuit card number: Brown Gray Pink RELAY... -
Page 15: Installing The Control Centers In The Sauna Room
Use and installation manual for a MAGNUM sauna stove 16.06.2015 15 Installing the control centers in the Sauna room Finlandia 1. Check the central unit’s height and distance in the installation manual. Chapter 4.1 2. Use a box drill to drill a 70 mm hole in the panel for the box. Be careful not to drill all the way to the insulation! If you penetrate the insulation plate/foil, repair it with aluminum tape. -
Page 16: Installation Images
Use and installation manual for a MAGNUM sauna stove 16.06.2015 16 4 Installation images 4.1 Thermostat and Controller A. The minimum distance of the thermostat from the upper edge of the sauna stove is 500-1000 mm. PAY ATTENTION TO THE INCOMING AIR VALVE. If incoming air cannot be directed away from the thermostat, the valve may not be installed less than 1000 mm from the incoming air valve. -
Page 17: Ventilation In The Sauna Room
Use and installation manual for a MAGNUM sauna stove 16.06.2015 17 4.2 Ventilation in the sauna room Power ventilation for the sauna and the electric stove 1. Incoming air 2. Outgoing air Starsauna Oy Technical support: Pistotie 4 info@magnumkiuas.fi 15860 Hollola, Finland... -
Page 18: Piling The Stones In The Sauna Stove
Use and installation manual for a MAGNUM sauna stove 16.06.2015 18 4.3 Piling stones in the sauna stove Preparations 1. Ensure that the control panel, the temperature sensor, any floor heating reduction and the sauna stove have been correctly connected to the power supply by an electrician. -
Page 19: Images Showing The Sauna Stove
Use and installation manual for a MAGNUM sauna stove 16.06.2015 19 4. Stop piling the stones when you have reached a level of approx. 5 – 10 cm from the upper section of the lower part. The upper part is installed inside the lower section. -
Page 20: The Sauna Stove's Wall Condector
Use and installation manual for a MAGNUM sauna stove 16.06.2015 20 4.5 Sauna stove wall bracket 1. Fit the brackets to the sauna stove/wall before attaching to the wall. In Lite/Original/Cenik sauna stoves, the bracket can be installed to the outer edge or between the vertical profile;... -
Page 21: Technical Information And Safety Distances Of The Sauna Stoves
Use and installation manual for a MAGNUM sauna stove 16.06.2015 21 5. Technical information and safety distances of the sauna stoves 5.1 Technical information: Original 6.6 Original 9.0 Original 10.5 Power 6.6 KW 9 KW 10.5 KW Diameter of the lower part... -
Page 22: Safety Distances
Use and installation manual for a MAGNUM sauna stove 16.06.2015 22 Ruutu L 6,6kW Ruutu L 9kW Ruutu L 10,5kW Power 6,6 KW 9 KW 10,5 KW Diameter 320 mm 320 mm 320 mm Height 1200 mm 1200 mm 1400 mm... - Page 23 Use and installation manual for a MAGNUM sauna stove 16.06.2015 23 Original model's dimensions and safety distances for the upper part: Width: Protective Upper part: distance: Vase 6.6 kW and 9 kW 360 mm 70 mm Tulip 6.6 kW and 9 kW...
- Page 24 Use and installation manual for a MAGNUM sauna stove 16.06.2015 24 Images showing the safety distances The distances are always measured from the widest part! Starsauna Oy Technical support: Pistotie 4 info@magnumkiuas.fi 15860 Hollola, Finland...
-
Page 25: Warranty
Use and installation manual for a MAGNUM sauna stove 16.06.2015 25 6. Warranty Starsauna Oy (the manufacturer) grants warranty for the products it manufactures according to these terms and conditions. For private/apartment use, the warranty period is 24 mths from the delivery date. The receipt, the order confirmation about the purchase of the sauna stove, the receipt log of the construction site or other corresponding specification can all be used as the warranty certificate. -
Page 26: Connection Diagram
Use and installation manual for a MAGNUM sauna stove 16.06.2015 26 7. Connection diagram Starsauna Oy Technical support: Pistotie 4 info@magnumkiuas.fi 15860 Hollola, Finland... -
Page 27: Problems / Troubleshooting
Use and installation manual for a MAGNUM sauna stove 16.06.2015 27 8. Problems / troubleshooting: Why is the sauna stove not heating the sauna? Check the following: 1. Is the power on? 2. Is the adjusted temperature higher than the temperature of the sauna? 3.
