Claypaky REFLEXCTXION Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Page
Contents
2
1.
3
2.
4
3.
4
4
5
5
7
4.
7
8
9
5.
10
6.

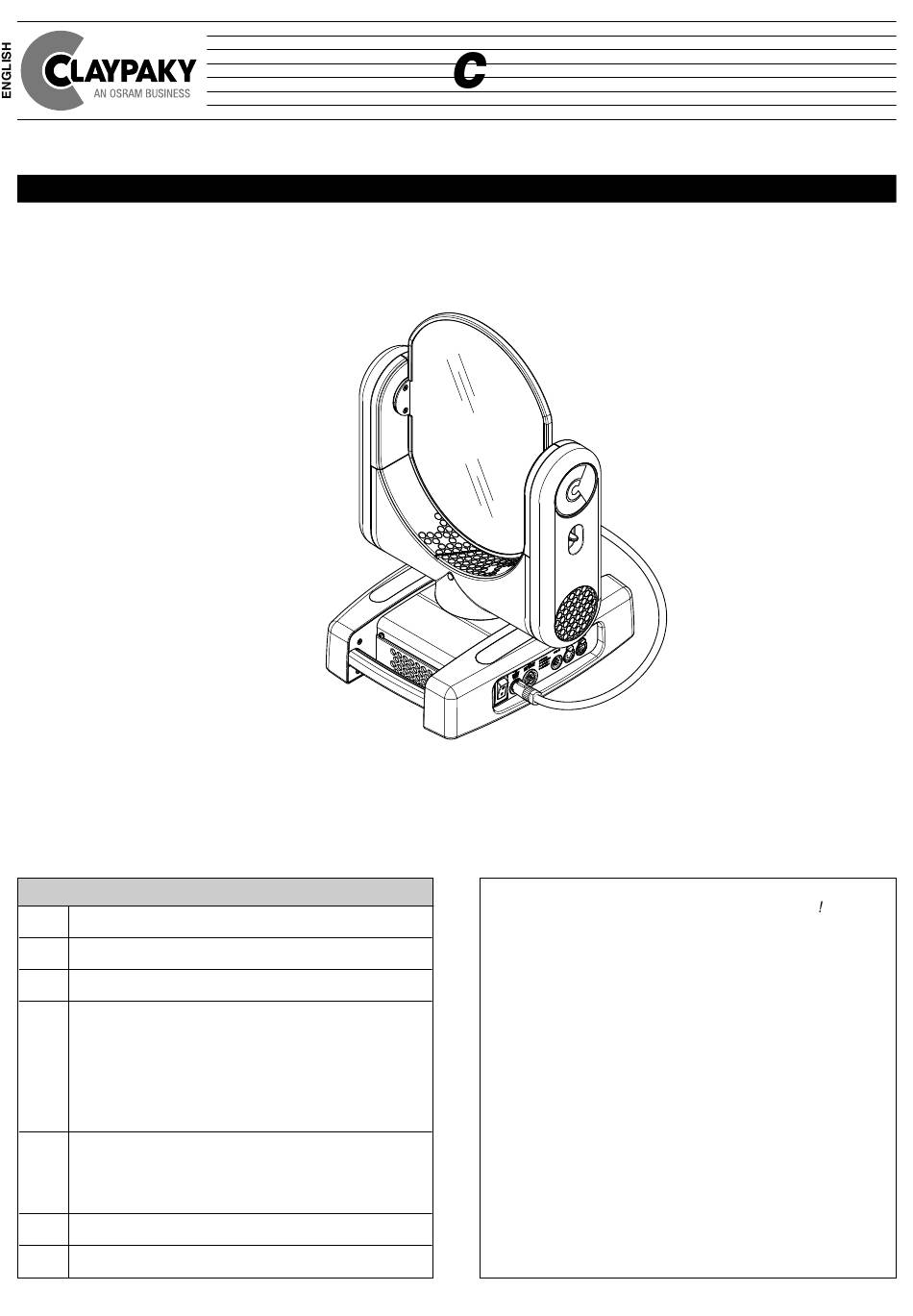

REFLE TXION
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
1
CA3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REFLEXCTXION and is the answer not in the manual?

Questions and answers

Related Manuals for Claypaky REFLEXCTXION

Summary of Contents for Claypaky REFLEXCTXION

  • Page 1: Table Of Contents

    We thank you for your custom. Please note that this product, as all the others in the Safety information rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up meet your expectations and requirements.

  • Page 2: Safety Information

    1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: [FIS01W - Safety informatio ReflectXion] INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: www.claypaky.com...

  • Page 3: Unpacking And Preparation

    2. UNPACKING AND PREPARATION 2x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 REFLE TXION...

  • Page 4: Installation And Start-Up

    3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the fixture - Fig. 4 The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the fixture is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the fixture and then connected to the fixing point at the centre of the base.

  • Page 5: Connecting The Control Signal Line: Dmx / Art-Net

    In/Out True1 Mains Max 15 fixtures Mains Max 1600 VA Connecting to the mains supply - Fig. 7 Connecting fixture to fixture - Fig. 7a 3.3 Connecting the control signal line: DMX / Art-Net Connecting to the control signal line DMX) - Fig. 8 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity.
  • Page 6 Reversal of the display - Fig. 10 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Maintenance

    • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc.

  • Page 8: Battery Removal

    4.2 Battery removal Battery not replaceable. The following information are intended to remove the battery before disposal Battery removal - Fig. 12. This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force.

  • Page 9: Specifications

    5. SPECIFICATIONS (??.??") (15.28") (15.39") (23.62") (18.35") (15.28") (11.57") POWER SUPPLIES ELECTRONICS S FETY SPECIFIC TIONS AC power input Neutrik PowerCON True1 100- • Long life self-charging battery. • Max ambient temperature 40°C (104°F). 240V, 50/60 Hz. • Function reset via on-board menu. •...

  • Page 10: Cause And Solution Of Problems

    6. CAUSE AND SOLUTION OF PROBLEMS THE FIXTURE WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Signal transmission cable faulty or disconnected. Replace the cables. Incorrect addressing.
  • Page 11 REFLE TXION...
  • Page 12 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
