Foreword Thanks for purchasing COMICA WM200 UHF wireless microphone. To ensure a good using experience and customers’ physical safety, please carefully read this instruction before using and properly assemble and operate. Main Features . Dual Transmitters Triggered by One Receiver, A/B Double Group Options .
Notice Transmitter should be placed at a distance more than 10cm from Receiver. When the distance is less than 10cm, Receiver’s wireless signal receiving part will take protect action to shut down the receiving wireless signal, then audio may be intermittent, which is normal When using auto IR sync, please stay within 30cm, otherwise the signal may be too weak and the sync will not be successful...

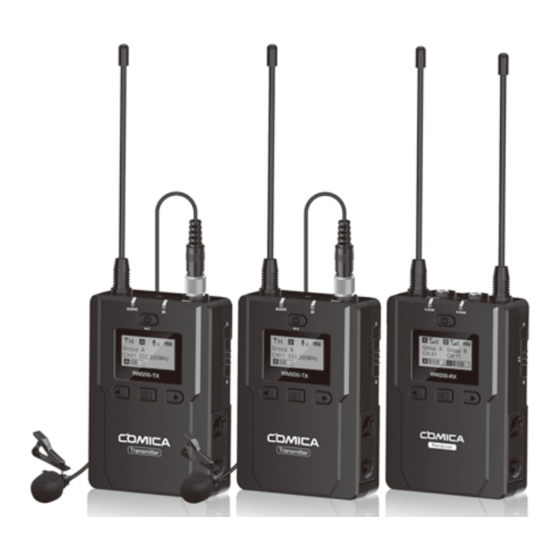

Multiple Selections: WM200(A) = 2TX + RX WM200(C) = TX + RX WM200-TX WM200-RX WM200-HTX WM200/300-XLR For the method of WM200/300-XLR using, please refer to the user manual that comes with the product...
Page 6
Accessories: 3.5mm Mic Audio Input Cable 3.5mm-3.5mm Audio Output Cable 3.5mm-XLR Audio Output Cable USB-C Charging Cable Belt Clip Cold Shoe Mount Wind Mu Portable Box User Manual Warranty Card CVM-WM200 UHF Wireless Microphone USER MANUAL The accessories of each combination include: WM200(A)= x2 + x3 +...
Page 7
Components and Instruction Components Lavalier Transmitter (TX) Antenna Matching Status Indicator Sound Status Indicator Power / Muting Button LCD Screen Function Selection Button - SET Function Menu Function Selection Button + IR Sensor MIC / LINE IN External Input Group Selection Switch Battery Tray 1/4 Mounting Hole Belt Clip...
Page 8
Hand-held Transmitter (HTX) Microphone LCD Display Power / Muting Button IR Screen Low Cut Filter/Normal Audio Switch Signal Strength “High/Low” Switch High...
Page 9
Receiver (RX) Group A Antenna Group B Working Status Indicator Group A Working Status Indicator Power Switch LCD Screen Function Selection Button - SET Function Menu Function Selection Button + 3.5mm Audio Output Socket IR Sensor 3.5mm Monitoring Socket Group B Antenna Group Selection Switch Battery Tray Belt Clip...
Page 10
Function Button Instruction Lavalier Long Press Power On / O Transmitter Muting Mode(This function is only Power / Muting Button / Receiver for transmitter, when the mute Short Press function is turned on and the screen is lighted up) Long Press Enter the function adjustment menu SET Function Menu 1.Confirm the selected function Short Press...
Page 11
Low cut function: Appropriately remove the low frequency part of the sound, reduce the ambient noise of the low frequency part, to make sound more clean and clear. Indicator Light Instruction Normal Recording Status (This state is only for the transmitter, when the channel Green Light Keeps on matches successfully, then...
Page 12
Installation and Usage Lavalier Transmitter 1. Install two AA batteries into the battery tray according to the positive and negative electrode. It supports external power-supplying through USB-C Plug When there is any need for long time using, external power bank is better for power supplying instead of using AC-DC power to avoid noise problem USB-C Plug...
Page 13
2. Insert the 3.5mm audio input cable into MIC socket 3. Long press the power button to turn on the transmitter...
Page 14
4. Place the MIC at the audio source and check the working status according to the volume indicator on the screen Group A Audio Dynamic Display Bar 5. Insert the belt clip to the connection hole 6. After the channel matched with the receiver, it can be used Please refer to screen operation instruction for channel matching.
Page 15
Hand-held Transmitter 1. Install two AA batteries into the battery tray according to the positive and negative electrode 2.Long press the button switch to turn on the hand-held transmitter 3. After the channel matched with the receiver, it can be used Please refer to screen operation instruction for channel matching.
Page 16
Receiver 1. Install two AA batteries into the battery tray according to the positive and negative electrode. It supports external power-supplying through USB-C Plug When there is any need for long time using, external power bank is better for power supplying instead of using AC-DC power to avoid noise problem USB Plug POWER...
Page 17
2. Connect the receiver to the video device through the Cold Shoe Mount 3. Connect one end of the 3.5mm-3.5mm audio OUTPUT cable to the OUTPUT port of WM200RX and another end to the AUDIO INPUT port of the camera or camcorder.Insert the headphone into the 3.5mm monitoring port for real-time monitoring and then long press power button to trun on the receiver.
Page 18
3.5mm Audio Output Monitoring Cable 3.5mm-3.5mm Audio Output Cable 3.5MM-XLR Audio Output Cable 4. After the channel matched with the receiver, it can be used Please refer to screen operation instruction for channel matching.
Page 19
Screen Display and Operation Instruction Lavalier Transmitter Screen Display Instruction Signal Strength High Group A Normal recording Muting(Unlocking) Signal Strength Low Group B Muting Muting(Locking) Battery Level Group A/B Group A Channel Group A/B Audio dynamic display bar Channel Frequency Operation Instruction 1.
Page 20
A Group B Group Group A Group B 561.400MHz 2.Manually Adjust the Channel of Transmitter 2.1 Long press button to CH setting display page Group A CH11 2.2 Short press button to select the channel Group A CH45 533.500MHz 2.3 Short press button to confirm Group A CH45 533.500MHz...
3. MIC/LINE IN Input Mode Adjustment 3.1 Press button to ‘ Input Setting ’ display page Input Setting 3.2 Long press button to ‘ Input Setting ’ display page Input Setting 3.3 Press button to select ‘ Mic/ Line in ’ input mode Input Setting LINE IN 3.4 Short press...
‘ Low/High/OFF ’ Adjustment Low Cut Filter 4.1 Press button to ‘ Low Cut Filter ’ display page Low Cut Filter 4.2 Long press button to enter ‘ Low Cut Filter ’ display page Low Cut Filter Low/High/OFF ’ 4.3 Press button to select LCF ‘...
Page 23
5. Transmitting Signal Strength ‘ High/Low ’ Adjustment 5.1 Press button to “ RF Power Setting ” display page RF Power High 5.2 Long press button to enter ‘ RF Power Setting ’ display page RF Power High 5.3 Press button to adjust the transmitting signal strength RF Power 5.4 Short press...
Page 24
6. Muting Mode On/ Off 6.1 Press button to ‘ Muting ’ display page Muting Enable 6.2 Long press button to enter ‘ Muting ’ display page Muting Enable 6.3 Press button to select Muting mode on/ o Muting Disable 6.4 Short press button to confirm Muting...
Page 25
When set to ‘ Disable ’, the muting function cannot be used, the icon is: When set to ‘ Enable ’, the muting function works, the icon is: The muting mode can be controlled only when the screen is on, press any button to light the screen and then press the button to switch the muting mode.
Page 26
7. Backlight ‘ Lighting Time/Turn Off ’ Adjustment 8.1 Short Press button to ‘Backlight Mode’ display page Backlight 7.2 Long press button to enter ‘ Backlight Mode ’ display page Backlight 7.3 Short press button to adjust the backlight lighting time or you can turn it o for power saving Backlight 7.4 Short press...
8. System Language 8.1 Short press button to ‘ Language ’ display page Language(语言 ) English 8.2 Long press button to enter ‘ Language ’ display page Language(语言 ) English 8.3 Short press button to select language Language(语言 ) 简体中文 8.4 Short press button to confirm 语言...
Page 28
9. Reset to Defaults 9.1 Press button to ‘ Reset ’ display page Reset 9.2 Long press button to enter ‘ Reset ’ display page Reset 9.3 Short press button to select whether to restore factory Setting Reset 9.4 Short press button to confirm and restore factory setting Reset Reseting..
Page 29
10. Version 10.1 Press button to ‘ Version ’ display page to check the version Version X.X.X...
Page 30
Hand-held Transmitter Muting mode Screen Display Instruction Normal recording mode Battery Level Channel Group A/B Operation Instruction 1.Turn on and Muting Mode Switch 1.1 Long press switch button for 2 seconds to turn on or o 1.2 When the transmitter turned on, short press the button to select muting mode Normal recording...
Page 31
2. Pair Through Infrared Sync 2.1 Set the channel through infrared sync Channel Channel The hand-held transmitter defaults to channel B, and you can set the group and channel through the receiver (For example, If Group A of the receiver is used for the matching, after matched, it will be: Group A CHXX;...
Page 32
2.2 Function switch High Low cut adjustment switch RF-Low/ High...
Page 33
Receiver Screen Display Instruction Group A Signal Strength Display Bar Group B Signal Strength Display Bar Battery Level Group A Group B Group A Group B CH 41 CH 11 Channel of Group A Channel of Group B Group A transmitting battery Group B Transmitting battery Group A Receiving Audio Status Indication Group B Receiving Audio Status Indication...
Page 34
Group A Switch to A Group A turned on, CH 41 Group B turned o Group B Switch to B Group B turned on, CH 11 Group A turned o Group A Group B Switch to A/B CH 41 CH 11 Group A turned on, Group B turned on...
Page 35
2.Manually Adjust the Channel of Group A/ Group B 2.1 Long press button to ‘ CH ’ display page, short press again for Group A/Group B switch Group A Group B CH 41 CH 11 2.2 Short press button to select the group Group A Group B CH 45...
3. Audio Output Mode ‘Stereo/Mono’ Adjustment 3.1 Press button to ‘ Output Mode ’ display page Output Mode Mono 3.2 Long press button to ‘ Output Mode ’ display page Output Mode Mono 3.3 Press button to select ‘ Mono/ Stereo ’ Output Mode, Short press button to confirm Output Mode...
Page 37
4. Group A/B Function Setting 4.1 Press button to ‘ Setting ’ display page Setting Group A 4.2 Long press button to ‘ Setting ’ display page Setting Group A 4.3 Press button to select Group A/B to edit Setting Group B 4.4 Short press button to confirm...
Page 38
5. Group A/B Volume Adjustment 5.1 Short Press button to ‘ Volume ’ display page Group A Setting Volume 12 5.2 Long press button to enter ‘ Volume ’ display page Group A Setting Volume 12 5.3 Short Press button to adjust the volume Group A Setting Volume 15 5.4 Short press...
Page 39
6. Group A/B Automatic Channel Scan 6.1 Short Press button to ‘ Auto Scan ’ display page Group A Setting Auto scan CH63 6.2 Long press button to enter ‘ Auto Scan ’ display page, and short press button to select whether to auto scan Group A Setting Auto scan ? 6.3 Short press...
Page 40
7.Group A/B IR Sync 7.1 Short Press button to ‘ Group A/B Setting ’ display page Group A Setting Sync 7.2 Long press button to enter ‘ Group A/B Setting ’ display page Group A Setting Sync ? 7.3 Short press button to select whether to sync Group A Setting Sync ?
Page 41
8. Backlight ‘ Lighting Time/Turn Off ’ Adjustment 8.1 Short Press button to ‘ Backlight Mode ’ display page Backlight 8.2 Long press button to enter ‘ Backlight Mode ’ display page Backlight 8.3 Short press button to adjust the backlight lighting time or you can turn it o for power saving Backlight 8.4 Short press...
9. System Language 9.1 Short press button to ‘ Language ’ display page Language(语言) English 9.2 Long press button to enter ‘ Language ’ display page Language(语言) English 9.3 Short press button to select language Language(语言) 简体中文 9.4 Short press button to confirm 语言(Language) 简体中文...
Page 43
10. Reset to Defaults 10.1 Press button to ‘ Reset ’ display page Reset 10.2 Long press button to enter ‘ Reset ’ display page Reset 10.3 Short press button to select whether to restore factory Setting Reset 10.4 Short press button to confirm and restore factory setting Reset Reseting..
Page 44
11. Version 11.1 Press button to ‘ Version ’ display page to check the version Version X.X.X...
