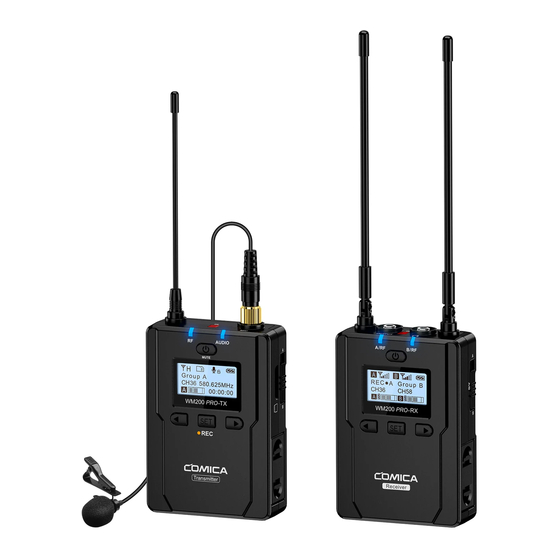

CVM-WM200
UHF Wireless Microphone
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVM-WM200 and is the answer not in the manual?

Questions and answers

Related Manuals for Comica CVM-WM200

Summary of Contents for Comica CVM-WM200

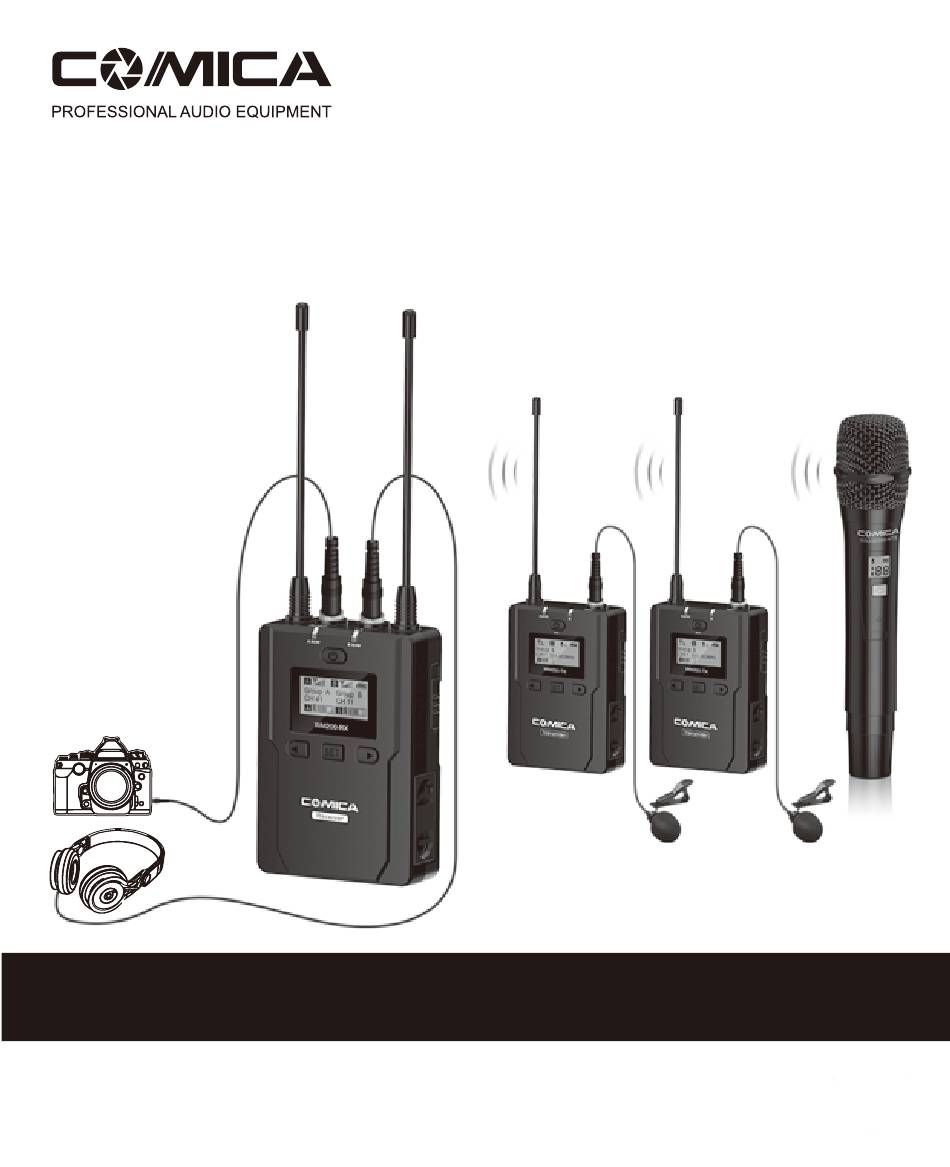

  • Page 1 CVM-WM200 UHF Wireless Microphone USER MANUAL...
  • Page 3 Foreword Thanks for purchasing COMICA WM200 UHF wireless microphone; WM200 is an all-metal wireless microphone with dual-transmitter triggered by one receiver, with two AA batteries, it utilizes UHF wireless FM technology and LCD high-resolution lattice screen, 16-level adjustable volume, and integrated into LCF （Low cut filter) , Auto-scanning, Auto IR Channel-match, Stereo / Mono...
  • Page 4 Notice Transmitter should be more than 20cm from Receiver, when the distance is less than 20cm, Receiver’s wireless signal receiving part will take protect action to shut down the receiving of wireless signal, then audio may be intermittent, which is normal;...
  • Page 5 Multiple Selections: WM200(A) = 2TX + RX WM200(B) = TX + HTX + RX WM200(C) = TX + RX WM200(D) = HTX + RX...
  • Page 6 Accessories: 3.5mm Mic Audio Input Cable 3.5mm-3.5mm Audio Output Cable 3.5mm-XLR Audio Output Cable Belt Clip Hot-shoe Mount Wind Muff Portable Box User Manual Warranty Card The accessories of each combination include： WM200(A)= x2 + x3 + x2 + WM200(B)= x2 + WM200(C)= x2 +...
  • Page 7 Components and Instruction Components Lavalier Transmitter (TX) Antenna Matching Status Indicator Light / IR Screen Sound Status Indicator Light Power / Muting Button LCD Screen Function Selection Button - SET Function Menu Function Selection Button + MIC / LINE IN External Input Group Selection Switch Battery Tray 1/4 Mounting Hole...
  • Page 8 Hand-held Transmitter (HTX) Microphone LCD Display Power / Muting Button IR Screen Low cut/Normal Audio Switch Signal Strength “High/Low” Switch High...
  • Page 9 Receiver (RX) Group A Antenna Group B Working Status Indicator Light Group A Working Status Indicator Light Power Switch LCD Screen Function Selection Button - SET Function Menu Function Selection Button + 3.5mm Audio Output Socket 3.5mm Monitoring Socket Group B Antenna Group Selection Switch Battery Tray Belt Clip...
  • Page 10 Function Button Instruction Lavalier Long Press Power On / Off Transmitter Muting Mode（This function is only Power / Muting Button / Receiver for transmitter, when the mute Short Press function is turned on and the screen is lighted up） Long Press Enter the function adjustment menu SET Function Menu 1.Confirm the selected function Short Press...
  • Page 11 Low cut function: Appropriately remove the low frequency part of the sound, reduce the ambient noise of the low frequency part, to make sound more clean and clear. Indicator Light Instruction Normal Recording Status （ This state is only for the transmitter, when the Green Light Keeps On channel matches...
  • Page 12 Installation and Usage Lavalier Transmitter 1. Install two AA batteries into the battery tray according to the positive and negative electrode...
  • Page 13 2. Insert the 3.5mm audio input line into MIC socket 3. Long press the power button to turn on the transmitter...
  • Page 14 4. Target the MIC to the audio source and check the working status according to the volume indicator on the screen Group A Audio Dynamic Display Bar 5. Connect the belt clip to the connection hole 6. After the channel matching with the receiver, it can be used Please refer to screen operation instruction for channel matching.
  • Page 15 Hand-held Transmitter 1. Install two AA batteries into the battery tray according to the positive and negative electrode 2.Long press the button switch to turn on the hand-held transmitter 3. After the channel matching with the receiver, it can be used Please refer to screen operation instruction for channel matching.
  • Page 16 Receiver 1. Install two AA batteries into the battery tray according to the positive and negative electrode...
  • Page 17 2. Connect the receiver to the video device through the hot-shoe 3. Connect one end of the 3.5mm-3.5mm audio OUTPUT cable to the OUTPUT port of WM200RX and another end to the AUDIO INPUT port of the camera or camcorder.Insert the headphone into the 3.5mm monitoring port for real-time monitoring and then long press power button to trun on the receiver.
  • Page 18 3.5mm Audio Output Monitoring Line 3.5mm-3.5mm Audio Output Line 3.5MM-XLR Audio Output Line 4. After the channel matching with the receiver, it can be used Please refer to screen operation instruction for channel matching.
  • Page 19 Screen Display and Operation Instruction Lavalier Transmitter Screen Display Instruction Signal Strength High Group A Normal recording Muting（Unlocking） Muting（Locking） Signal Strength Low Group B Muting Power Indication Group A/B Group A Channel Group A/B Audio dynamic display bar Channel Frequency Operation Instruction 1.
  • Page 20 A Group B Group Group A Group B 2.Manually Adjust the Channel of Transmitter 2.1 Long press button to CH setting display page Group A CH11 2.2 Short press button to select the channel Group A CH45 533.500MHz 2.3 Short press button to confirm Group A CH45 533.500MHz...
  • Page 21 3. MIC/LINE IN Input Mode Adjustment 3.1 Press button to ‘ Input Setting ’ display page Input Setting 3.2 Long press button to ‘ Input Setting ’ display page Input Setting 3.3 Press button to select ‘ Mic/ Line in ’ input mode Input Setting LINE IN 3.4 Short press...
  • Page 22 ‘ Low/High/OFF ’ Adjustment Low Cut Filter 4.1 Press button to ‘ Low Cut Filter ’ display page Low Cut Filter 4.2 Long press button to enter ‘ Low Cut Filter ’ display page Low Cut Filter Low/High/OFF ’ 4.3 Press button to select LCF ‘...
  • Page 23 5. Transmitting Signal Strength ‘ High/Low ’ Adjustment 5.1 Press button to “ RF Power Setting ” display page RF Power High 5.2 Long press button to enter ‘ RF Power Setting ’ display page RF Power High 5.3 Press button to adjust the transmitting signal strength RF Power 5.4 Short press...
  • Page 24 6. Muting Mode On/ Off 6.1 Press button to ‘ Muting ’ display page Muting Enable 6.2 Long press button to enter ‘ Muting ’ display page Muting Enable 6.3 Press button to select Muting mode on/ off Muting Disable 6.4 Short press button to confirm Muting...
  • Page 25 When set to ‘ Disable ’, the muting function cannot be used, the icon is: When set to ‘ Enable ’, the muting function works, the icon is: The muting mode can be controlled only when the screen is on, press any button to light the screen and then press the button to switch the muting mode.
  • Page 26 7. Backlight ‘ Lighting Time/Turn Off ’ Adjustment 8.1 Short Press button to ‘Backlight Mode’ display page Backlight 7.2 Long press button to enter ‘ Backlight Mode ’ display page Backlight 7.3 Short press button to adjust the backlight lighting time or you can turn it off for power saving Backlight 7.4 Short press...
  • Page 27 8. System Language 8.1 Short press button to ‘ Language ’ display page Language(语言 ) English 8.2 Long press button to enter ‘ Language ’ display page Language(语言 ) English 8.3 Short press button to select language Language(语言 ) 简体中文 8.4 Short press button to confirm 语言...
  • Page 28 9. Reset to Defaults 9.1 Press button to ‘ Reset ’ display page Reset 9.2 Long press button to enter ‘ Reset ’ display page Reset 9.3 Short press button to select whether to restore factory Settings Reset 9.4 Short press button to confirm and restore factory setting Reset Reseting..
  • Page 29 10. Version 10.1 Press button to ‘ Version ’ display page to check the version Version 3.0.2...
  • Page 30 Hand-held Transmitter Muting mode Screen Display Instruction Normal recording mode Power Indication Channel Group A/B Operation Instruction 1.Turn on and Muting Mode Switch 1.1 Long press switch button for 2 seconds to turn on or off 1.2 When it’s turned on, short press the button to select muting mode Normal recording...
  • Page 31 2. Set the Channel Through Infrared Sync 2.1 Set the channel through infrared sync Channel Channel The hand-held transmitter defaults to channel B, and you can set the group and channel through the receiver (For example, If Group A of the receiver is used for the matching, after matching, it will be: Group A CHXX;...
  • Page 32 2.2 Function switch High Low cut adjustment switch RF-Low/ High...
  • Page 33 Receiver Screen Display Instruction Group A Signal Strength Display Bar Group B Signal Strength Display Bar Power Indication Group A Group B Group A Group B CH 41 CH 11 Channel of Group A Channel of Group B Group A transmitting power Group B Transmitting power Group A Receiving Audio Status Indication Group B Receiving Audio Status Indication...
  • Page 34 Group A Switch to A Group A turned on, CH 41 Group B turned off Group B Switch to B Group B turned on, CH 11 Group A turned off Group A Group B Switch to A/B CH 41 CH 11 Group A turned on, Group B turned on...
  • Page 35 2.Manually Adjust the Channel of Group A/ Group B 2.1 Long press button to ‘ CH ’ display page, short press again for Group A/Group B switch Group A Group B CH 41 CH 11 2.2 Short press button to select the group Group A Group B CH 45...
  • Page 36 3. Audio Output Mode ‘Stereo/Mono’ Adjustment 3.1 Press button to ‘ Output Mode ’ display page Output Mode Mono 3.2 Long press button to ‘ Output Mode ’ display page Output Mode Mono 3.3 Press button to select ‘ Mono/ Stereo ’ Output Mode, Short press button to confirm Output Mode...
  • Page 37 4. Group A/B Function Setting 4.1 Press button to ‘ Setting ’ display page Setting Group A 4.2 Long press button to ‘ Setting ’ display page Setting Group A 4.3 Press button to select Group A/B to edit Setting Group B 4.4 Short press button to confirm...
  • Page 38 5. Group A/B Volume Adjustment 5.1 Short Press button to ‘ Volume ’ display page Group A Setting Volume 12 5.2 Long press button to enter ‘ Volume ’ display page Group A Setting Volume 12 5.3 Short Press button to adjust the volume Group A Setting Volume 15 5.4 Short press...
  • Page 39 6. Group A/B Automatic Channel Scan 6.1 Short Press button to ‘ Auto Scan ’ display page Group A Setting Auto scan CH63 6.2 Long press button to enter ‘ Auto Scan ’ display page, and short press button to select whether to auto scan Group A Setting Auto scan ? 6.3 Short press...
  • Page 40 7.Group A/B IR Sync 7.1 Short Press button to ‘ Group A/B Setting ’ display page Group A Setting Sync 7.2 Long press button to enter ‘ Group A/B Setting ’ display page Group A Setting Sync ? 7.3 Short press button to select whether to sync Group A Setting Sync ?
  • Page 41 8. Backlight ‘ Lighting Time/Turn Off ’ Adjustment 8.1 Short Press button to ‘ Backlight Mode ’ display page Backlight 8.2 Long press button to enter ‘ Backlight Mode ’ display page Backlight 8.3 Short press button to adjust the backlight lighting time or you can turn it off for power saving Backlight 8.4 Short press...
  • Page 42 9. System Language 9.1 Short press button to ‘ Language ’ display page Language(语言) English 9.2 Long press button to enter ‘ Language ’ display page Language(语言) English 9.3 Short press button to select language Language(语言) 简体中文 9.4 Short press button to confirm 语言(Language) 简体中文...
  • Page 43 10. Reset to Defaults 10.1 Press button to ‘ Reset ’ display page Reset 10.2 Long press button to enter ‘ Reset ’ display page Reset 10.3 Short press button to select whether to restore factory Settings Reset 10.4 Short press button to confirm and restore factory setting Reset Reseting..
  • Page 44 11. Version 11.1 Press button to ‘ Version ’ display page to check the version Version 3.0.2...
  • Page 45 Specification Lavalier Transmitter TX Signal / Noise >65dB Antenna 1/4 Wavelength Wire Antenna Stray Radiation <-60dBc Sound Delay <20ms Audio Distortion <0.5% Battery AA Batteries x 2pcs Dimension 84 x 63.5 x 23mm Operating Temperature 0℃ ~ 50℃ Storage Temperature -20℃...
  • Page 46 Hand-held Transmitter HTX Signal / Noise >65dB Antenna PCB Antenna Stray Radiation <-60dBc Sound Delay <20ms Audio Distortion <0.5% Battery AA Batteries x 2pcs Dimension Φ53.5(MAX) x 253mm Operating Temperature 0℃ ~ 50℃ Storage Temperature -20℃ ~ 60℃...
  • Page 47 Receiver RX Signal / Noise >65dB Antenna 1/4 Wavelength Wire Antenna Receiving Sensitivity -95dBm Stray Radiation <-60dBc Sound Delay <20ms Audio Distortion <0.5% Battery AA Batteries x 2pcs Dimension 84 x 63.5 x 23mm Operating Temperature 0℃ ~ 50℃ Storage Temperature -20℃...
  • Page 48 Email: support@comica-audio.com...
